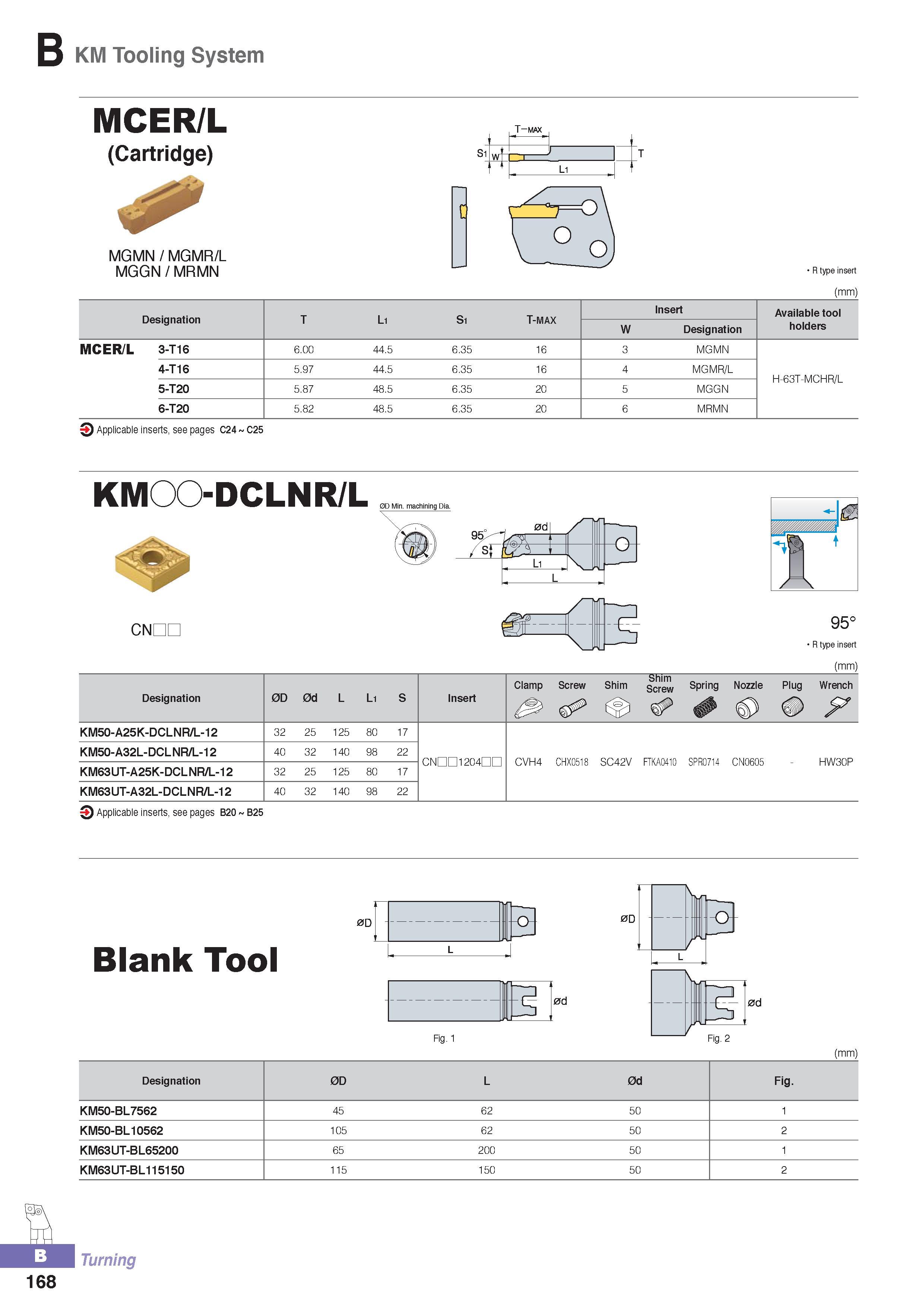

KM Tooling System MCER/L (Cartridge) MGMN / MGMR/L MGGN/MRMN R type insert (mm) Designation T L1 S1 T-max Insert Available tool W Designation holders MCER/L 3-T16 6.00 44.5 6.35 16 3 MGMN 4-T16 5.97 44.5 6.35 16 4 MGMR/L H-63T-MCHR/L 5-T20 5.87 48.5 6.35 20 5 MGGN 6-T20 5.82 48.5 6.35 20 6 MRMN 3 Applicable inserts, see pages C24 C25 KM -DCLNR/L CNDC 0D Min. machining Dia. j t Shim Screw Spring Nozzle Plug 95° R type insert (mm) Designation 0D 0d L Insert Clamp Screw Shim Wrench KM50-A25K-DCLNR/L-12 KM50-A32L-DCLNR/L-12 KM63UT-A25K-DCLNR/L-12 KM63UT-A32L-DCLNR/L-12 32 25 125 80 17 40 32 140 98 22 32 25 125 80 17 CNDD1204DC CVH4 CHX0518 SC42V FTKA0410 SPR0714 CN0605 HW30P 40 32 140 98 22 3 Applicable inserts, see pages B20 B25 S Blank Tool 0D Fig. 1 (mm) Designation 0D L 0d Fig. KM50-BL7562 45 62 50 1 KM50-BL10562 105 62 50 2 KM63UT-BL65200 65 200 50 1 KM63UT-BL115150 115 150 50 2 168 Turning
