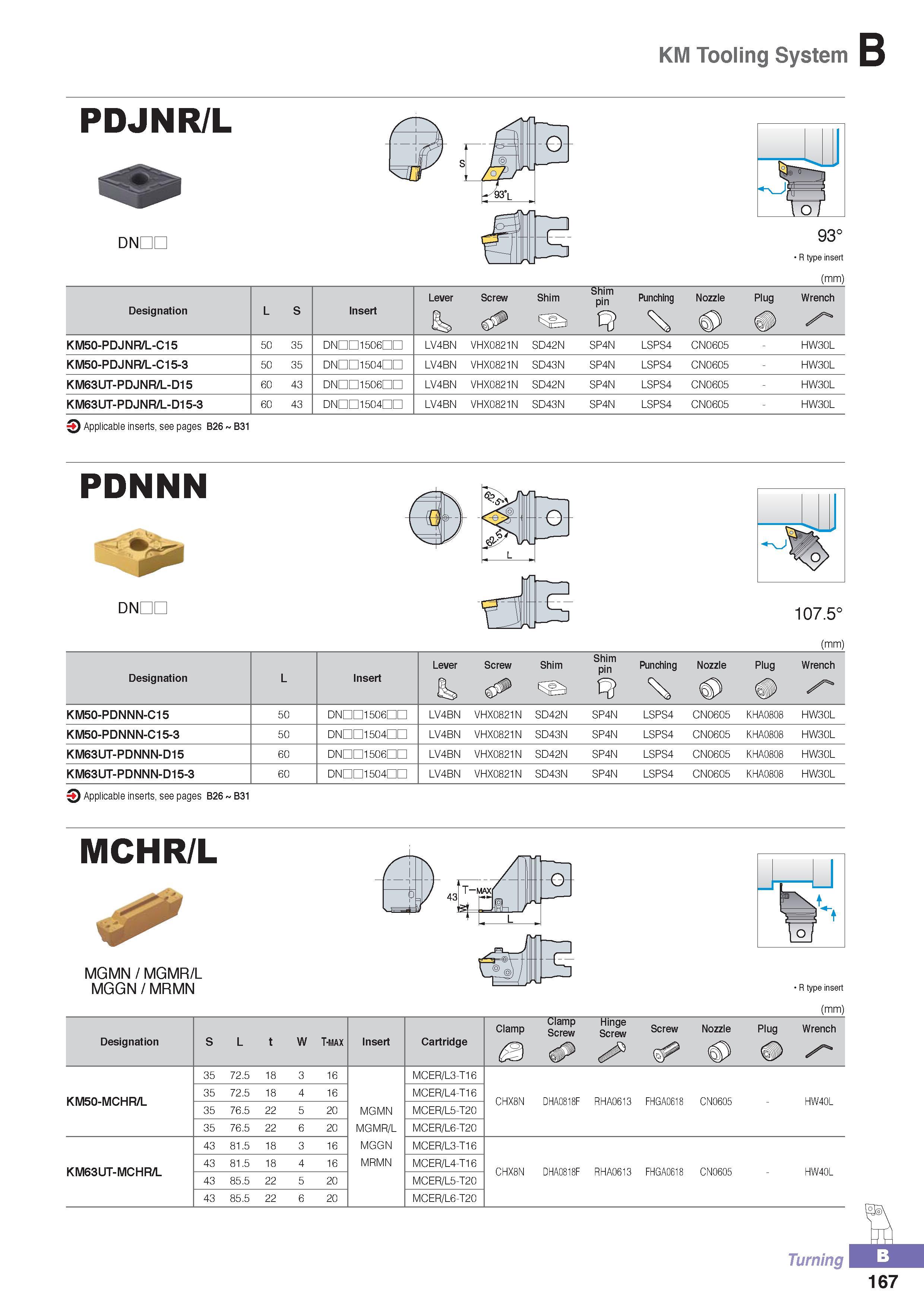

KM Tooling System PDJNR/L DNDC o_ 93° R type insert (mm) Designation L S Insert Lever Screw Shim Shim pin Punching Nozzle Plug Wrench y KM50-PDJNR/L-C15 50 35 DNDD1506nn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 - HW30L KM50-PDJNR/L-C15-3 50 35 DNDDl504nn LV4BN VHX0821N SD43N SP4N LSPS4 CN0605 - HW30L KM63UT-PDJNR/L-D15 60 43 DNDD1506nn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 - HW30L KM63UT-PDJNR/L-D15-3 60 43 DNDD1504nn LV4BN VHX0821N SD43N SP4N LSPS4 CN0605 - HW30L 3 Applicable inserts, see pages B26 B31 PDNNN DNDC 107.5° (mm) Designation L Insert Lever Screw Shim Shim pin Punching Nozzle Plug Wrench KM50-PDNNN-C15 50 DNDD1506nn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 KHA0808 HW30L KM50-PDNNN-C15-3 50 D ni504DD LV4BN VHX0821N SD43N SP4N LSPS4 CN0605 KHA0808 HW30L KM63UT-PDNNN-D15 60 DNDD1506nn LV4BN VHX0821N SD42N SP4N LSPS4 CN0605 KHA0808 HW30L KM63UT-PDNNN-D15-3 60 DNDD1504nn LV4BN VHX0821N SD43N SP4N LSPS4 CN0605 KHA0808 HW30L 3 Applicable inserts, see pages B26 B31 MCHR/L 43 y j, rn r l MGMN / MGMR/L MGGN/MRMN R type insert (mm) Designation S L t W T-max Insert Cartridge Clamp Clamp Screw Hinge Screw Screw Nozzle Plug Wrench 35 72.5 18 3 16 MCER/L3-T16 KM50-MCHR/L 35 72.5 18 4 16 MCER/L4-T16 CHX8N DHA0818F RHA0613 FHGA0618 CN0605 HW40L 35 76.5 22 5 20 MGMN MCER/L5-T20 35 76.5 22 6 20 MGMR/L MCER/L6-T20 43 81.5 18 3 16 MGGN MCER/L3-T16 KM63UT-MCHR/L 43 81.5 18 4 16 MRMN MCER/L4-T16 CHX8N DHA0818F RHA0613 FHGA0618 CN0605 HW40L 43 85.5 22 5 20 MCER/L5-T20 43 85.5 22 6 20 MCER/L6-T20 Turning 167
