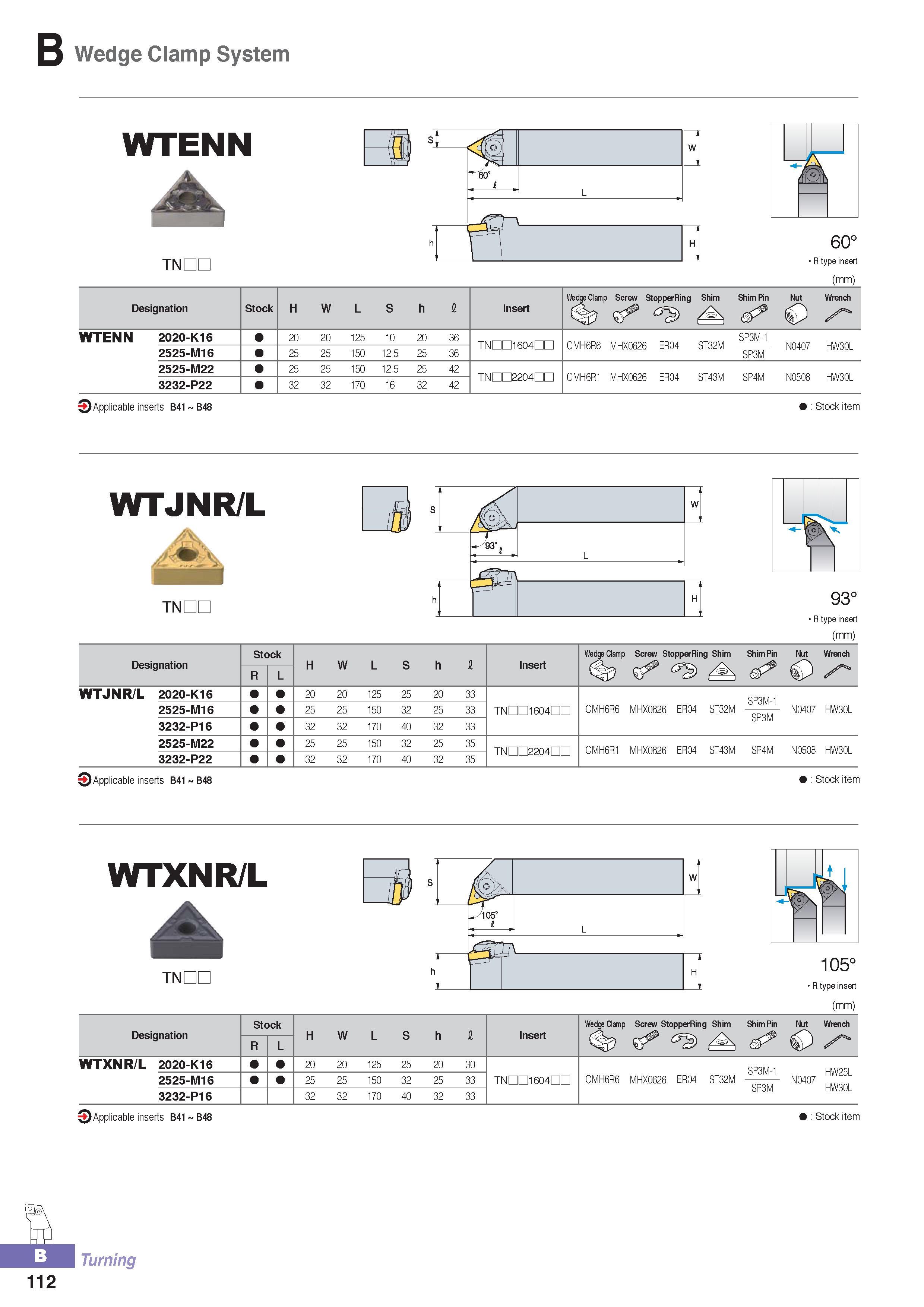

B Wedge Clamp System WTENN TNDE 60° R type insert (mm) Designation Stock W Insert Wedge Clamp Screw StopperRing Shim WTENN 2020-K16 20 20 125 10 20 36 2525-M16 25 25 150 12.5 25 36 TNDD1604DE CMH6R6 MHX0626 ER04 ST32M SP3M-1 SP3M 2525-M22 25 25 150 12.5 25 42 3232-P22 32 32 170 16 32 42 TNDD2204DE CMH6R1 MHX0626 ER04 ST43M SP4M N0407 HW30L N0508 HW30L O Applicable inserts B41 B48 Stock item WTJNR/L TNDC 93° R type insert (mm) Designation Stock H W L S h i Insert Wedge Clamp Screw StopperRing Shim Shim Pin Nut Wrench Q R L WTJNR/L 2020-K16 20 20 125 25 20 33 TNnni604nn SP3M-1 CMH6R6 MHX0626 ER04 ST32M N0407 HW30L SP3M 2525-M16 25 25 150 32 25 33 3232-P16 32 32 170 40 32 33 2525-M22 25 25 150 32 25 35 TNnn2204nn CMH6R1 MHX0626 ER04 ST43M SP4M N0508 HW30L 3232-P22 32 32 170 40 32 35 O Applicable inserts B41 B48 Stock item Shim Pin Nut L S h WTXNR/L TNDC 105° R type insert (mm) Designation Stock H W L S h i Insert Wedge Clamp Screw StopperRing Shim Shim Pin Nut Wrench & > Q R L WTXNR/L 2020-K16 20 20 125 25 20 30 TNnni604nn SP3M-1 HW25L CMH6R6 MHX0626 ER04 ST32M N0407 SP3M HW30L 2525-M16 25 25 150 32 25 33 3232-P16 32 32 170 40 32 33 3 Applicable inserts B41 B48 Stock item Turning 112
