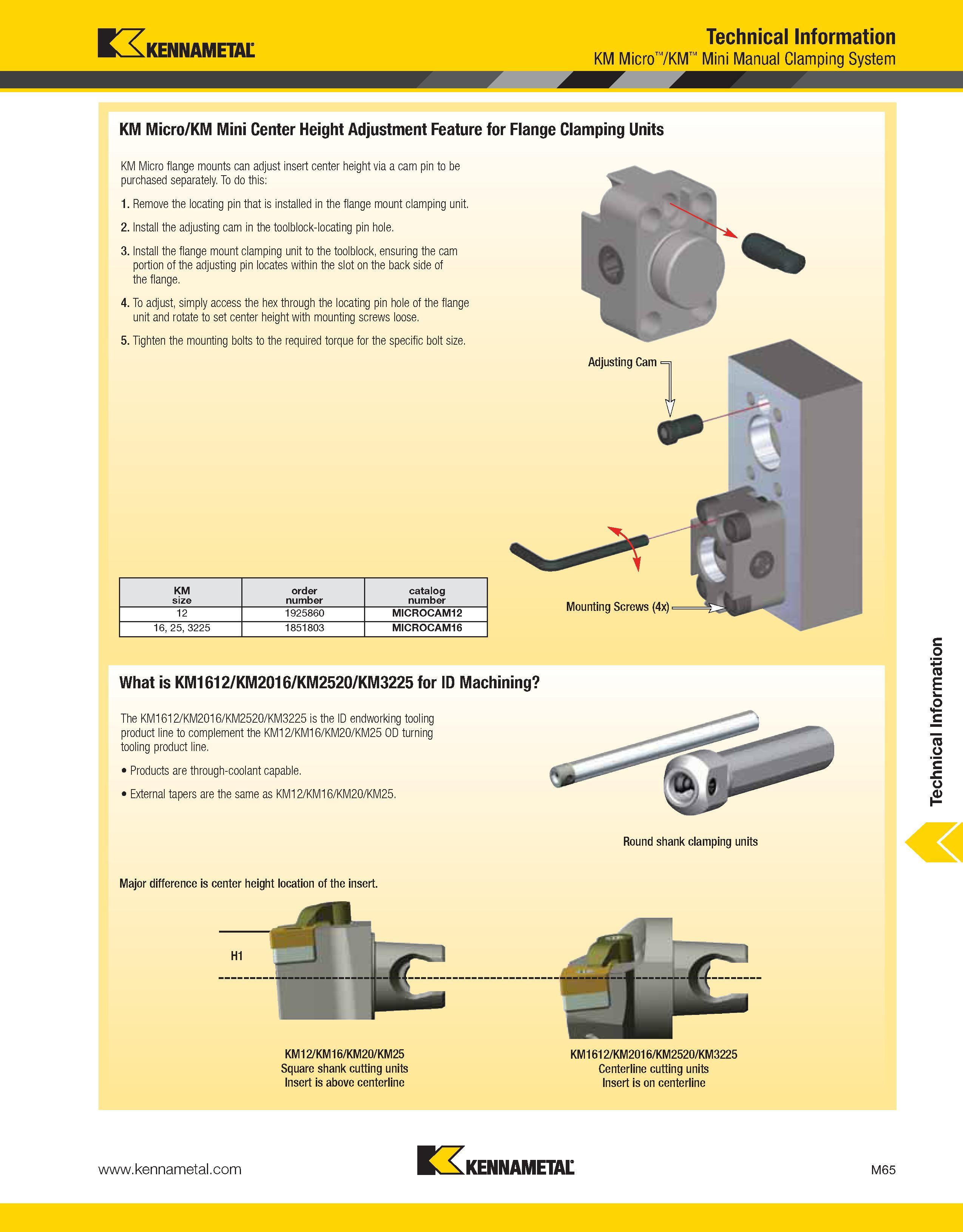

KM Micro flange mounts can adjust insert center height via a cam pin to be purchased separately. To do this: 1. Remove the locating pin that is installed in the flange mount clamping unit. 2. Install the adjusting cam in the toolblock-locating pin hole. 3. Install the flange mount clamping unit to the toolblock, ensuring the cam portion of the adjusting pin locates within the slot on the back side of the flange. 4. To adjust, simply access the hex through the locating pin hole of the flange unit and rotate to set center height with mounting screws loose. 5. Tighten the mounting bolts to the required torque for the specific bolt size. KM order catalog size number number 12 1925860 MICROCAM12 16, 25, 3225 1851803 MICROCAM16 Mounting Screws (4x) What is KM1612/KM2016/KM2520/KM3225 for ID Machining The KM1612/KM2016/KM2520/KM3225 is the ID endworking tooling product line to complement the KM12/KM16/KM20/KM25 OD turning tooling product line. Products are through-coolant capable. External tapers are the same as KM12/KM16/KM20/KM25. Major difference is center height location of the insert. KM12/KM16/KM20/KM25 Square shank cutting units Insert is above centerline Round shank clamping units KM1612/KM2016/KM2520/KM3225 Centerline cutting units Insert is on centerline Kennametal M65 Technical Information Kennametal KM Micro /KM A Technical Information Mini Manual Clamping System KM Micro/KM Mini Center Height Adjustment Feature for Flange Clamping Units
