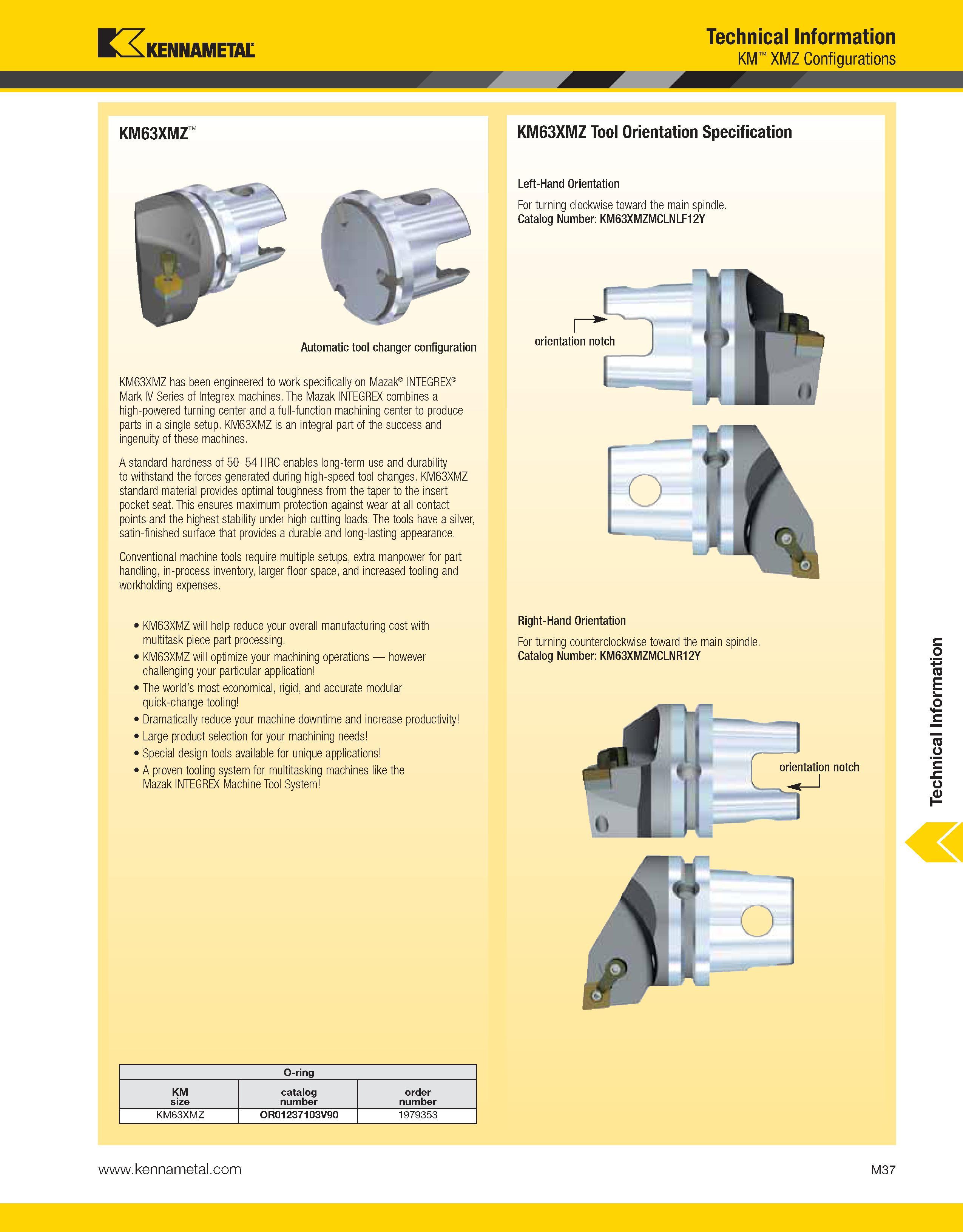

Kennametal Technical Information KM XMZ Configurations KM63XMZ Automatic tool changer configuration KM63XMZ has been engineered to work specifically on Mazak INTEGREX Mark IV Series of Integrex machines. The Mazak INTEGREX combines a high-powered turning center and a full-function machining center to produce parts in a single setup. KM63XMZ is an integral part of the success and ingenuity of these machines. A standard hardness of 50-54 HRC enables long-term use and durability to withstand the forces generated during high-speed tool changes. KM63XMZ standard material provides optimal toughness from the taper to the insert pocket seat. This ensures maximum protection against wear at all contact points and the highest stability under high cutting loads. The tools have a silver, satin-finished surface that provides a durable and long-lasting appearance. Conventional machine tools require multiple setups, extra manpower for part handling, in-process inventory, larger floor space, and increased tooling and workholding expenses. KM63XMZ will help reduce your overall manufacturing cost with multitask piece part processing. KM63XMZ will optimize your machining operations however challenging your particular application The world’s most economical, rigid, and accurate modular quick-change tooling Dramatically reduce your machine downtime and increase productivity Large product selection for your machining needs Special design tools available for unique applications A proven tooling system for multitasking machines like the Mazak INTEGREX Machine Tool System O-ring KM catalog order size number number KM63XMZ OR01237103V90 1979353 KM63XMZ Tool Orientation Specification Left-Hand Orientation For turning clockwise toward the main spindle. Catalog Number: KM63XMZMCLNLF12Y orientation notch Right-Hand Orientation For turning counterclockwise toward the main spindle. Catalog Number: KM63XMZMCLNR12Y orientation notch M37 Technical Information
