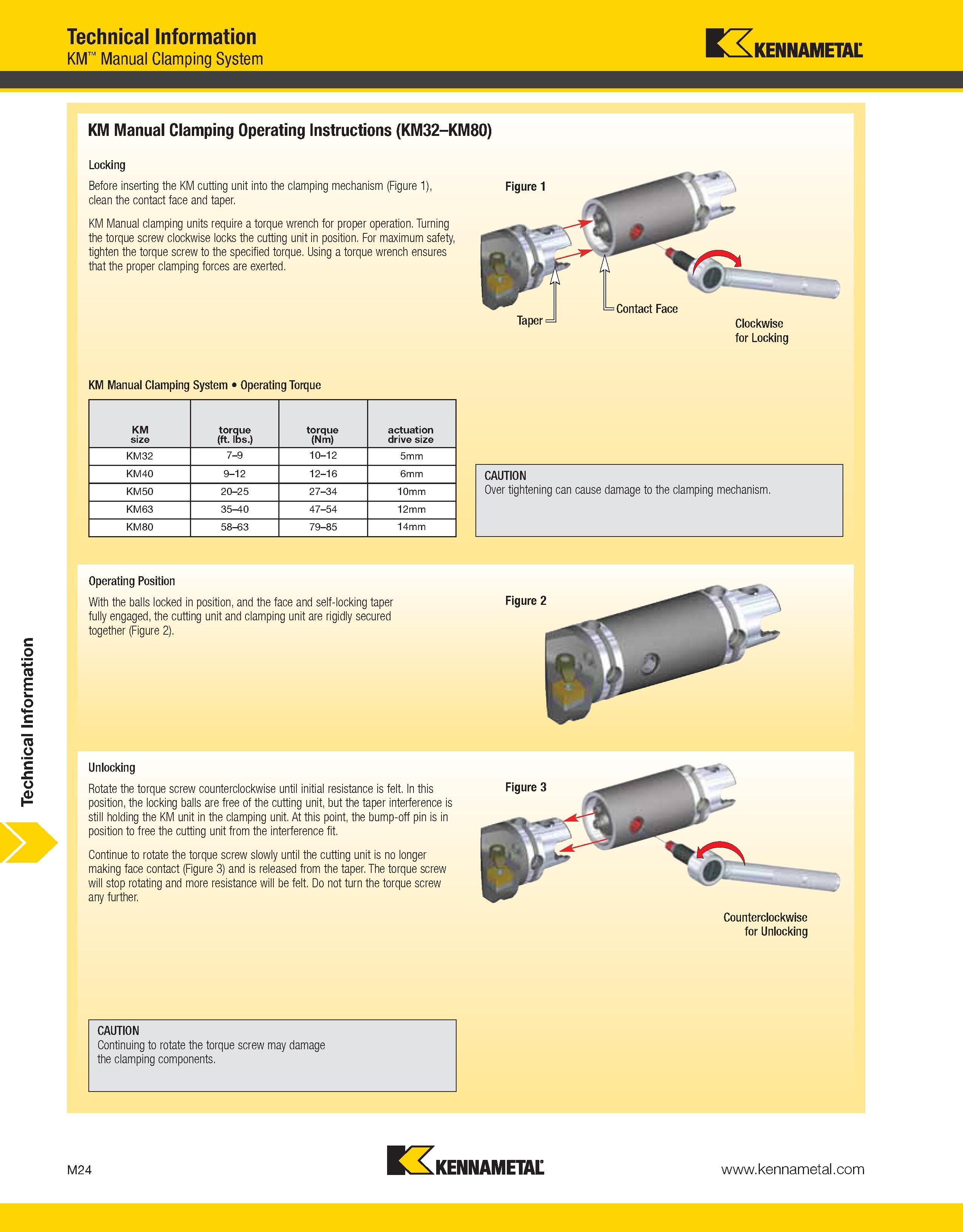

Technical Information Technical Information KM Manual Clamping System Kennametal KM Manual Clamping Operating Instructions (KM32-KM80) Locking Before inserting the KM cutting unit into the clamping mechanism (Figure 1), clean the contact face and taper. KM Manual clamping units require a torque wrench for proper operation. Turning the torque screw clockwise locks the cutting unit in position. For maximum safety, tighten the torque screw to the specified torque. Using a torque wrench ensures that the proper clamping forces are exerted. Figure 1 Taper Clockwise for Locking KM Manual Clamping System Operating Torque KM size torque (ft. lbs.) torque (Nm) actuation drive size KM32 7-9 10-12 5mm KM40 9-12 12-16 6mm KM50 20-25 27-34 10mm KM63 35-40 47-54 12mm KM80 58-63 79-85 14mm CAUTION Over tightening can cause damage to the clamping mechanism. Operating Position With the balls locked in position, and the face and self-locking taper fully engaged, the cutting unit and clamping unit are rigidly secured together (Figure 2). Unlocking Rotate the torque screw counterclockwise until initial resistance is felt. In this position, the locking balls are free of the cutting unit, but the taper interference is still holding the KM unit in the clamping unit. At this point, the bump-off pin is in position to free the cutting unit from the interference fit. Continue to rotate the torque screw slowly until the cutting unit is no longer making face contact (Figure 3) and is released from the taper. The torque screw will stop rotating and more resistance will be felt. Do not turn the torque screw any further. Counterclockwise for Unlocking CAUTION Continuing to rotate the torque screw may damage the clamping components. M24 Kennametal
