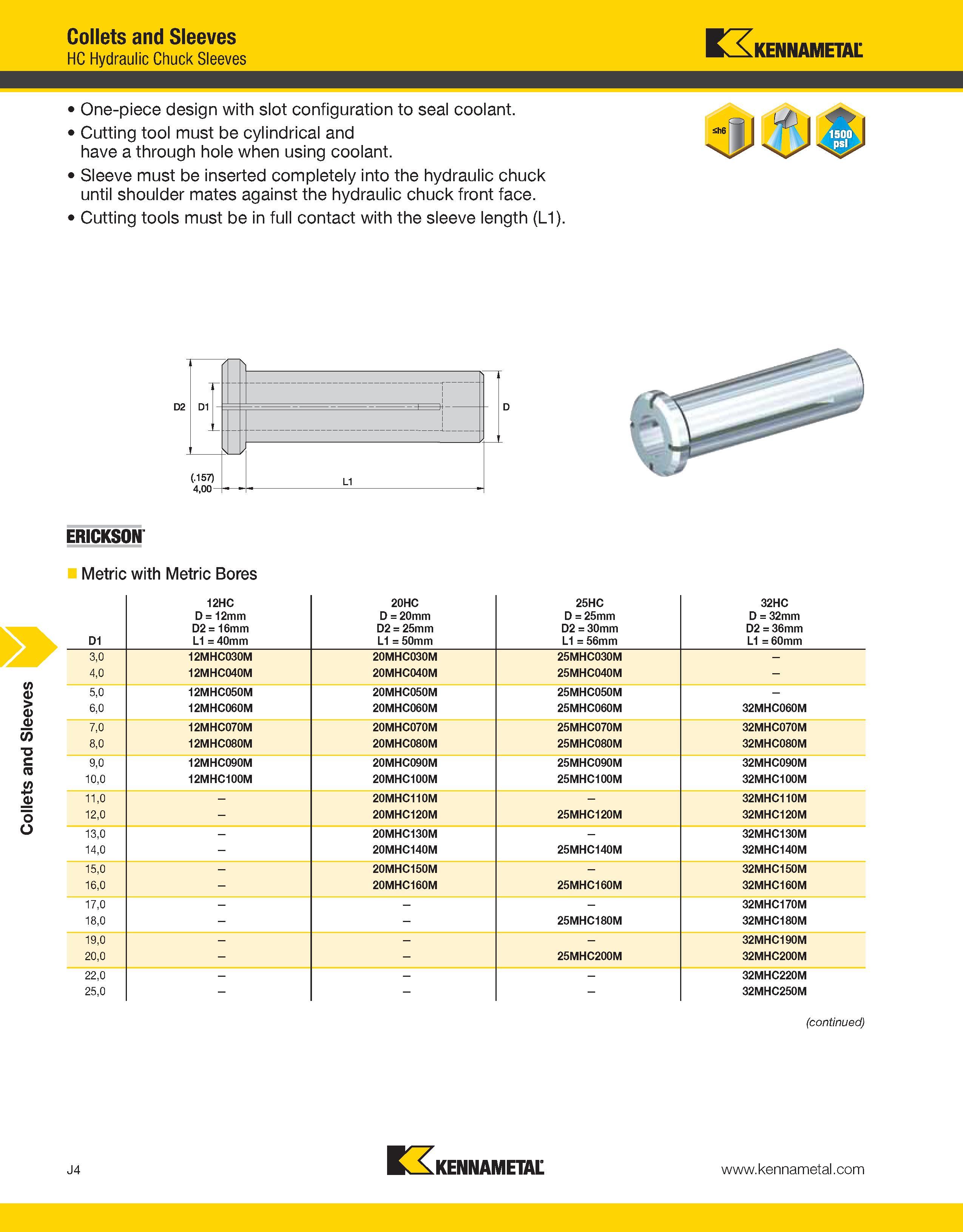

Collets and Sleeves Collets and Sleeves HC Hydraulic Chuck Sleeves Kennametal One-piece design with slot configuration to seal coolant. Cutting tool must be cylindrical and have a through hole when using coolant. Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face. Cutting tools must be in full contact with the sleeve length (L1). ERICKSON Metric with Metric Bores D1 12HC D = 12mm D2 = 16mm L1 = 40mm 20HC D = 20mm D2 = 25mm L1 = 50mm 25HC D = 25mm D2 = 30mm L1 = 56mm 32HC D = 32mm D2 = 36mm L1 = 60mm 3,0 12MHC030M 20MHC030M 25MHC030M - 4,0 12MHC040M 20MHC040M 25MHC040M - 5,0 12MHC050M 20MHC050M 25MHC050M - 6,0 12MHC060M 20MHC060M 25MHC060M 32MHC060M 7,0 12MHC070M 20MHC070M 25MHC070M 32MHC070M 8,0 12MHC080M 20MHC080M 25MHC080M 32MHC080M 9,0 12MHC090M 20MHC090M 25MHC090M 32MHC090M 10,0 12MHC100M 20MHC100M 25MHC100M 32MHC100M 11,0 - 20MHC110M - 32MHC110M 12,0 - 20MHC120M 25MHC120M 32MHC120M 13,0 - 20MHC130M - 32MHC130M 14,0 - 20MHC140M 25MHC140M 32MHC140M 15,0 - 20MHC150M - 32MHC150M 16,0 - 20MHC160M 25MHC160M 32MHC160M 17,0 - - - 32MHC170M 18,0 - - 25MHC180M 32MHC180M 19,0 - - - 32MHC190M 20,0 - - 25MHC200M 32MHC200M 22,0 - - - 32MHC220M 25,0 - - - 32MHC250M (continued) J4 n, KENNAMETAL
