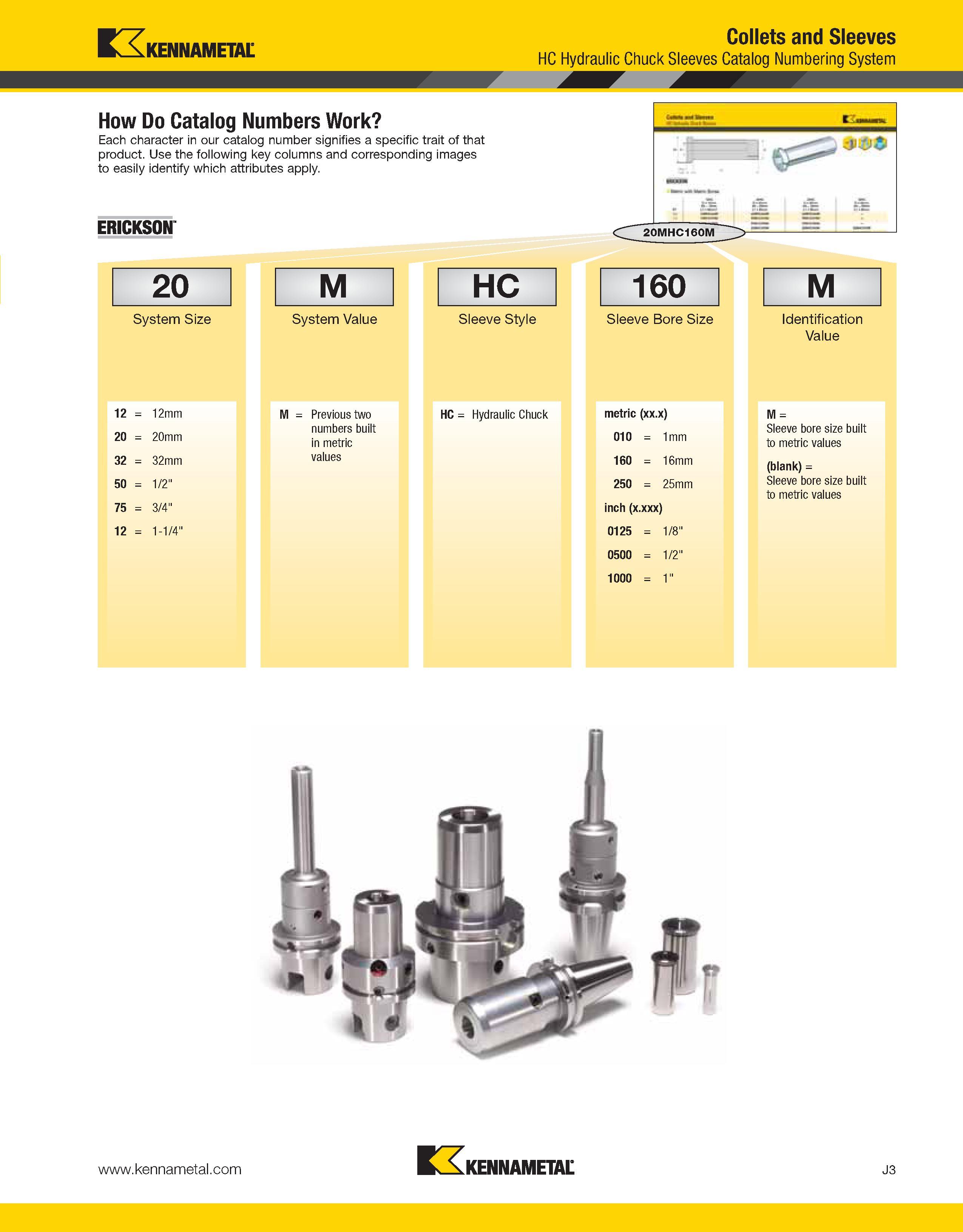

Kennametal How Do Catalog Numbers Work Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. ERICKSON Collets and Sleeves HC Hydraulic Chuck Sleeves Catalog Numbering System 20 System Size 12 = 12mm 20 = 20mm 32 = 32mm 50 = 102" 75 = 304" 12 = 1-104" M System Value M = Previous two numbers built in metric values HC Sleeve Style 160 Sleeve Bore Size HC = Hydraulic Chuck metric (xx.x) 010 = 1mm 160 = 16mm 250 = 25mm inch (x.xxx) 0125 = 108" 0500 = 102" 1000 = 1" M Identification Value M = Sleeve bore size built to metric values (blank) = Sleeve bore size built to metric values Kennametal J3
