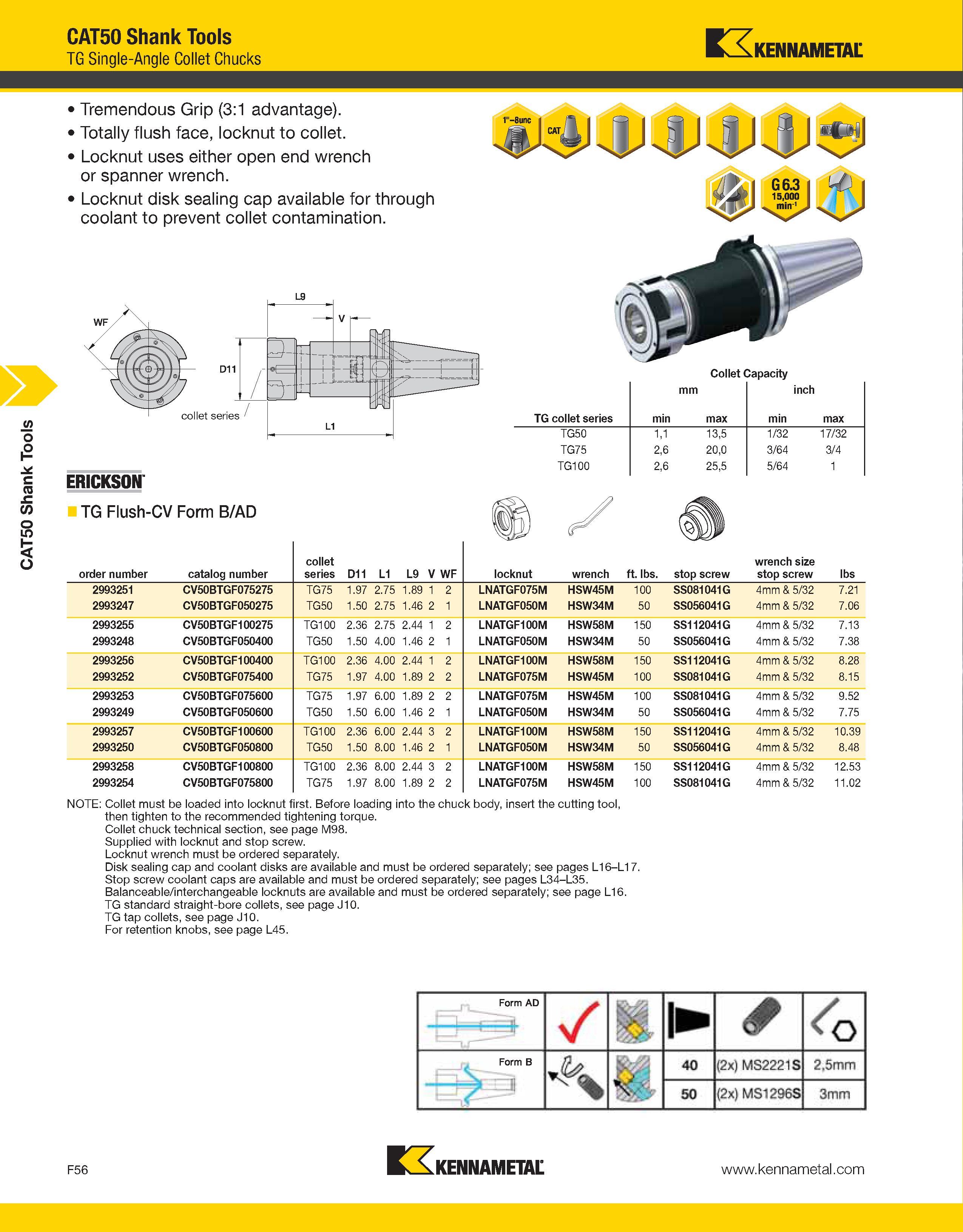

CAT50 Shank Tools CAT50 Shank Tools TG Single-Angle Collet Chucks Kennametal Tremendous Grip (3:1 advantage). Totally flush face, locknut to collet. Locknut uses either open end wrench or spanner wrench. Locknut disk sealing cap available for through coolant to prevent collet contamination. Collet Capacity ERICKSON mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG Flush-CV Form B/AD order number catalog number collet series D11 L1 L9 V WF locknut wrench ft. lbs. stop screw wrench size stop screw lbs 2993251 CV50BTGF075275 TG75 1.97 2.75 1.89 1 2 LNATGF075M HSW45M 100 SS081041G 4mm & 5/32 7.21 2993247 CV50BTGF050275 TG50 1.50 2.75 1.46 2 1 LNATGF050M HSW34M 50 SS056041G 4mm & 5/32 7.06 2993255 CV50BTGF100275 TG100 2.36 2.75 2.44 1 2 LNATGF100M HSW58M 150 SS112041G 4mm & 5/32 7.13 2993248 CV50BTGF050400 TG50 1.50 4.00 1.46 2 1 LNATGF050M HSW34M 50 SS056041G 4mm & 5/32 7.38 2993256 CV50BTGF100400 TG100 2.36 4.00 2.44 1 2 LNATGF100M HSW58M 150 SS112041G 4mm & 5/32 8.28 2993252 CV50BTGF075400 TG75 1.97 4.00 1.89 2 2 LNATGF075M HSW45M 100 SS081041G 4mm & 5/32 8.15 2993253 CV50BTGF075600 TG75 1.97 6.00 1.89 2 2 LNATGF075M HSW45M 100 SS081041G 4mm & 5/32 9.52 2993249 CV50BTGF050600 TG50 1.50 6.00 1.46 2 1 LNATGF050M HSW34M 50 SS056041G 4mm & 5/32 7.75 2993257 CV50BTGF100600 TG100 2.36 6.00 2.44 3 2 LNATGF100M HSW58M 150 SS112041G 4mm & 5/32 10.39 2993250 CV50BTGF050800 TG50 1.50 8.00 1.46 2 1 LNATGF050M HSW34M 50 SS056041G 4mm & 5/32 8.48 2993258 CV50BTGF100800 TG100 2.36 8.00 2.44 3 2 LNATGF100M HSW58M 150 SS112041G 4mm & 5/32 12.53 2993254 CV50BTGF075800 TG75 1.97 8.00 1.89 2 2 LNATGF075M HSW45M 100 SS081041G 4mm & 5/32 11.02 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Disk sealing cap and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. For retention knobs, see page L45. Form AD \y V Form B M 40 (2x) MS2221S 2,5mm SO gx) MS1296S 3mm F56 Kennametal
