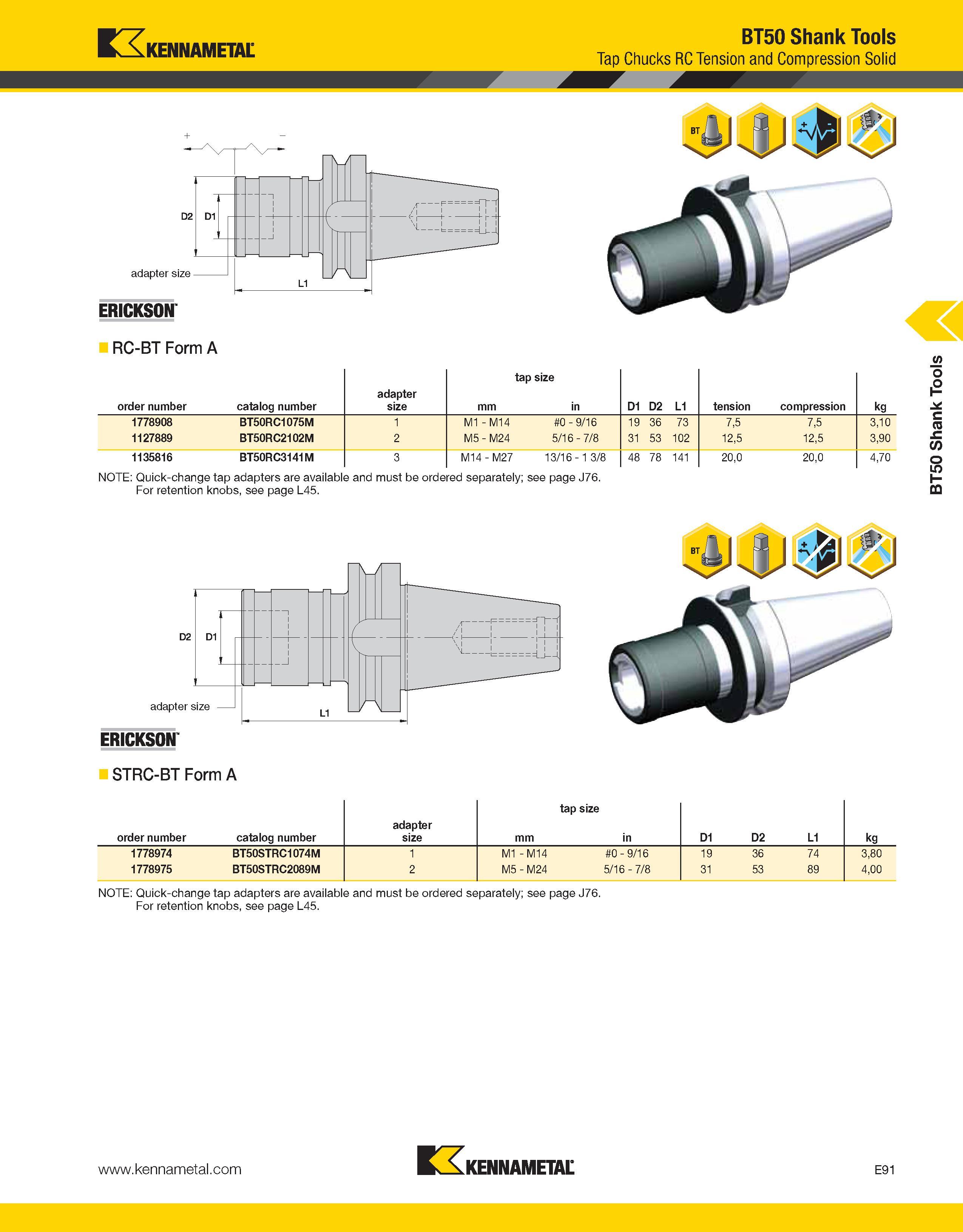

Kennametal BT50 Shank Tools Tap Chucks RC Tension and Compression Solid adapter size - nv T' 411 ERICKSON RC-BT Form A order number catalog number adapter size mm tap size in D1 D2 L1 tension compression kg 1778908 BT50RC1075M 1 M1 - M14 0 - 9/16 19 36 73 7,5 7,5 3,10 1127889 BT50RC2102M 2 M5 - M24 5/16 - 7/8 31 53 102 12,5 12,5 3,90 1135816 BT50RC3141M 3 M14 - M27 13/16 - 1 3/8 48 78 141 20,0 20,0 4,70 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. ERICKSON STRC-BT Form A order number catalog number adapter size mm tap size in D1 D2 L1 kg 1778974 BT50STRC1074M 1 M1 - M14 0 - 9/16 19 36 74 3,80 1778975 BT50STRC2089M 2 M5 - M24 5/16 - 7/8 31 53 89 4,00 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. n, KENNAMETAL E91 BT50 Shank Tools
