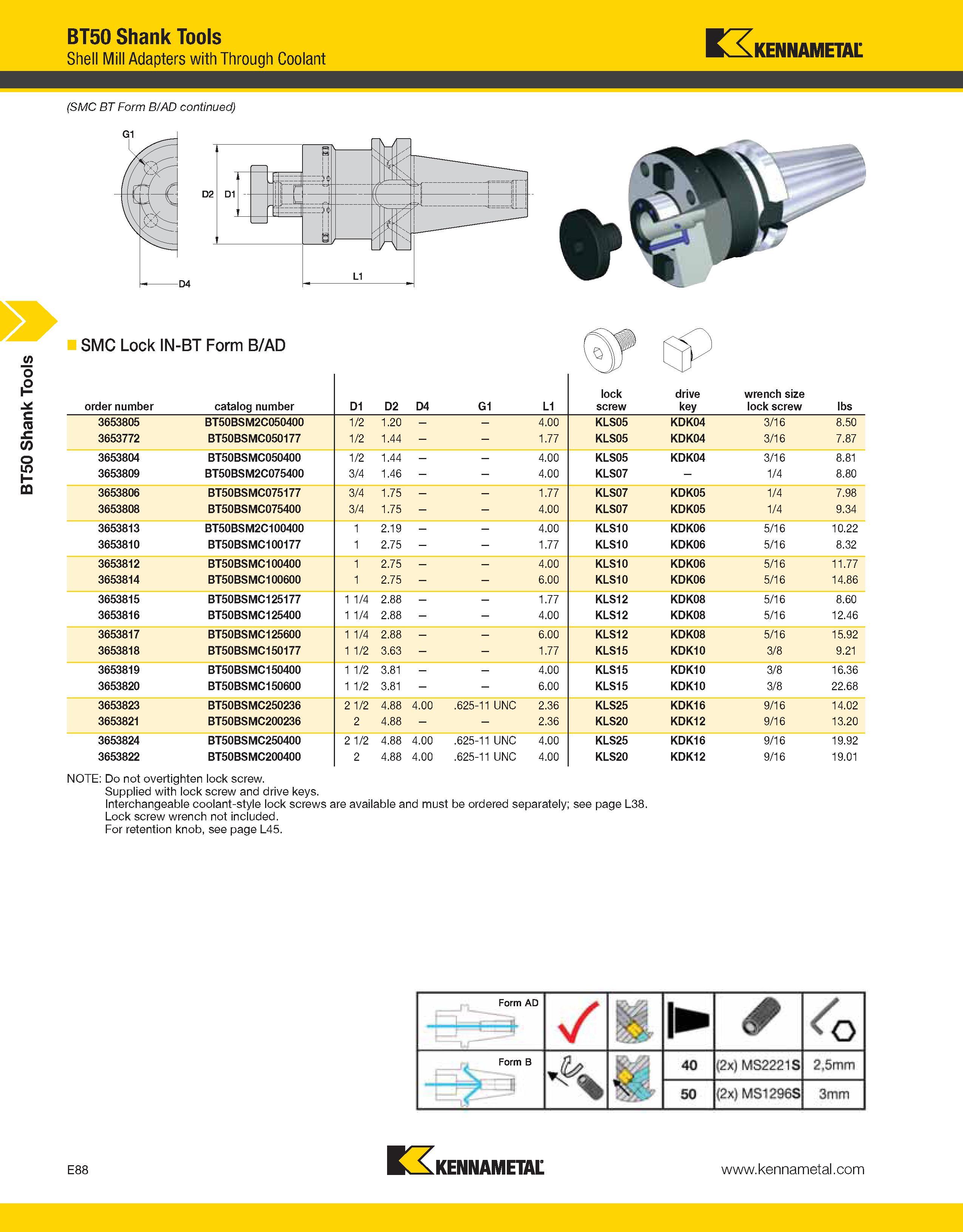

BT50 Shank Tools BT50 Shank Tools Shell Mill Adapters with Through Coolant Kennametal (SMC BT Form B/AD continued) SMC Lock IN-BT Form B/AD I 1 order number catalog number D1 D2 D4 G1 L1 lock screw drive key wrench size lock screw lbs 3653805 BT50BSM2C050400 1/2 1.20 - - 4.00 KLS05 KDK04 3/16 8.50 3653772 BT50BSMC050177 1/2 1.44 - - 1.77 KLS05 KDK04 3/16 7.87 3653804 BT50BSMC050400 1/2 1.44 - - 4.00 KLS05 KDK04 3/16 8.81 3653809 BT50BSM2C075400 3/4 1.46 - - 4.00 KLS07 - 1/4 8.80 3653806 BT50BSMC075177 3/4 1.75 - - 1.77 KLS07 KDK05 1/4 7.98 3653808 BT50BSMC075400 3/4 1.75 - - 4.00 KLS07 KDK05 1/4 9.34 3653813 BT50BSM2C100400 1 2.19 - - 4.00 KLS10 KDK06 5/16 10.22 3653810 BT50BSMC100177 1 2.75 - - 1.77 KLS10 KDK06 5/16 8.32 3653812 BT50BSMC100400 1 2.75 - - 4.00 KLS10 KDK06 5/16 11.77 3653814 BT50BSMC100600 1 2.75 - - 6.00 KLS10 KDK06 5/16 14.86 3653815 BT50BSMC125177 1 1/4 2.88 - - 1.77 KLS12 KDK08 5/16 8.60 3653816 BT50BSMC125400 1 1/4 2.88 - - 4.00 KLS12 KDK08 5/16 12.46 3653817 BT50BSMC125600 1 1/4 2.88 - - 6.00 KLS12 KDK08 5/16 15.92 3653818 BT50BSMC150177 1 1/2 3.63 - - 1.77 KLS15 KDK10 3/8 9.21 3653819 BT50BSMC150400 1 1/2 3.81 - - 4.00 KLS15 KDK10 3/8 16.36 3653820 BT50BSMC150600 1 1/2 3.81 - - 6.00 KLS15 KDK10 3/8 22.68 3653823 BT50BSMC250236 2 1/2 4.88 4.00 .625-11 UNC 2.36 KLS25 KDK16 9/16 14.02 3653821 BT50BSMC200236 2 4.88 - - 2.36 KLS20 KDK12 9/16 13.20 3653824 BT50BSMC250400 2 1/2 4.88 4.00 .625-11 UNC 4.00 KLS25 KDK16 9/16 19.92 3653822 BT50BSMC200400 2 4.88 4.00 .625-11 UNC 4.00 KLS20 KDK12 9/16 19.01 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page L38. Lock screw wrench not included. For retention knob, see page L45. Form AD L/ m \m 1 V Form B 40 (2x) MS2221S 2,5mm r SO MS1296S 3mm E88 Kennametal
