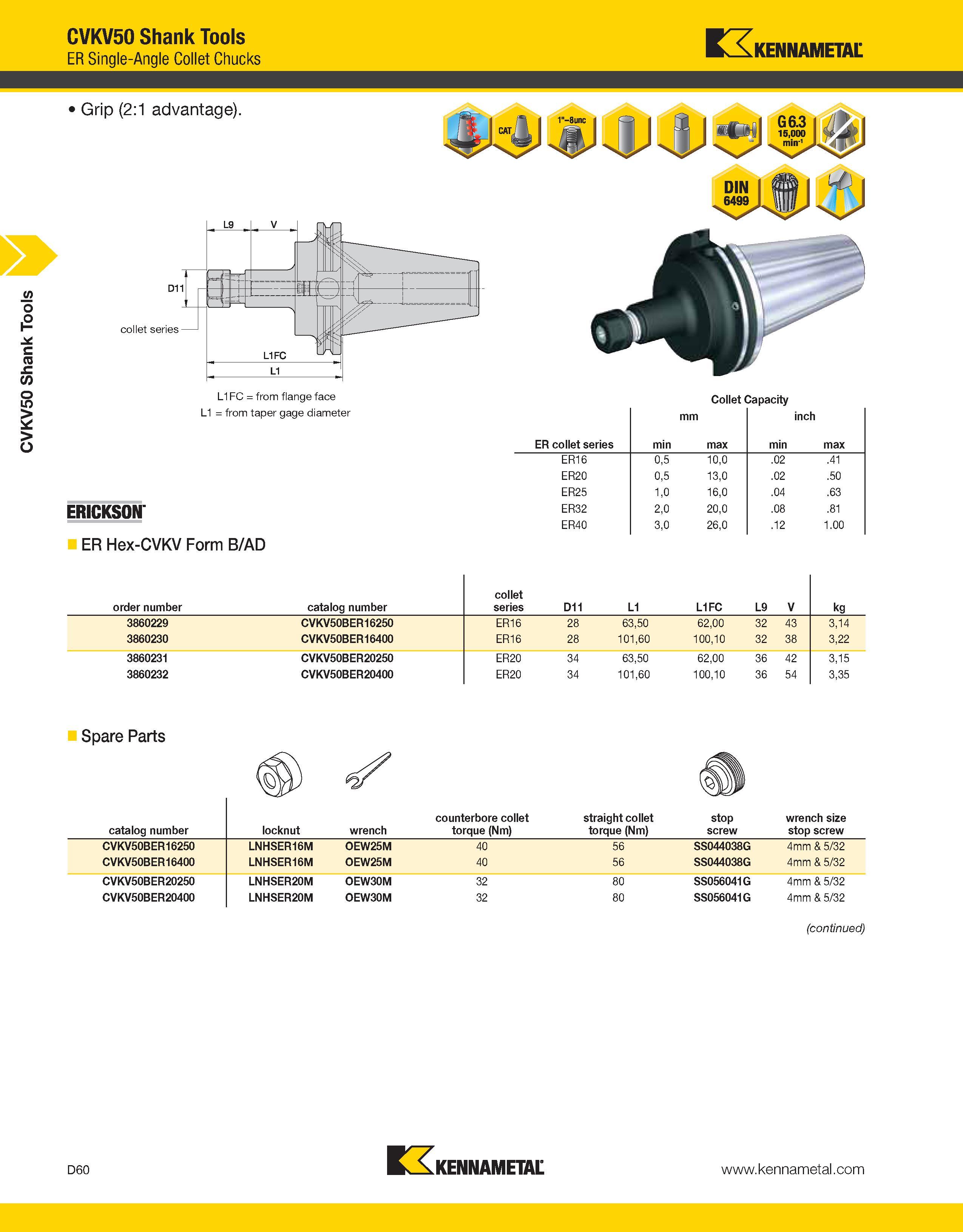

CVKV50 Shank Tools CVKV50 Shank Tools ER Single-Angle Collet Chucks Kennametal Grip (2:1 advantage). G6.3 15,000 min1 jsiSJZi L1FC = from flange face Collet Capacity L1 = from taper gage diameter mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ERICKSON' ER32 ER40 2,0 3,0 20,0 26,0 .08 .12 .81 1.00 ER Hex-CVKV Form B/AD order number catalog number collet series D11 L1 L1FC L9 V kg 3860229 CVKV50BER16250 ER16 28 63,50 62,00 32 43 3,14 3860230 CVKV50BER16400 ER16 28 101,60 100,10 32 38 3,22 3860231 CVKV50BER20250 ER20 34 63,50 62,00 36 42 3,15 3860232 CVKV50BER20400 ER20 34 101,60 100,10 36 54 3,35 Spare Parts catalog number locknut wrench counterbore collet torque (Nm) straight collet torque (Nm) stop screw wrench size stop screw CVKV50BER16250 LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 CVKV50BER16400 LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 CVKV50BER20250 LNHSER20M OEW30M 32 80 SS056041G 4mm & 5/32 CVKV50BER20400 LNHSER20M OEW30M 32 80 SS056041G 4mm & 5/32 (continued) D60 n, KENNAMETAL
