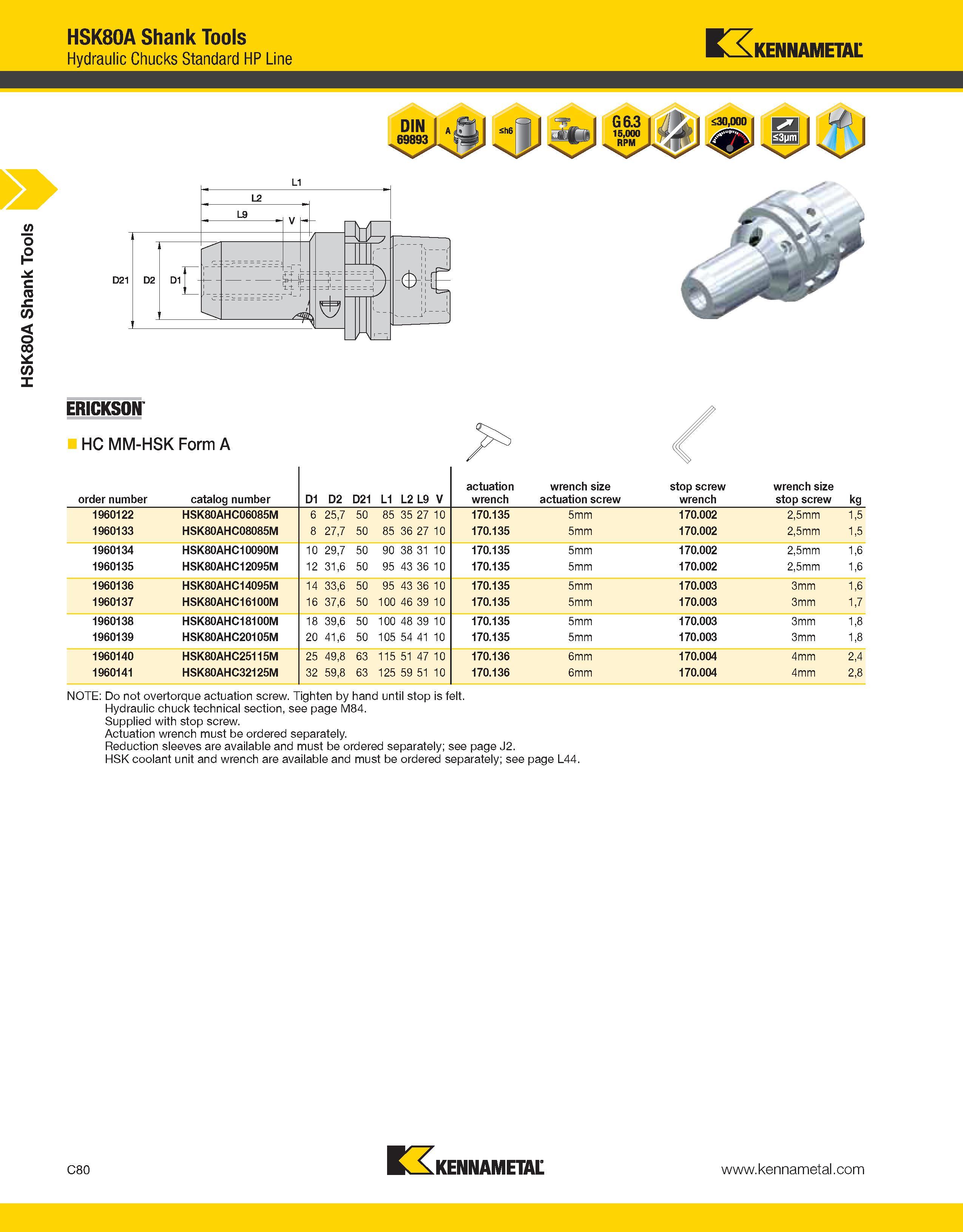

HSK80A Shank Tools HSK80A Shank Tools Hydraulic Chucks Standard HP Line Kennametal ERICKSON HC MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw kg 1960122 HSK80AHC06085M 6 25,7 50 85 35 27 10 170.135 5mm 170.002 2,5mm 1,5 1960133 HSK80AHC08085M 8 27,7 50 85 36 27 10 170.135 5mm 170.002 2,5mm 1,5 1960134 HSK80AHC10090M 10 29,7 50 90 38 31 10 170.135 5mm 170.002 2,5mm 1,6 1960135 HSK80AHC12095M 12 31,6 50 95 43 36 10 170.135 5mm 170.002 2,5mm 1,6 1960136 HSK80AHC14095M 14 33,6 50 95 43 36 10 170.135 5mm 170.003 3mm 1,6 1960137 HSK80AHC16100M 16 37,6 50 100 46 39 10 170.135 5mm 170.003 3mm 1,7 1960138 HSK80AHC18100M 18 39,6 50 100 48 39 10 170.135 5mm 170.003 3mm 1,8 1960139 HSK80AHC20105M 20 41,6 50 105 54 41 10 170.135 5mm 170.003 3mm 1,8 1960140 HSK80AHC25115M 25 49,8 63 115 51 47 10 170.136 6mm 170.004 4mm 2,4 1960141 HSK80AHC32125M 32 59,8 63 125 59 51 10 170.136 6mm 170.004 4mm 2,8 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page M84. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page J2. HSK coolant unit and wrench are available and must be ordered separately; see page L44. C80 Kennametal
