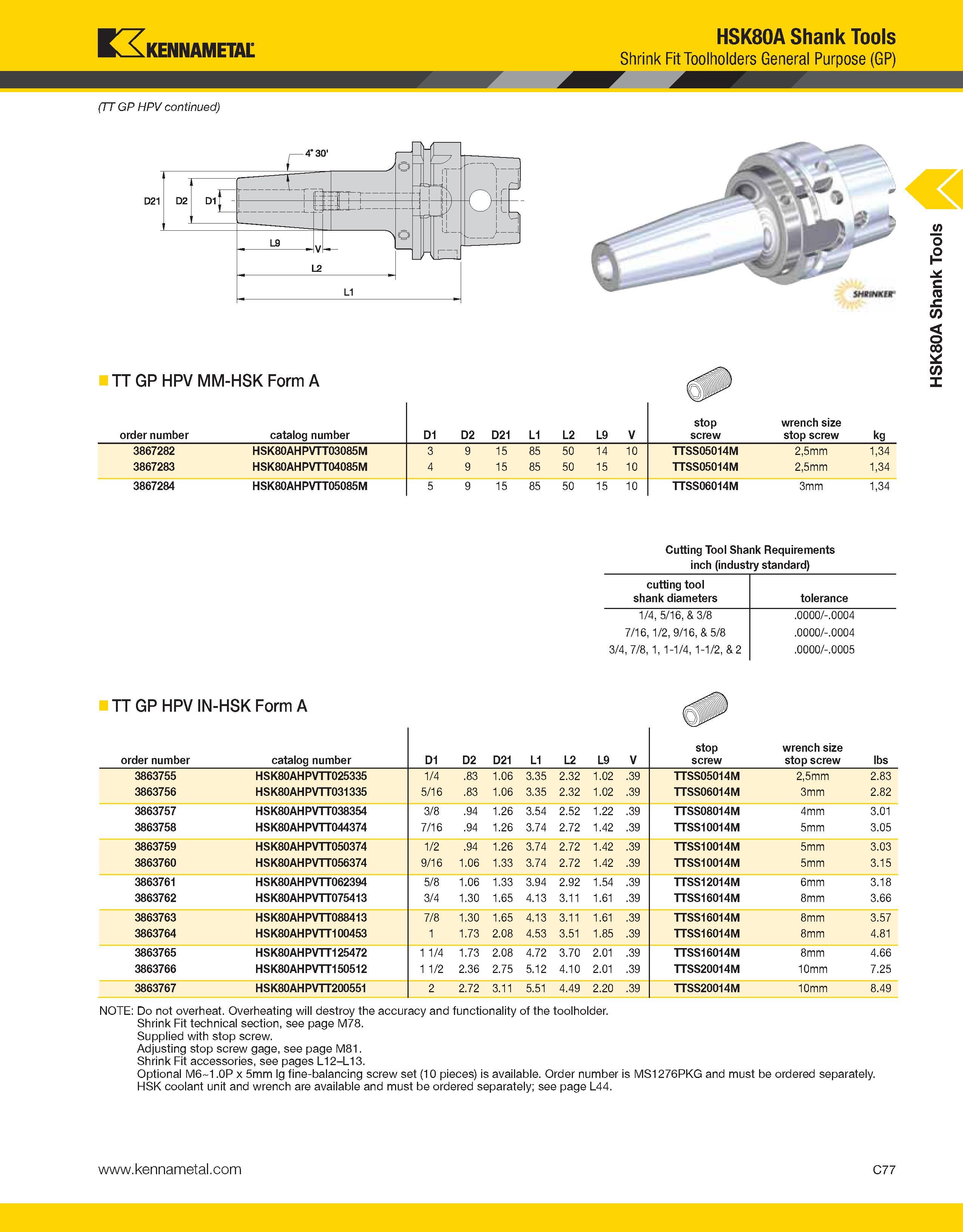

Kennametal HSK80A Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV continued) TT GP HPV MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw kg 3867282 HSK80AHPVTT03085M 3 9 15 85 50 14 10 TTSS05014M 2,5mm 1,34 3867283 HSK80AHPVTT04085M 4 9 15 85 50 15 10 TTSS05014M 2,5mm 1,34 3867284 HSK80AHPVTT05085M 5 9 15 85 50 15 10 TTSS06014M 3mm 1,34 Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16, & 3/8 .0000/-.0004 7/16, 1/2, 9/16, & 5/8 .0000/-.0004 3/4, 7/8, 1, 1-1/4, 1-1/2, & 2 .0000/-.0005 TT GP HPV IN-HSK Form A NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page M78. Supplied with stop screw. Adjusting stop screw gage, see page M81. Shrink Fit accessories, see pages L12-L13. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page L44. C77 HSK80A Shank Tools
