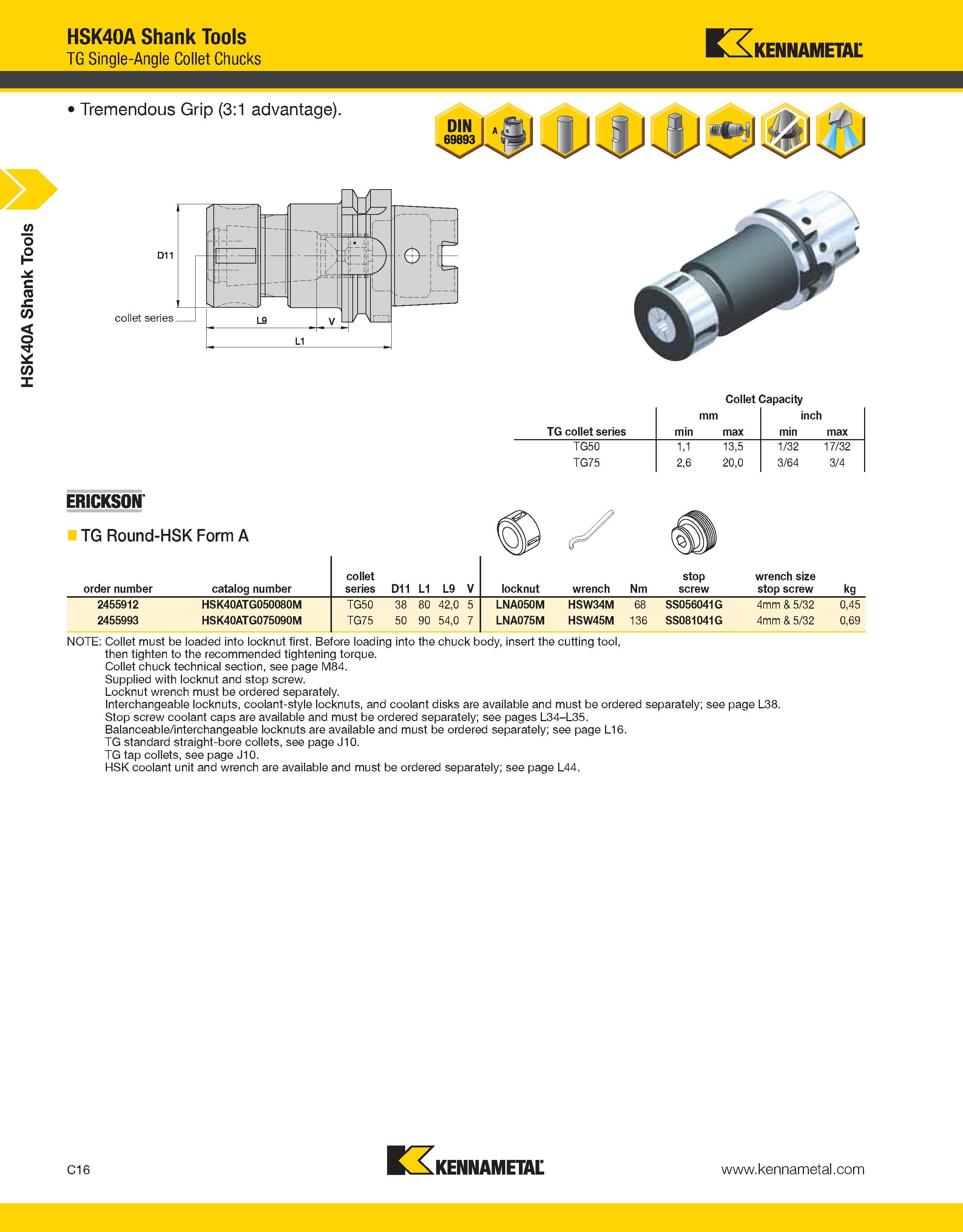

HSK40A Shank Tools HSK40A Shank Tools TG Single-Angle Collet Chucks Kennametal Collet Capacity mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 ERICKSON order number catalog number collet series D11 L1 L9 V locknut wrench Nm stop screw wrench size stop screw kg 2455912 HSK40ATG050080M TG50 38 80 42,0 5 LNA050M HSW34M 68 SS056041G 4mm & 5/32 0,45 2455993 HSK40ATG075090M TG75 50 90 54,0 7 LNA075M HSW45M 136 SS081041G 4mm & 5/32 0,69 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M84. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page L38. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. HSK coolant unit and wrench are available and must be ordered separately; see page L44. C16 Kennametal
