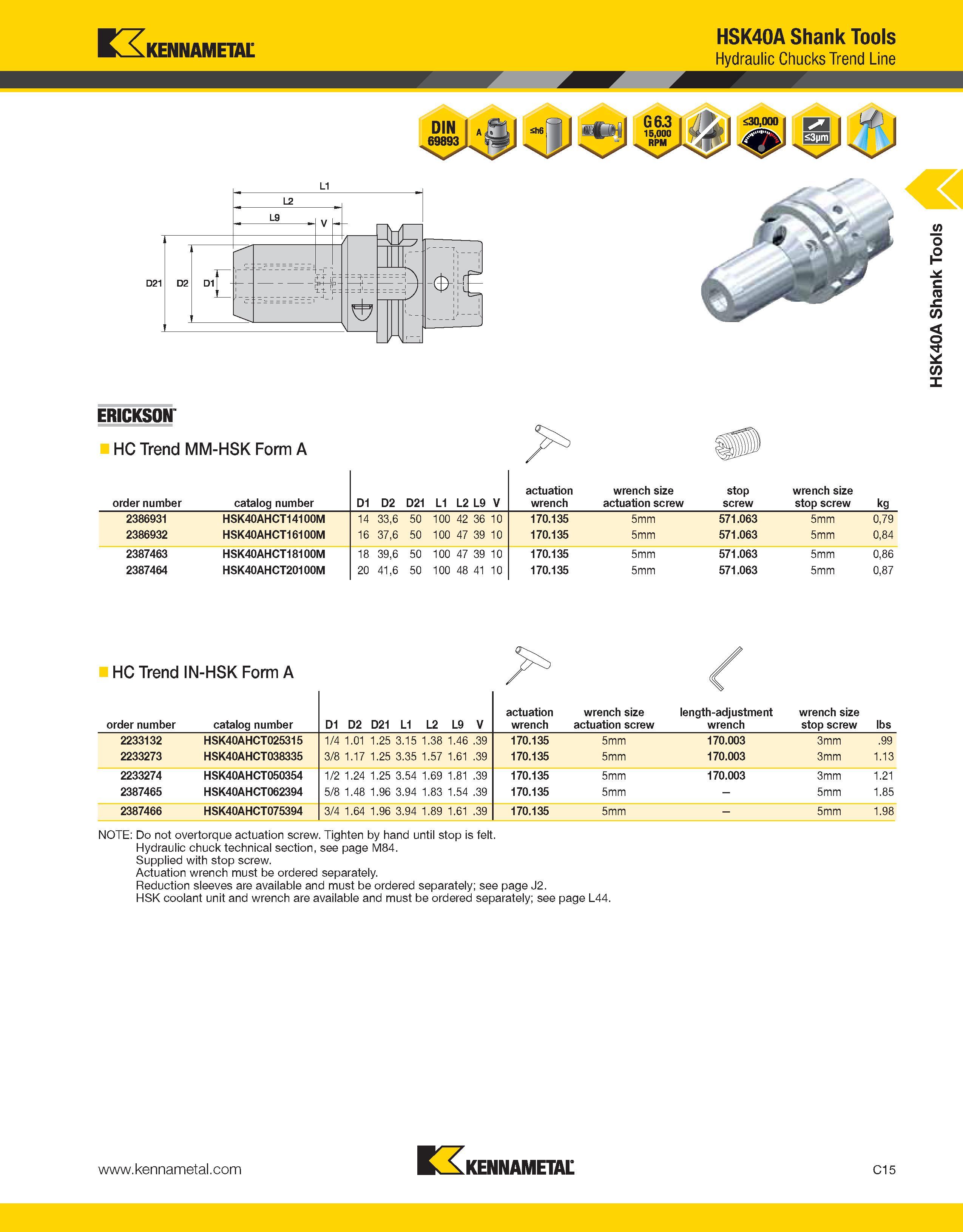

order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench size stop screw kg 2386931 HSK40AHCT14100M 14 33,6 50 100 42 36 10 170.135 5mm 571.063 5mm 0,79 2386932 HSK40AHCT16100M 16 37,6 50 100 47 39 10 170.135 5mm 571.063 5mm 0,84 2387463 HSK40AHCT18100M 18 39,6 50 100 47 39 10 170.135 5mm 571.063 5mm 0,86 2387464 HSK40AHCT20100M 20 41,6 50 100 48 41 10 170.135 5mm 571.063 5mm 0,87 HC Trend IN-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw length-adjustment wrench wrench size stop screw lbs 2233132 HSK40AHCT025315 1/4 1.01 1.25 3.15 1.38 1.46 .39 170.135 5mm 170.003 3mm .99 2233273 HSK40AHCT038335 3/8 1.17 1.25 3.35 1.57 1.61 .39 170.135 5mm 170.003 3mm 1.13 2233274 HSK40AHCT050354 1/2 1.24 1.25 3.54 1.69 1.81 .39 170.135 5mm 170.003 3mm 1.21 2387465 HSK40AHCT062394 5/8 1.48 1.96 3.94 1.83 1.54 .39 170.135 5mm - 5mm 1.85 2387466 HSK40AHCT075394 3/4 1.64 1.96 3.94 1.89 1.61 .39 170.135 5mm - 5mm 1.98 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page M84. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page J2. HSK coolant unit and wrench are available and must be ordered separately; see page L44. n, KENNAMETAL C15 HSK40A Shank Tools
