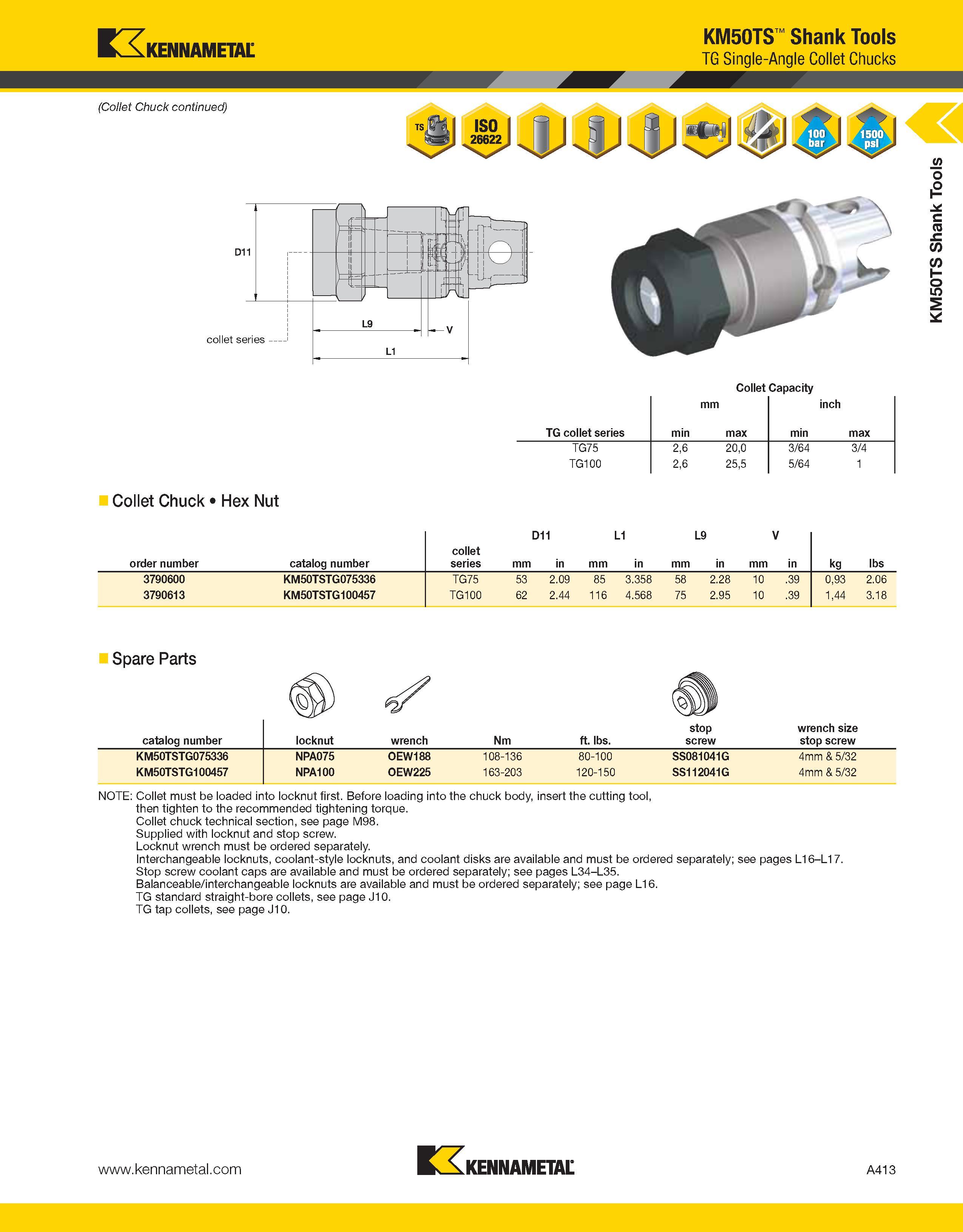

Kennametal KM50TS Shank Tools TG Single-Angle Collet Chucks Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 Collet Chuck Hex Nut order number catalog number collet series D11 mm in mm L1 in mm L9 in V mm in kg lbs 3790600 KM50TSTG075336 TG75 53 2.09 85 3.358 58 2.28 10 .39 0,93 2.06 3790613 KM50TSTG100457 TG100 62 2.44 116 4.568 75 2.95 10 .39 1,44 3.18 Spare Parts catalog number locknut wrench Nm ft. lbs. stop screw wrench size stop screw KM50TSTG075336 NPA075 OEW188 108-136 80-100 SS081041G 4mm & 5/32 KM50TSTG100457 NPA100 OEW225 163-203 120-150 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. Kennametal A413 KM50TS Shank Tools
