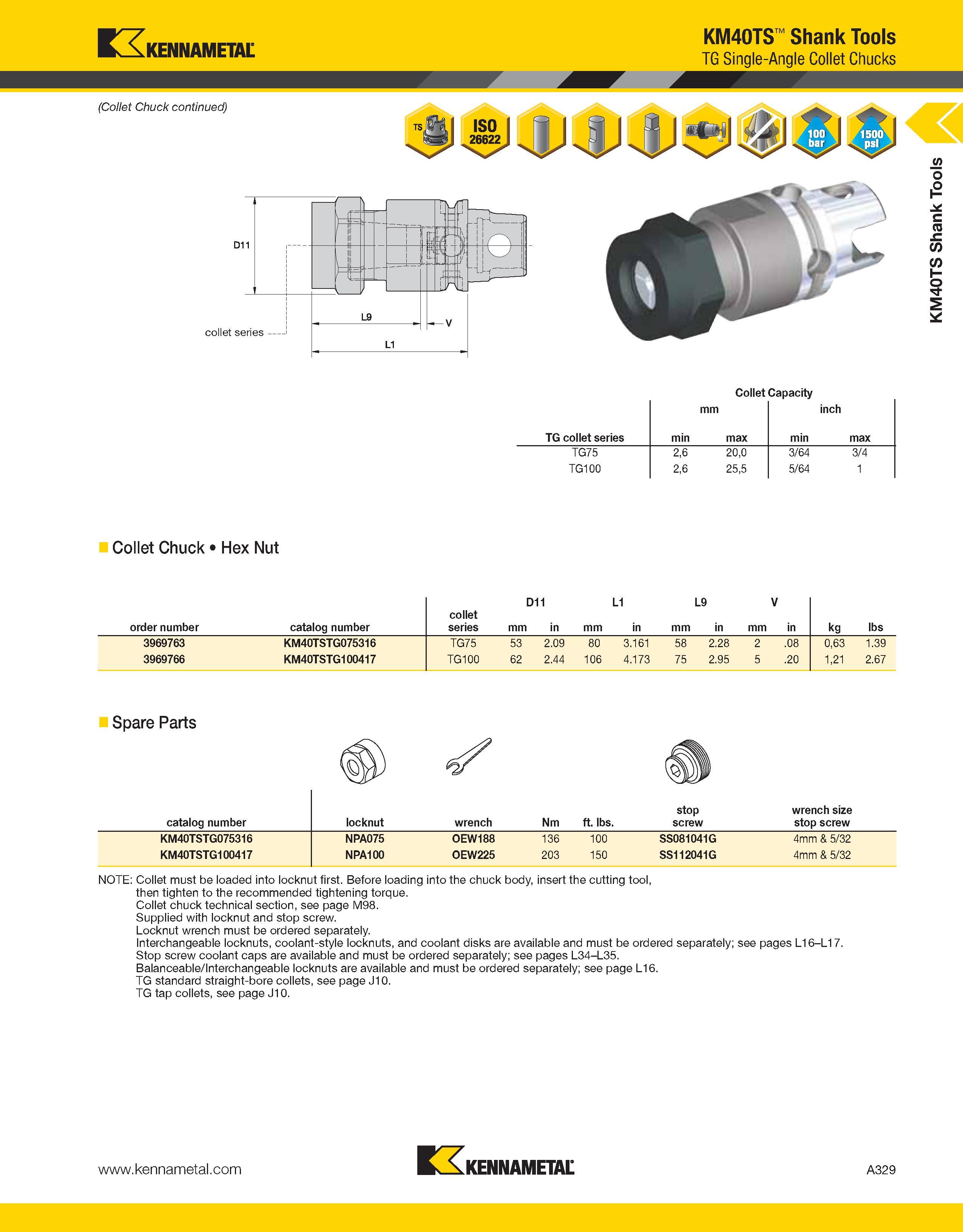

Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 Collet Chuck Hex Nut order number catalog number collet series D11 mm in mm L1 in L9 mm in V mm in kg lbs 3969763 KM40TSTG075316 TG75 53 2.09 80 3.161 58 2.28 2 .08 0,63 1.39 3969766 KM40TSTG100417 TG100 62 2.44 106 4.173 75 2.95 5 .20 1,21 2.67 Spare Parts catalog number locknut wrench Nm ft. lbs. stop screw wrench size stop screw KM40TSTG075316 NPA075 OEW188 136 100 SS081041G 4mm & 5/32 KM40TSTG100417 NPA100 OEW225 203 150 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/Interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. n, KENNAMETAL A329 KM40TS Shank Tools
