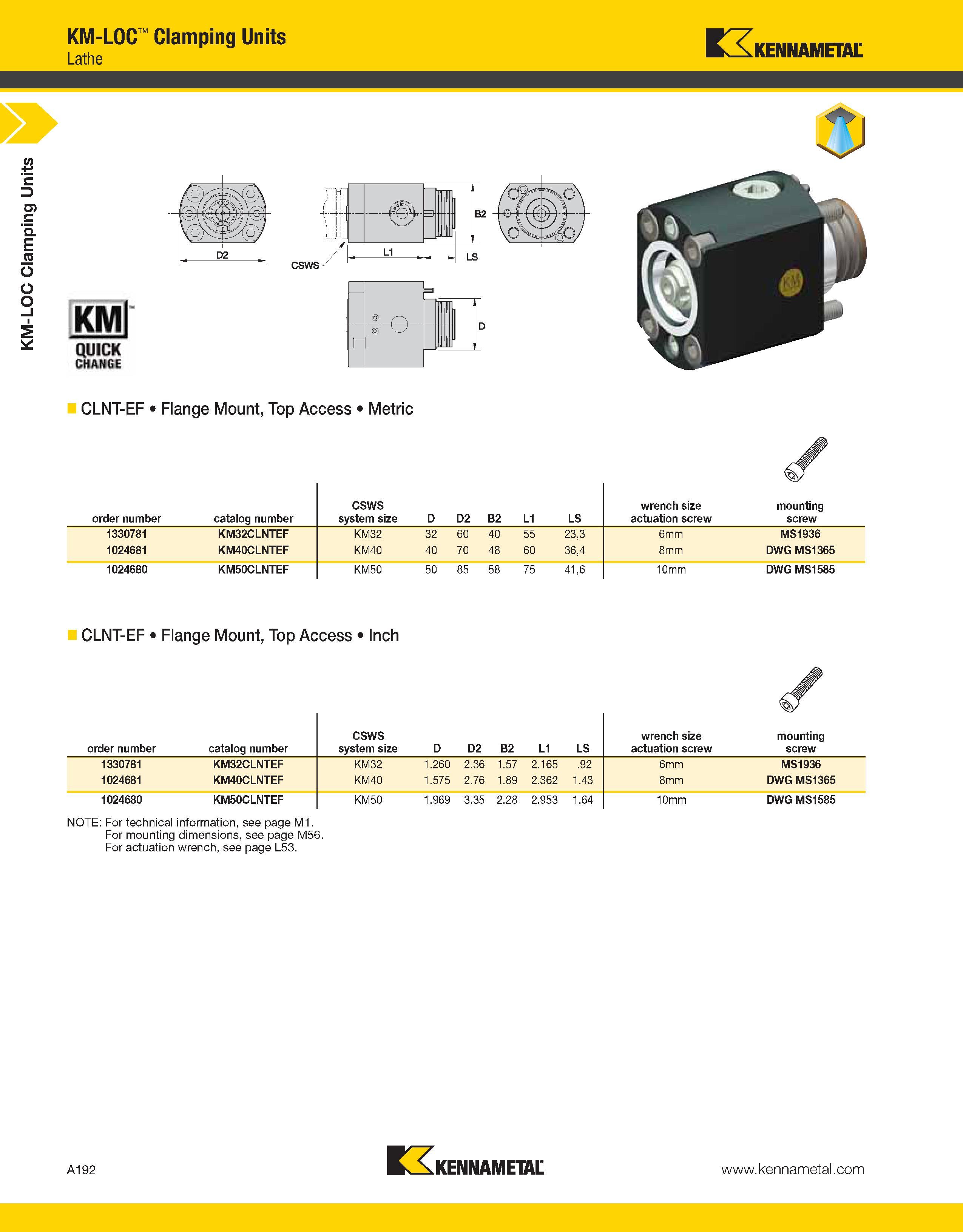

a KM-LOC Clamping Units KM-LOC Clamping Units Lathe Kennametal in CLNT-EF Flange Mount, Top Access Metric order number catalog number CSWS system size D D2 B2 L1 LS wrench size actuation screw mounting screw 1330781 KM32CLNTEF KM32 32 60 40 55 23,3 6mm MS1936 1024681 KM40CLNTEF KM40 40 70 48 60 36,4 8mm DWG MS1365 1024680 KM50CLNTEF KM50 50 85 58 75 41,6 10mm DWG MS1585 CLNT-EF Flange Mount, Top Access Inch order number catalog number CSWS system size D D2 B2 L1 LS wrench size actuation screw mounting screw 1330781 KM32CLNTEF KM32 1.260 2.36 1.57 2.165 .92 6mm MS1936 1024681 KM40CLNTEF KM40 1.575 2.76 1.89 2.362 1.43 8mm DWG MS1365 1024680 KM50CLNTEF KM50 1.969 3.35 2.28 2.953 1.64 10mm DWG MS1585 NOTE: For technical information, see page M1. For mounting dimensions, see page M56. For actuation wrench, see page L53. A192 Kennametal
