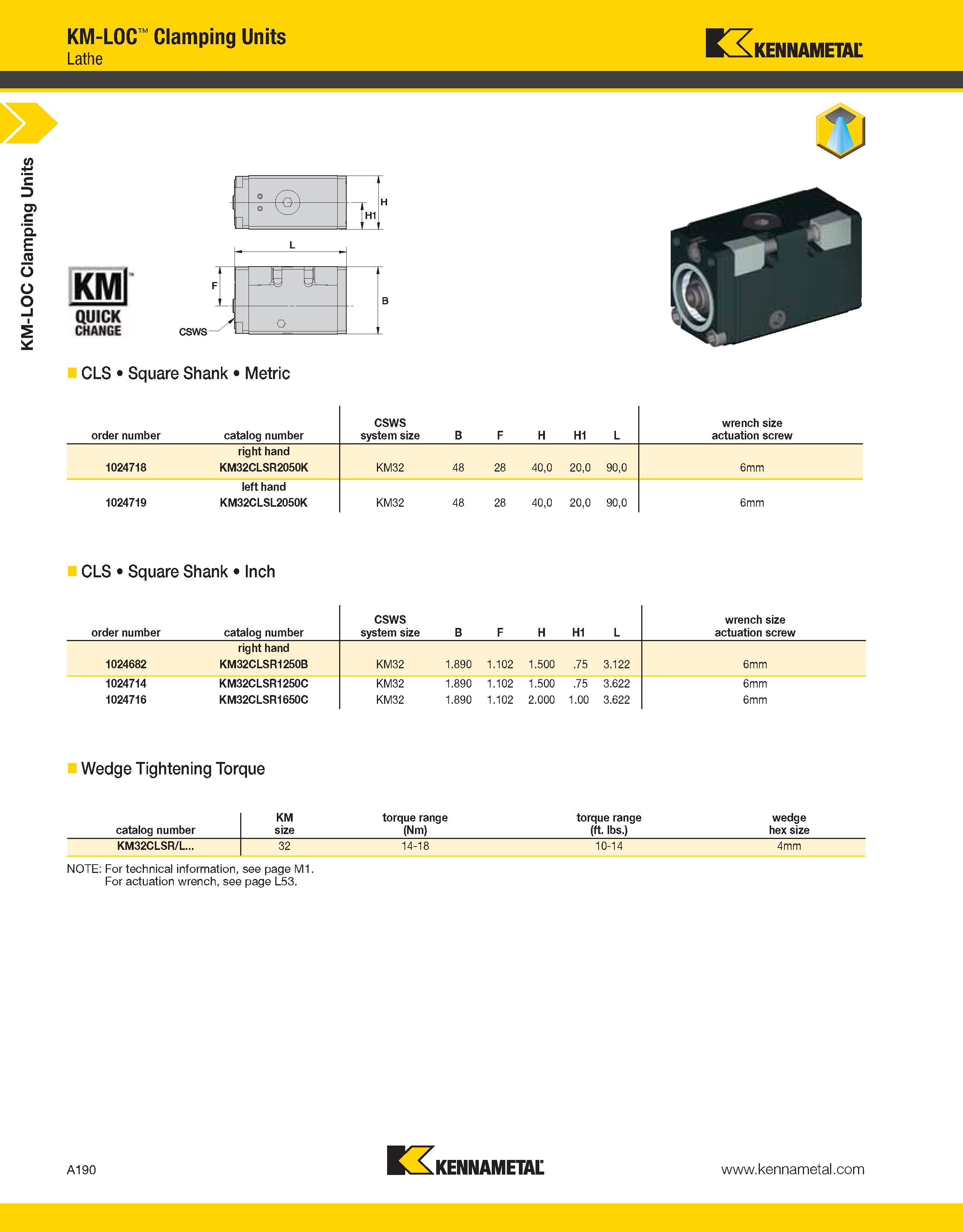

a KM-LOC Clamping Units KM-LOC Clamping Units Lathe Kennametal KMl QUICK CHANGE CSWS L ij u o " CLS Square Shank Metric order number catalog number CSWS system size B F H H1 L wrench size actuation screw 1024718 right hand KM32CLSR2050K KM32 48 28 40,0 20,0 90,0 6mm 1024719 left hand KM32CLSL2050K KM32 48 28 40,0 20,0 90,0 6mm CLS Square Shank Inch order number catalog number CSWS system size B F H H1 L wrench size actuation screw right hand 1024682 KM32CLSR1250B KM32 1.890 1.102 1.500 .75 3.122 6mm 1024714 KM32CLSR1250C KM32 1.890 1.102 1.500 .75 3.622 6mm 1024716 KM32CLSR1650C KM32 1.890 1.102 2.000 1.00 3.622 6mm Wedge Tightening Torque KM torque range torque range wedge catalog number size (Nm) (ft. lbs.) hex size KM32CLSR/L... 32 14-18 10-14 4mm NOTE: For technical information, see page M1. For actuation wrench, see page L53. A190 Kennametal
