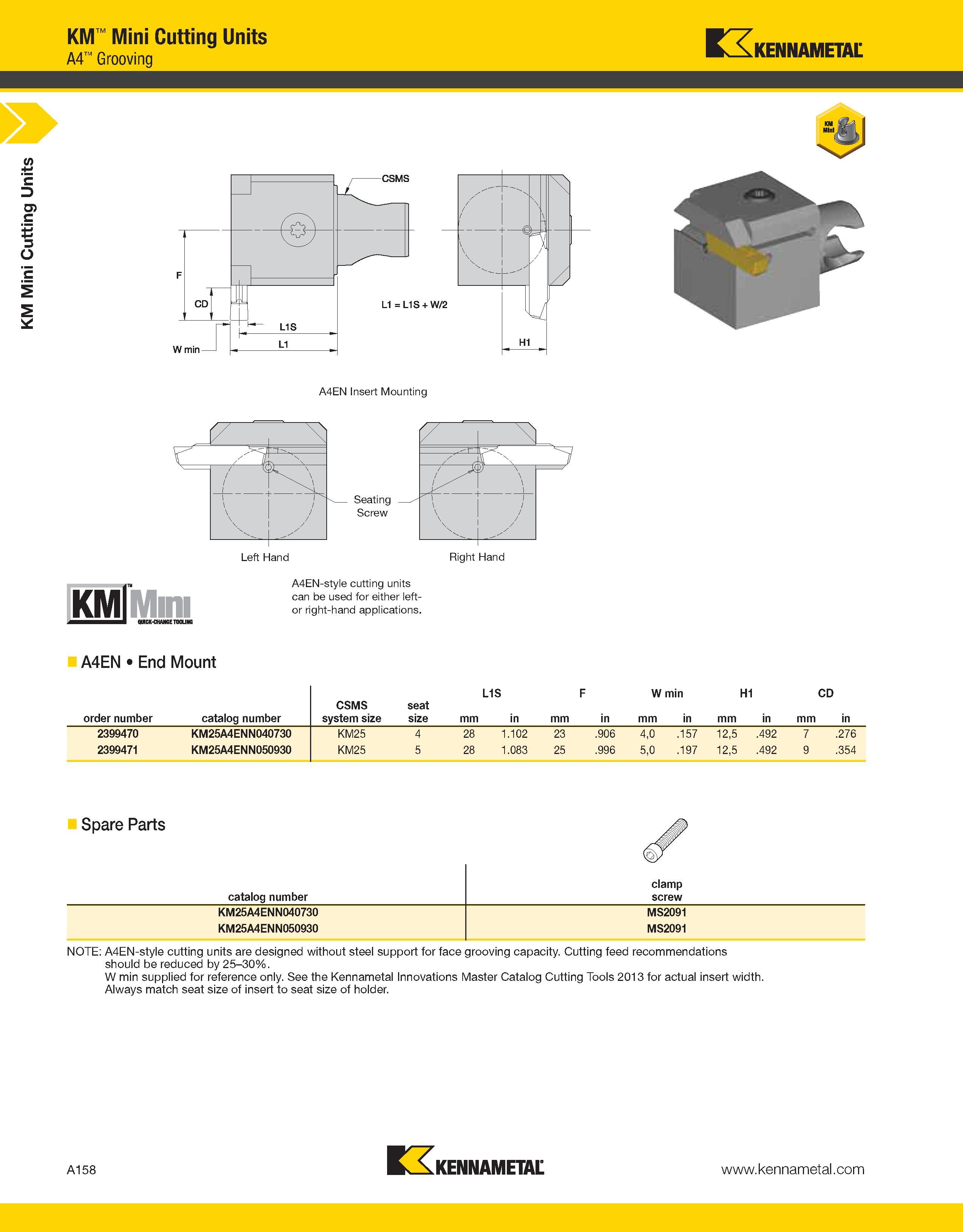

a KM Mini Cutting Units KM Mini Cutting Units A4 Grooving Kennametal A4EN Insert Mounting IRMTMh QUICK-CHANGE TOOLING A4EN-style cutting units can be used for either left-or right-hand applications. A4EN End Mount L1S F W min H1 CD order number catalog number CSMS system size seat size mm in 2399470 KM25A4ENN040730 KM25 4 28 1.102 23 .906 4,0 .157 12,5 .492 7 .276 2399471 KM25A4ENN050930 KM25 5 28 1.083 25 .996 5,0 .197 12,5 .492 9 .354 Spare Parts w clamp catalog number screw KM25A4ENN040730 MS2091 KM25A4ENN050930 MS2091 NOTE: A4EN-style cutting units are designed without steel support for face grooving capacity. Cutting feed recommendations should be reduced by 25-30%. W min supplied for reference only. See the Kennametal Innovations Master Catalog Cutting Tools 2013 for actual insert width. Always match seat size of insert to seat size of holder. A158 Kennametal
