195 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.A155

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. A155 0195 Lab2u

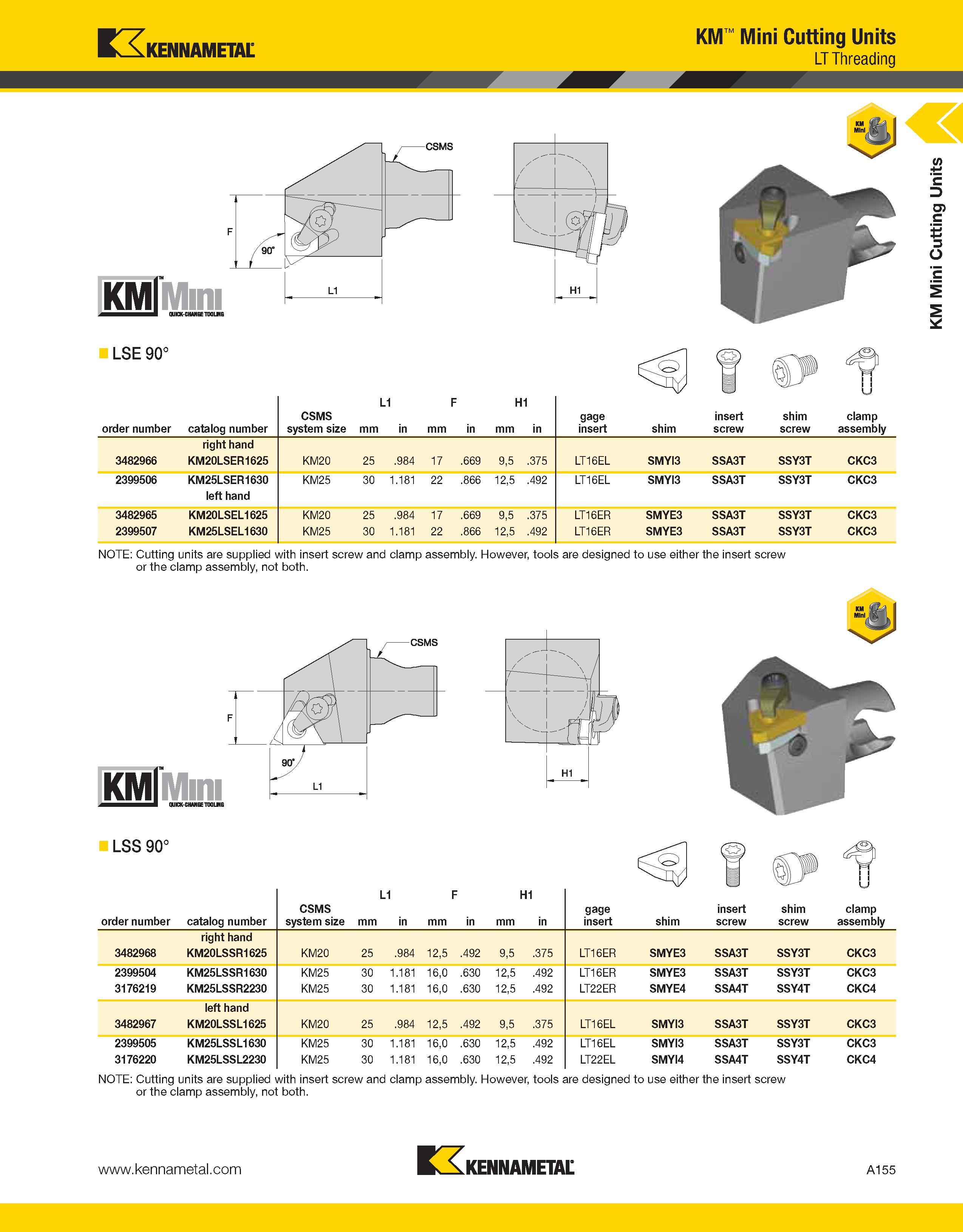

Kennametal KM Mini Cutting Units LT Threading KMlMini QUICK-CHANGE TOOLMG LSE 90° order number catalog number CSMS system size mm L1 in mm F in H1 mm in gage insert shim insert screw shim screw clamp assembly 3482966 right hand KM20LSER1625 KM20 25 .984 17 .669 9,5 .375 LT16EL SMYI3 SSA3T SSY3T CKC3 2399506 KM25LSER1630 left hand KM25 30 1.181 22 .866 12,5 .492 LT16EL SMYI3 SSA3T SSY3T CKC3 3482965 KM20LSEL1625 KM20 25 .984 17 .669 9,5 .375 LT16ER SMYE3 SSA3T SSY3T CKC3 2399507 KM25LSEL1630 KM25 30 1.181 22 .866 12,5 .492 LT16ER SMYE3 SSA3T SSY3T CKC3 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. KMjMmi QUKK-CHANGE TOOLMG LSS 90° order number catalog number CSMS system size mm L1 in mm F in mm H1 in gage insert shim insert screw shim screw clamp assembly right hand 3482968 KM20LSSR1625 KM20 25 .984 12,5 .492 9,5 .375 LT16ER SMYE3 SSA3T SSY3T CKC3 2399504 KM25LSSR1630 KM25 30 1.181 16,0 .630 12,5 .492 LT16ER SMYE3 SSA3T SSY3T CKC3 3176219 KM25LSSR2230 KM25 30 1.181 16,0 .630 12,5 .492 LT22ER SMYE4 SSA4T SSY4T CKC4 left hand 3482967 KM20LSSL1625 KM20 25 .984 12,5 .492 9,5 .375 LT16EL SMYI3 SSA3T SSY3T CKC3 2399505 KM25LSSL1630 KM25 30 1.181 16,0 .630 12,5 .492 LT16EL SMYI3 SSA3T SSY3T CKC3 3176220 KM25LSSL2230 KM25 30 1.181 16,0 .630 12,5 .492 LT22EL SMYI4 SSA4T SSY4T CKC4 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. Wh KENNAMETAL A155 KM Mini Cutting Units
