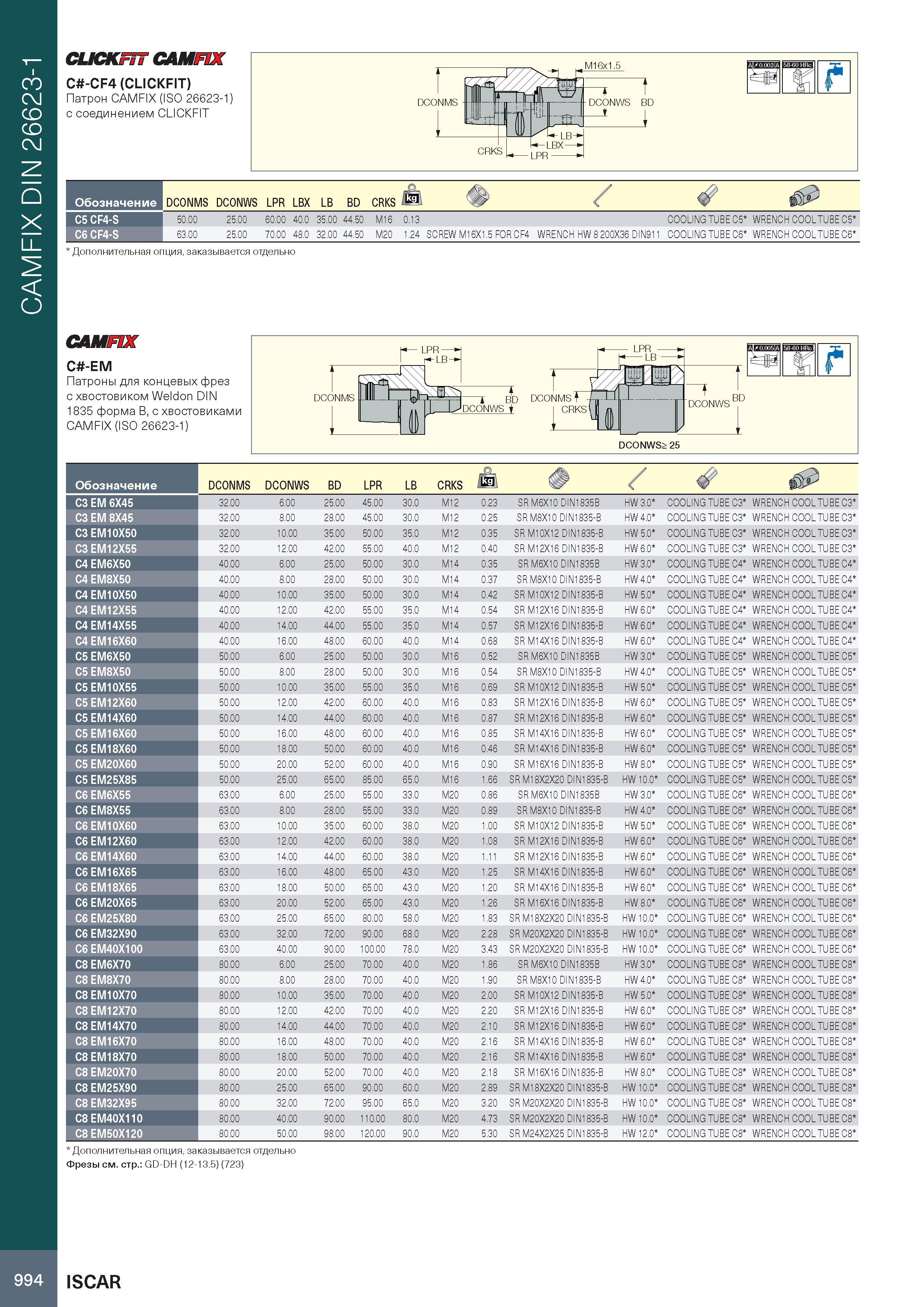

CAMFIX DIN 26623-1 CLICKFIT CAMFIX C -CF4 (CLICKFIT) Патрон CAMFIX (ISO 26623-1) с соединением CLICKFIT Обозначение DCONMS DCONWS LPR LBX LB BD CRKS fkg\ Ф , ' o'" C5 CF4-S 50.00 25.00 60.00 40.0 35.00 44.50 M16 0.13 COOLING TUBE C5 WRENCH COOL TUBE C5 C6 CF4-S 63.00 25.00 70.00 48.0 32.00 44.50 M20 1.24 SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 COOLING TUBE C6 WRENCH COOL TUBE C6 Дополнительная опция, заказывается отдельно CAMFIX C -EM Патроны для концевых фрез с хвостовиком Weldon DIN 1835 форма B, с хвостовиками CAMFIX (ISO 26623-1) LPR — r -LB- DCONMS T BD DCONMSf CRKS LPR LB Г JJ f 1 DCONWS BD DCONWS> 25 Обозначение DCONMS DCONWS BD LPR LB CRKS i4i , ’ C3 EM 6X45 32.00 6.00 25.00 45.00 30.0 M12 0.23 SR M6X10 DIN1835B HW 3.0 COOLING TUBE C3 WRENCH COOL TUBE C3 C3 EM 8X45 32.00 8.00 28.00 45.00 30.0 M12 0.25 SR M8X10 DIN1835-B HW 4.0 COOLING TUBE C3 WRENCH COOL TUBE C3 C3 EM10X50 32.00 10.00 35.00 50.00 35.0 M12 0.35 SR M10X12 DIN1835-B HW 5.0 COOLING TUBE C3 WRENCH COOL TUBE C3 C3 EM12X55 32.00 12.00 42.00 55.00 40.0 M12 0.40 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C3 WRENCH COOL TUBE C3 C4 EM6X50 40.00 6.00 25.00 50.00 30.0 M14 0.35 SR M6X10 DIN1835B HW 3.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C4 EM8X50 40.00 8.00 28.00 50.00 30.0 M14 0.37 SR M8X10 DIN1835-B HW 4.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C4 EM10X50 40.00 10.00 35.00 50.00 30.0 M14 0.42 SR M10X12 DIN1835-B HW 5.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C4 EM12X55 40.00 12.00 42.00 55.00 35.0 M14 0.54 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C4 EM14X55 40.00 14.00 44.00 55.00 35.0 M14 0.57 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C4 EM16X60 40.00 16.00 48.00 60.00 40.0 M14 0.68 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C4 WRENCH COOL TUBE C4 C5 EM6X50 50.00 6.00 25.00 50.00 30.0 M16 0.52 SR M6X10 DIN1835B HW 3.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM8X50 50.00 8.00 28.00 50.00 30.0 M16 0.54 SR M8X10 DIN1835-B HW 4.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM10X55 50.00 10.00 35.00 55.00 35.0 M16 0.69 SR M10X12 DIN1835-B HW 5.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM12X60 50.00 12.00 42.00 60.00 40.0 M16 0.83 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM14X60 50.00 14.00 44.00 60.00 40.0 M16 0.87 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM16X60 50.00 16.00 48.00 60.00 40.0 M16 0.85 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM18X60 50.00 18.00 50.00 60.00 40.0 M16 0.46 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM20X60 50.00 20.00 52.00 60.00 40.0 M16 0.90 SR M16X16 DIN1835-B HW 8.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C5 EM25X85 50.00 25.00 65.00 85.00 65.0 M16 1.66 SR M18X2X20 DIN1835-B HW 10.0 COOLING TUBE C5 WRENCH COOL TUBE C5 C6 EM6X55 63.00 6.00 25.00 55.00 33.0 M20 0.86 SR M6X10 DIN1835B HW 3.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM8X55 63.00 8.00 28.00 55.00 33.0 M20 0.89 SR M8X10 DIN1835-B HW 4.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM10X60 63.00 10.00 35.00 60.00 38.0 M20 1.00 SR M10X12 DIN1835-B HW 5.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM12X60 63.00 12.00 42.00 60.00 38.0 M20 1.08 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM14X60 63.00 14.00 44.00 60.00 38.0 M20 1.11 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM16X65 63.00 16.00 48.00 65.00 43.0 M20 1.25 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM18X65 63.00 18.00 50.00 65.00 43.0 M20 1.20 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM20X65 63.00 20.00 52.00 65.00 43.0 M20 1.26 SR M16X16 DIN1835-B HW 8.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM25X80 63.00 25.00 65.00 80.00 58.0 M20 1.83 SR M18X2X20 DIN1835-B HW 10.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM32X90 63.00 32.00 72.00 90.00 68.0 M20 2.28 SR M20X2X20 DIN1835-B HW 10.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C6 EM40X100 63.00 40.00 90.00 100.00 78.0 M20 3.43 SR M20X2X20 DIN1835-B HW 10.0 COOLING TUBE C6 WRENCH COOL TUBE C6 C8 EM6X70 80.00 6.00 25.00 70.00 40.0 M20 1.86 SR M6X10 DIN1835B HW 3.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM8X70 80.00 8.00 28.00 70.00 40.0 M20 1.90 SR M8X10 DIN1835-B HW 4.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM10X70 80.00 10.00 35.00 70.00 40.0 M20 2.00 SR M10X12 DIN1835-B HW 5.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM12X70 80.00 12.00 42.00 70.00 40.0 M20 2.20 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM14X70 80.00 14.00 44.00 70.00 40.0 M20 2.10 SR M12X16 DIN1835-B HW 6.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM16X70 80.00 16.00 48.00 70.00 40.0 M20 2.16 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM18X70 80.00 18.00 50.00 70.00 40.0 M20 2.16 SR M14X16 DIN1835-B HW 6.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM20X70 80.00 20.00 52.00 70.00 40.0 M20 2.18 SR M16X16 DIN1835-B HW 8.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM25X90 80.00 25.00 65.00 90.00 60.0 M20 2.89 SR M18X2X20 DIN1835-B HW 10.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM32X95 80.00 32.00 72.00 95.00 65.0 M20 3.20 SR M20X2X20 DIN1835-B HW 10.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM40X110 80.00 40.00 90.00 110.00 80.0 M20 4.73 SR M20X2X20 DIN1835-B HW 10.0 COOLING TUBE C8 WRENCH COOL TUBE C8 C8 EM50X120 80.00 50.00 98.00 120.00 90.0 M20 5.30 SR M24X2X25 DIN1835-B HW 12.0 COOLING TUBE C8 WRENCH COOL TUBE C8 Дополнительная опция, заказывается отдельно Фрезы см. стр.: GD-DH (12-13.5) (723) 994 ISCAR
