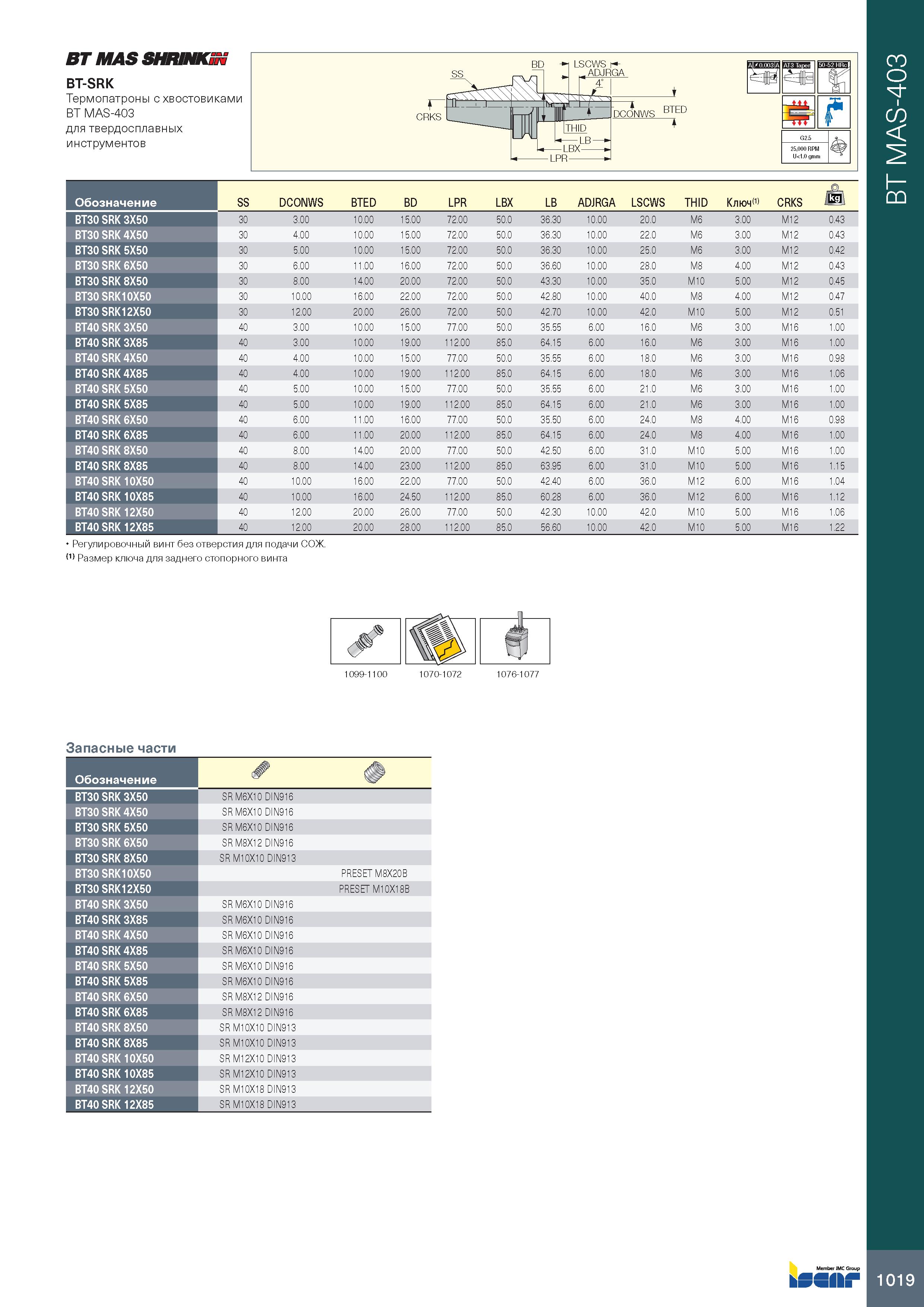

ВТ MAS SHRINKiN BT-SRK Термопатроны с хвостовиками BT MAS-403 для твердосплавных инструментов CRKS DCONWS BTED ‘ Обозначение SS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Ключ(1) CRKS lkg BT30 SRK 3X50 30 3.00 10.00 15.00 72.00 50.0 36.30 1 .00 20.0 M6 3.00 M12 0.43 BT30 SRK 4X50 30 4.00 10.00 15.00 72.00 50.0 36.30 1 .00 22.0 M6 3.00 M12 0.43 BT30 SRK 5X50 30 5.00 10.00 15.00 72.00 50.0 36.30 1 .00 25.0 M6 3.00 M12 0.42 BT30 SRK 6X50 30 6.00 11.00 16.00 72.00 50.0 36.60 1 .00 28.0 M8 4.00 M12 0.43 BT30 SRK 8X50 30 8.00 14.00 20.00 72.00 50.0 43.30 1 .00 35.0 M10 5.00 M12 0.45 BT30 SRK10X50 30 10.00 16.00 22.00 72.00 50.0 42.80 1 .00 40.0 M8 4.00 M12 0.47 BT30 SRK12X50 30 12.00 20.00 26.00 72.00 50.0 42.70 1 .00 42.0 M10 5.00 M12 0.51 BT40 SRK 3X50 40 3.00 10.00 15.00 77.00 50.0 35.55 6 .00 16.0 M6 3.00 M16 1.00 BT40 SRK 3X85 40 3.00 10.00 19.00 112.00 85.0 64.15 6 .00 16.0 M6 3.00 M16 1.00 BT40 SRK 4X50 40 4.00 10.00 15.00 77.00 50.0 35.55 6 .00 18.0 M6 3.00 M16 0.98 BT40 SRK 4X85 40 4.00 10.00 19.00 112.00 85.0 64.15 6 .00 18.0 M6 3.00 M16 1.06 BT40 SRK 5X50 40 5.00 10.00 15.00 77.00 50.0 35.55 6 .00 21.0 M6 3.00 M16 1.00 BT40 SRK 5X85 40 5.00 10.00 19.00 112.00 85.0 64.15 6 .00 21.0 M6 3.00 M16 1.00 BT40 SRK 6X50 40 6.00 11.00 16.00 77.00 50.0 35.50 6 .00 24.0 M8 4.00 M16 0.98 BT40 SRK 6X85 40 6.00 11.00 20.00 112.00 85.0 64.15 6 .00 24.0 M8 4.00 M16 1.00 BT40 SRK 8X50 40 8.00 14.00 20.00 77.00 50.0 42.50 6 .00 31.0 M10 5.00 M16 1.00 BT40 SRK 8X85 40 8.00 14.00 23.00 112.00 85.0 63.95 6 .00 31.0 M10 5.00 M16 1.15 BT40 SRK 10X50 40 10.00 16.00 22.00 77.00 50.0 42.40 6 .00 36.0 M12 6.00 M16 1.04 BT40 SRK 10X85 40 10.00 16.00 24.50 112.00 85.0 60.28 6 .00 36.0 M12 6.00 M16 1.12 BT40 SRK 12X50 40 12.00 20.00 26.00 77.00 50.0 42.30 10.00 42.0 M10 5.00 M16 1.06 BT40 SRK 12X85 40 12.00 20.00 28.00 112.00 85.0 56.60 10.00 42.0 M10 5.00 M16 1.22 Регулировочный винт без отверстия для подачи СОЖ. (1) Размер ключа для заднего стопорного винта 1099-1100 1070-1072 1076-1077 Запасные части Обозначение “ BT30 SRK 3X50 SR M6X10 DIN916 BT30 SRK 4X50 SR M6X10 DIN916 BT30 SRK 5X50 SR M6X10 DIN916 BT30 SRK 6X50 SR M8X12 DIN916 BT30 SRK 8X50 SR M10X10 DIN913 BT30 SRK10X50 PRESET M8X20B BT30 SRK12X50 PRESET M10X18B BT40 SRK 3X50 SR M6X10 DIN916 BT40 SRK 3X85 SR M6X10 DIN916 BT40 SRK 4X50 SR M6X10 DIN916 BT40 SRK 4X85 SR M6X10 DIN916 BT40 SRK 5X50 SR M6X10 DIN916 BT40 SRK 5X85 SR M6X10 DIN916 BT40 SRK 6X50 SR M8X12 DIN916 BT40 SRK 6X85 SR M8X12 DIN916 BT40 SRK 8X50 SR M10X10 DIN913 BT40 SRK 8X85 SR M10X10 DIN913 BT40 SRK 10X50 SR M12X10 DIN913 BT40 SRK 10X85 SR M12X10 DIN913 BT40 SRK 12X50 SR M10X18 DIN913 BT40 SRK 12X85 SR M10X18 DIN913 1019 BT MAS-403
