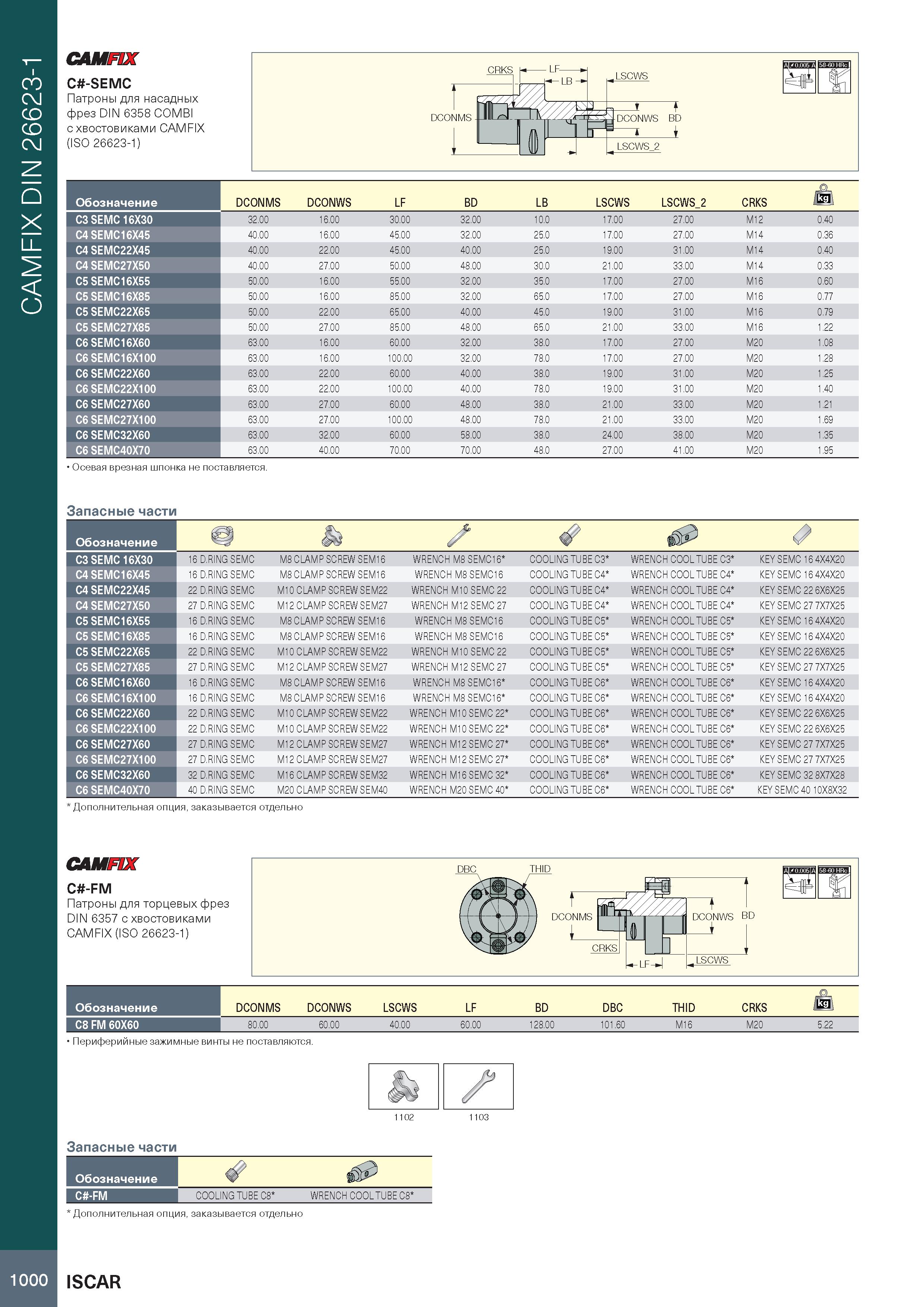

CAMFIX DIN 26623-1 CAMFIX C -SEMC Патроны для насадных фрез DIN 6358 COMBI с хвостовиками CAMFIX (ISO 26623-1) Обозначение DCONMS DCONWS LF BD LB LSCWS LSCWS 2 CRKS jkgl C3 SEMC 16X30 32 00 16.00 30.00 32.00 10.0 17.00 27.00 M12 0.40 C4 SEMC16X45 40 00 16.00 45.00 32.00 25.0 17.00 27.00 M14 0.36 C4 SEMC22X45 40 00 22.00 45.00 40.00 25.0 19.00 31.00 M14 0.40 C4 SEMC27X50 40 00 27.00 50.00 48.00 30.0 21.00 33.00 M14 0.33 C5 SEMC16X55 50 00 16.00 55.00 32.00 35.0 17.00 27.00 M16 0.60 C5 SEMC16X85 50 00 16.00 85.00 32.00 65.0 17.00 27.00 M16 0.77 C5 SEMC22X65 50 00 22.00 65.00 40.00 45.0 19.00 31.00 M16 0.79 C5 SEMC27X85 50 00 27.00 85.00 48.00 65.0 21.00 33.00 M16 1.22 C6 SEMC16X60 63 00 16.00 60.00 32.00 38.0 17.00 27.00 M20 1.08 C6 SEMC16X100 63 00 16.00 100.00 32.00 78.0 17.00 27.00 M20 1.28 C6 SEMC22X60 63 00 22.00 60.00 40.00 38.0 19.00 31.00 M20 1.25 C6 SEMC22X100 63 00 22.00 100.00 40.00 78.0 19.00 31.00 M20 1.40 C6 SEMC27X60 63 00 27.00 60.00 48.00 38.0 21.00 33.00 M20 1.21 C6 SEMC27X100 63 00 27.00 100.00 48.00 78.0 21.00 33.00 M20 1.69 C6 SEMC32X60 63 00 32.00 60.00 58.00 38.0 24.00 38.00 M20 1.35 C6 SEMC40X70 63 00 40.00 70.00 70.00 48.0 27.00 41.00 M20 1.95 Осевая врезная шпонка не поставляется. Запасные части Обозначение Ш C3 SEMC 16X30 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C3 WRENCH COOL TUBE C3 KEY SEMC 16 4X4X20 C4 SEMC16X45 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C4 WRENCH COOL TUBE C4 KEY SEMC 16 4X4X20 C4 SEMC22X45 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C4 WRENCH COOL TUBE C4 KEY SEMC 22 6X6X25 C4 SEMC27X50 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 COOLING TUBE C4 WRENCH COOL TUBE C4 KEY SEMC 27 7X7X25 C5 SEMC16X55 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C5 WRENCH COOL TUBE C5 KEY SEMC 16 4X4X20 C5 SEMC16X85 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C5 WRENCH COOL TUBE C5 KEY SEMC 16 4X4X20 C5 SEMC22X65 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C5 WRENCH COOL TUBE C5 KEY SEMC 22 6X6X25 C5 SEMC27X85 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 COOLING TUBE C5 WRENCH COOL TUBE C5 KEY SEMC 27 7X7X25 C6 SEMC16X60 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 16 4X4X20 C6 SEMC16X100 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 16 4X4X20 C6 SEMC22X60 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 22 6X6X25 C6 SEMC22X100 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 22 6X6X25 C6 SEMC27X60 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 27 7X7X25 C6 SEMC27X100 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 27 7X7X25 C6 SEMC32X60 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 32 8X7X28 C6 SEMC40X70 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 COOLING TUBE C6 WRENCH COOL TUBE C6 KEY SEMC 40 10X8X32 Дополнительная опция, заказывается отдельно CAMFIX C -FM Патроны для торцевых фрез DIN 6357 с хвостовиками CAMFIX (ISO 26623-1) Обозначение C8 FM 60X60 DCONMS DCONWS LSCWS LF BD DBC THID CRKS 0.00 128.C 101. M20 5.22 Периферийные зажимные винты не поставляются. Запасные части Обозначение 4' C -FM COOLING TUBE C8 WRENCH COOL TUBE C8 Дополнительная опция, заказывается отдельно 1000 ISCAR
