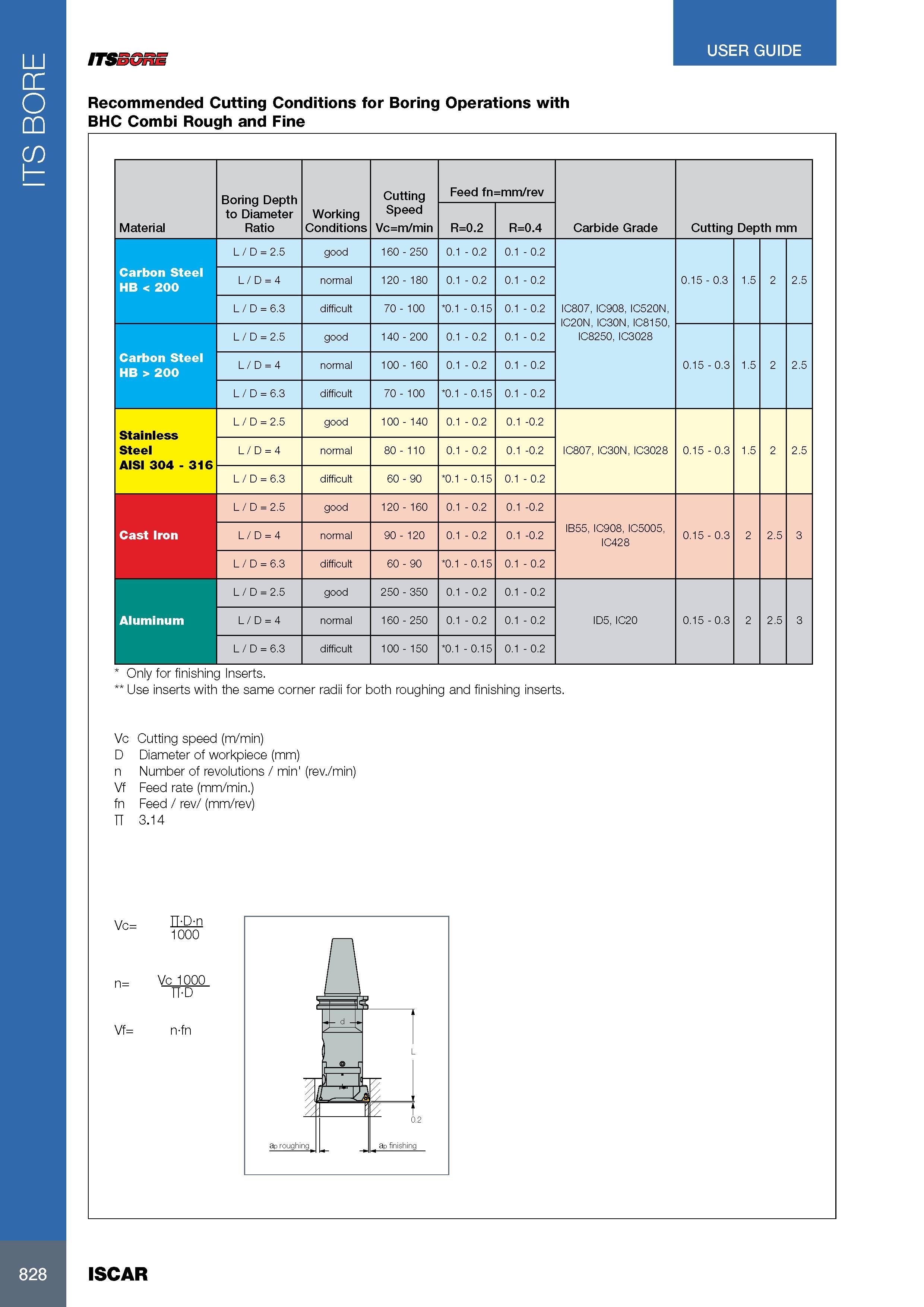

ITS BORE USER GUIDE ITSEGnE Recommended Cutting Conditions for Boring Operations with BHC Combi Rough and Fine Material Boring Depth to Diameter Ratio Working Conditions Cutting Speed Vc=m/min Feed fn =mm/rev Carbide Grade Cutting Depth mm R=0.2 R=0.4 Carbon Steel HB < 200 L / D = 2.5 good 160 - 250 0.1 - 0.2 0.1 - 0.2 IC807, IC908, IC520N, IC20N, IC30N, IC8150, IC8250, IC3028 0.15 - 0.3 1.5 2 2.5 L / D = 4 normal 120 - 180 0.1 - 0.2 0.1 - 0.2 L / D = 6.3 difficult 70 - 100 0.1 - 0.15 0.1 - 0.2 Carbon Steel HB > 200 L / D = 2.5 good 140 - 200 0.1 - 0.2 0.1 - 0.2 0.15 - 0.3 1.5 2 2.5 L / D = 4 normal 100 - 160 0.1 - 0.2 0.1 - 0.2 L / D = 6.3 difficult 70 - 100 0.1 - 0.15 0.1 - 0.2 Stainless Steel AISI 304 - 316 L / D = 2.5 good 100 - 140 0.1 - 0.2 0.1 -0.2 IC807, IC30N, IC3028 0.15 - 0.3 1.5 2 2.5 L / D = 4 normal 80 - 110 0.1 - 0.2 0.1 -0.2 L / D = 6.3 difficult 60 - 90 0.1 - 0.15 0.1 - 0.2 Cast Iron L / D = 2.5 good 120 - 160 0.1 - 0.2 0.1 -0.2 IB55, IC908, IC5005, IC428 0.15 - 0.3 2 2.5 3 L / D = 4 normal 90 - 120 0.1 - 0.2 0.1 -0.2 L / D = 6.3 difficult 60 - 90 0.1 - 0.15 0.1 - 0.2 L / D = 2.5 good 250 - 350 0.1 - 0.2 0.1 - 0.2 Aluminum L / D = 4 normal 160 - 250 0.1 - 0.2 0.1 - 0.2 ID5, IC20 0.15 - 0.3 2 2.5 3 L / D = 6.3 difficult 100 - 150 0.1 - 0.15 0.1 - 0.2 Only for finishing Inserts. Use inserts with the same corner radii for both roughing and finishing inserts. Vc Cutting speed (m/min) D Diameter of workpiece (mm) n Number of revolutions / min' (rev./min) Vf Feed rate (mm/min.) fn Feed / rev/ (mm/rev) n 3.14 Vc= HiDn 1000 n= Vc 1000 n-D Vf= n-fn 828 ISCAR
