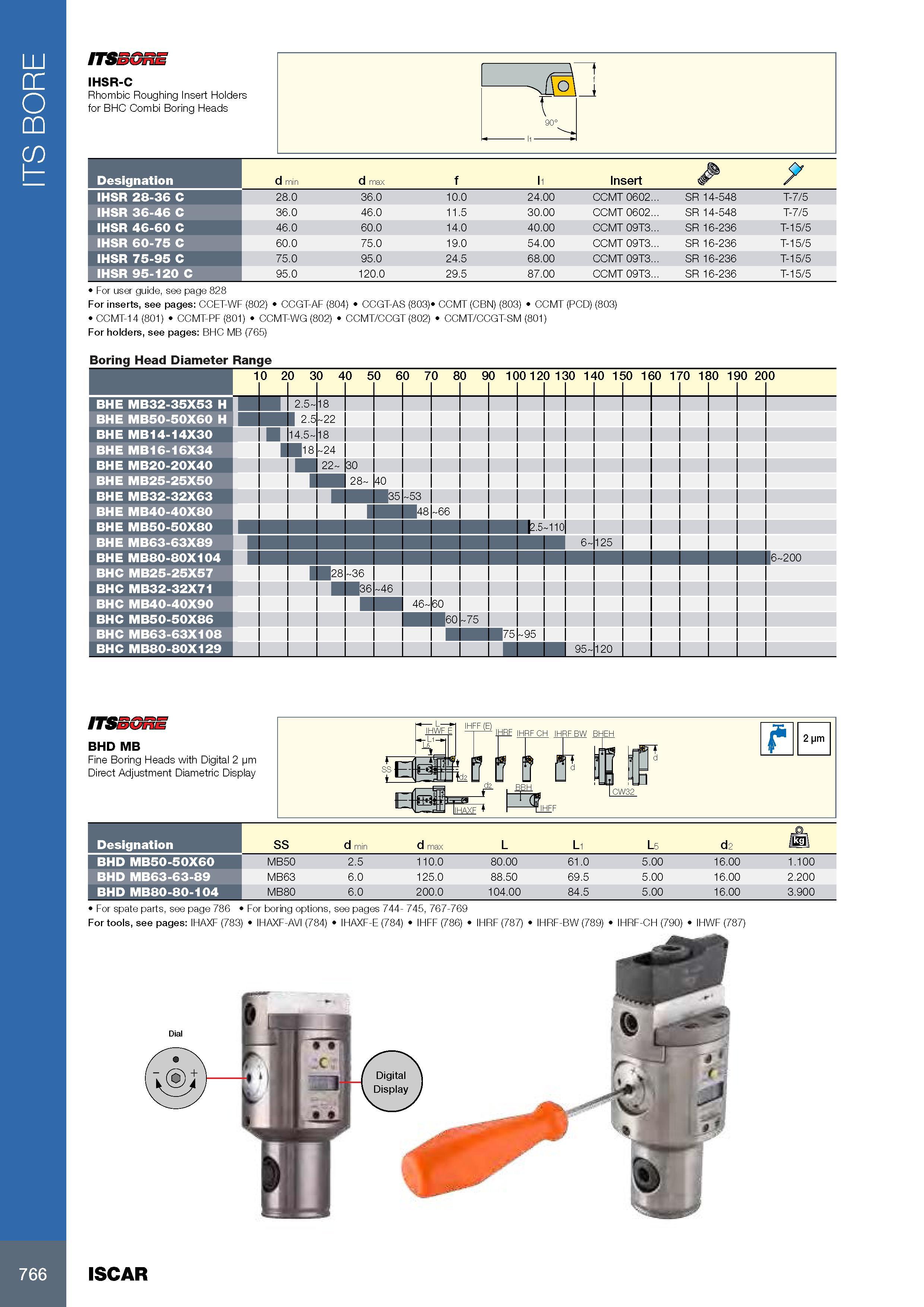

ITS BORE ITSSGRE IHSR-C Rhombic Roughing Insert Holders for BHC Combi Boring Heads Обозначение Designation d min d max f l1 Insert P IHSR 28-36 C 28.0 36.0 10.0 24.00 CCMT 0602... SR 14-548 T-7/5 IHSR 36-46 C 36.0 46.0 11.5 30.00 CCMT 0602... SR 14-548 T-7/5 IHSR 46-60 C 46.0 60.0 14.0 40.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 60-75 C 60.0 75.0 19.0 54.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 75-95 C 75.0 95.0 24.5 68.00 CCMT 09T3... SR 16-236 T-15/5 IHSR 95-120 C 95.0 120.0 29.5 87.00 CCMT 09T3... SR 16-236 T-15/5 For user guide, see page 828 For inserts, see pages: CCET-WF (802) CCGT-AF (804) CCGT-AS (803) CCMT (CBN) (803) CCMT (PCD) (803) CCMT-14 (801) CCMT-PF (801) CCMT-WG (802) CCMT/CCGT (802) CCMT/CCGT-SM (801) For holders, see pages: BHC MB (765) Boring Head Diameter Range 1 1 0 2 1 1 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 1012 0 13 50 14 10 15 50 16 50 1 f0 18 50 19 30 20 10 BHE MB32-35X53 H m 2.5 18 BHE MB50-50X60 H 1 1 2.5 22 BHE MB14-14X30 14.5 18 BHE MB16-16X34 i 1 18 24 BHE MB20-20X40 22 30 BHE MB25-25X50 1 1 28 40 BHE MB32-32X63 1 1 35 53 BHE MB40-40X80 48 66 BHE MB50-50X80 2.5 110 BHE MB63-63X89 6 125 BHE MB80-80X104 6 200 BHC MB25-25X57 1 1 1 28 36 1 1 1 1 1 BHC MB32-32X71 1 1 36 46 BHC MB40-40X90 i 46 60 BHC MB50-50X86 1 1 601 75 BHC MB63-63X108 1 1 75 95 BHC MB80-80X129 II 1 1 1 1 1 1 1 95 120 ITSBGRE BHD MB Fine Boring Heads with Digital 2 pm Direct Adjustment Diametric Display “d ii Обозначение Designation BHD MB50-50X60 BHD MB63-63-89 BHD MB80-80-104 SS d min d max L L1 L5 d2 M MB50 2.5 110.0 80.00 61.0 5.00 16.00 1.100 MB63 6.0 125.0 88.50 69.5 5.00 16.00 2.200 MB80 6.0 200.0 104.00 84.5 5.00 16.00 3.900 For spate parts, see page 786 For boring options, see pages 744- 745, 767-769 For tools, see pages: IHAXF (783) IHAXF-AVI (784) IHAXF-E(784) IHFF (786) IHRF (787) IHRF-BW(789) IHRF-CH (790) IHWF (787) 766 ISCAR
