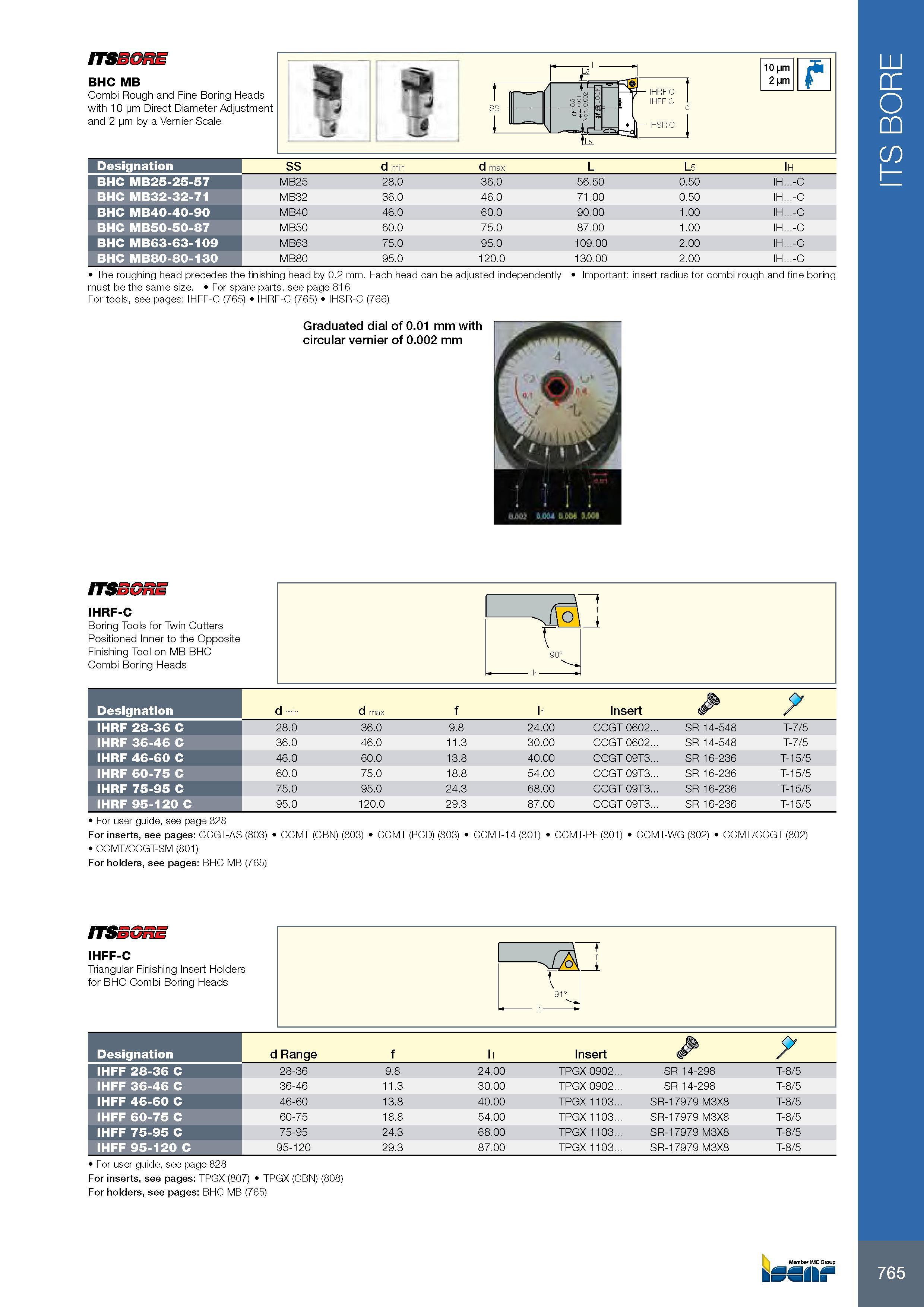

765 ITSSGRE BHC MB Combi Rough and Fine Boring Heads with 10 pm Direct Diameter Adjustment and 2 pm by a Vernier Scale 10 pm 2 pm Обозначение Designation SS d min d max L L5 Ih BHC MB25-25-57 MB25 28.0 36.0 56.50 0.50 IH...-C BHC MB32-32-71 MB32 36.0 46.0 71.00 0.50 IH...-C BHC MB40-40-90 MB40 46.0 60.0 90.00 1.00 IH...-C BHC MB50-50-87 MB50 60.0 75.0 87.00 1.00 IH...-C BHC MB63-63-109 MB63 75.0 95.0 109.00 2.00 IH...-C BHC MB80-80-130 MB80 95.0 120.0 130.00 2.00 IH...-C The roughing head precedes the finishing head by 0.2 mm. Each head can be adjusted independently Important: insert radius for combi rough and fine boring must be the same size. For spare parts, see page 816 For tools, see pages: IHFF-C (765) IHRF-C (765) IHSR-C (766) ITSEGRE IHRF-C Boring Tools for Twin Cutters Positioned Inner to the Opposite Finishing Tool on MB BHC Combi Boring Heads Обозначение Designation d min d max f l1 Insert 7 IHRF 28-36 C 28.0 36.0 9.8 24.00 CCGT 0602... SR 14-548 T-7/5 IHRF 36-46 C 36.0 46.0 11.3 30.00 CCGT 0602... SR 14-548 T-7/5 IHRF 46-60 C 46.0 60.0 13.8 40.00 CCGT 09T3... SR 16-236 T-15/5 IHRF 60-75 C 60.0 75.0 18.8 54.00 CCGT 09T3... SR 16-236 T-15/5 IHRF 75-95 C 75.0 95.0 24.3 68.00 CCGT 09T3... SR 16-236 T-15/5 IHRF 95-120 C 95.0 120.0 29.3 87.00 CCGT 09T3... SR 16-236 T-15/5 For user guide, see page 828 For inserts, see pages: CCGT-AS (803) CCMT (CBN) (803) CCMT (PCD) (803) CCMT-14 (801) CCMT-PF (801) CCMT-WG (802) CCMT/CCGT (802) CCMT/CCGT-SM (801) For holders, see pages: BHC MB (765) ITSEGRE IHFF-C Triangular Finishing Insert Holders for BHC Combi Boring Heads Обозначение Designation d Range f l1 Insert P IHFF 28-36 C 28-36 9.8 24.00 TPGX 0902... SR 14-298 T-8/5 IHFF 36-46 C 36-46 11.3 30.00 TPGX 0902... SR 14-298 T-8/5 IHFF 46-60 C 46-60 13.8 40.00 TPGX 1103... SR-17979 M3X8 T-8/5 IHFF 60-75 C 60-75 18.8 54.00 TPGX 1103... SR-17979 M3X8 T-8/5 IHFF 75-95 C 75-95 24.3 68.00 TPGX 1103... SR-17979 M3X8 T-8/5 IHFF 95-120 C 95-120 29.3 87.00 TPGX 1103... SR-17979 M3X8 T-8/5 For user guide, see page 828 For inserts, see pages: TPGX (807) TPGX (CBN) (808) For holders, see pages: BHC MB (765) ITS BORE
