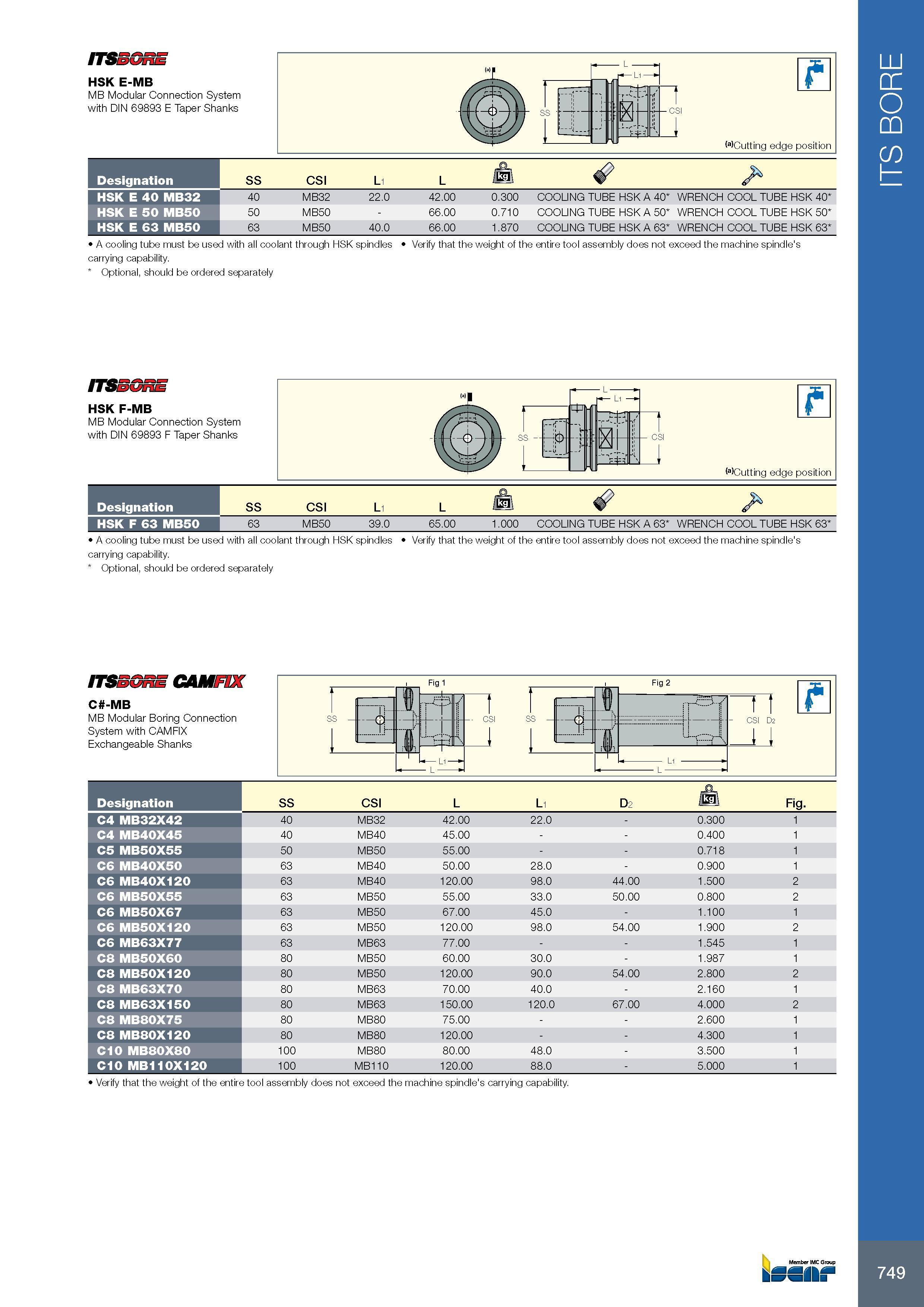

ITSSGRE HSK E-MB MB Modular Connection System with DIN 69893 E Taper Shanks Обозначение Designation HSK E 40 MB32 HSK E 50 MB50 HSK E 63 MB50 SS CSI L1 L 40 MB32 22.0 42.00 0.300 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 50 MB50 - 66.00 0.710 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 63 MB50 40.0 66.00 1.870 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Optional, should be ordered separately ITSSGRE HSK F-MB MB Modular Connection System with DIN 69893 F Taper Shanks Обозначение Designation SS CSI L1 L HSK F 63 MB50 63 MB50 39.0 65.00 1.000 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Optional, should be ordered separately ITSSGRE CAMFIX C -MB MB Modular Boring Connection System with CAMFIX Exchangeable Shanks Обозначение Designation SS CSI L L1 D2 1 Fig. C4 MB32X42 40 MB32 42.00 22.0 - 0.300 1 C4 MB40X45 40 MB40 45.00 0.400 1 C5 MB50X55 50 MB50 55.00 0.718 1 C6 MB40X50 63 MB40 50.00 28.0 - 0.900 1 C6 MB40X120 63 MB40 120.00 98.0 44.00 1.500 2 C6 MB50X55 63 MB50 55.00 33.0 50.00 0.800 2 C6 MB50X67 63 MB50 67.00 45.0 - 1.100 1 C6 MB50X120 63 MB50 120.00 98.0 54.00 1.900 2 C6 MB63X77 63 MB63 77.00 1.545 1 C8 MB50X60 80 MB50 60.00 30.0 - 1.987 1 C8 MB50X120 80 MB50 120.00 90.0 54.00 2.800 2 C8 MB63X70 80 MB63 70.00 40.0 - 2.160 1 C8 MB63X150 80 MB63 150.00 120.0 67.00 4.000 2 C8 MB80X75 80 MB80 75.00 2.600 1 C8 MB80X120 80 MB80 120.00 4.300 1 C10 MB80X80 100 MB80 80.00 48.0 - 3.500 1 C10 MB110X120 100 MB110 120.00 88.0 - 5.000 1 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. 749 ITS BORE
