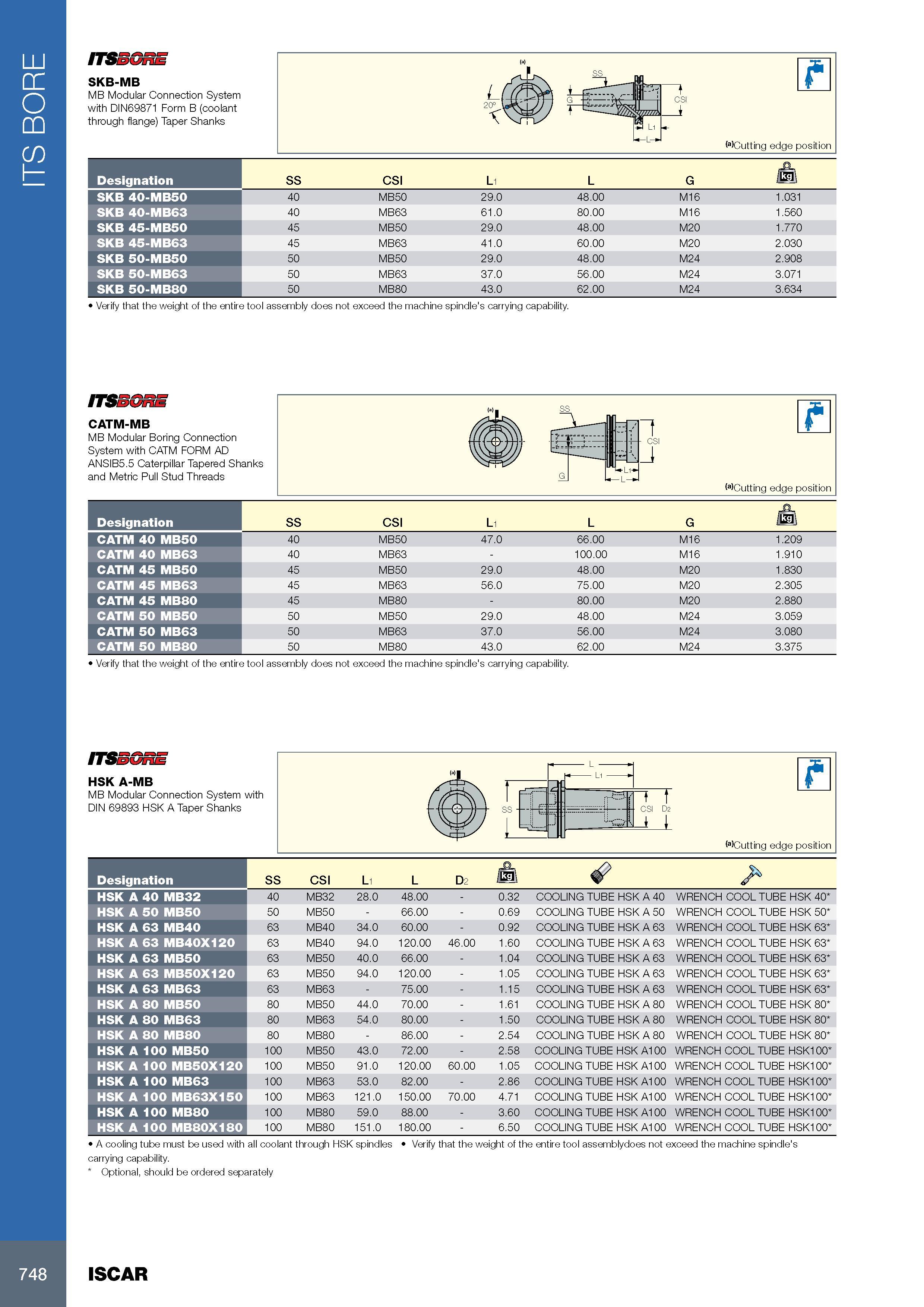

ITS BORE ITSSGRE SKB-MB MB Modular Connection System with DIN69871 Form B (coolant through flange) Taper Shanks Обозначение Designation SS CSI L1 L G o SKB 40-MB50 40 MB50 29.0 48.00 M16 1.031 SKB 40-MB63 40 MB63 61.0 80.00 M16 1.560 SKB 45-MB50 45 MB50 29.0 48.00 M20 1.770 SKB 45-MB63 45 MB63 41.0 60.00 M20 2.030 SKB 50-MB50 50 MB50 29.0 48.00 M24 2.908 SKB 50-MB63 50 MB63 37.0 56.00 M24 3.071 SKB 50-MB80 50 MB80 43.0 62.00 M24 3.634 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. CATM-MB MB Modular Boring Connection System with CATM FORM AD ANSIB5.5 Caterpillar Tapered Shanks and Metric Pull Stud Threads Обозначение Designation SS CSI L1 L G CATM 40 MB50 40 MB50 47.0 66.00 M16 1.209 CATM 40 MB63 40 MB63 - 100.00 M16 1.910 CATM 45 MB50 45 MB50 29.0 48.00 M20 1.830 CATM 45 MB63 45 MB63 56.0 75.00 M20 2.305 CATM 45 MB80 45 MB80 - 80.00 M20 2.880 CATM 50 MB50 50 MB50 29.0 48.00 M24 3.059 CATM 50 MB63 50 MB63 37.0 56.00 M24 3.080 CATM 50 MB80 50 MB80 43.0 62.00 M24 3.375 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE HSK A-MB MB Modular Connection System with DIN 69893 HSK A Taper Shanks Обозначение Designation SS CSI L1 L D2 J HSK A 40 MB32 40 MB32 28.0 48.00 - 0.32 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 HSK A 50 MB50 50 MB50 - 66.00 - 0.69 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK A 63 MB40 63 MB40 34.0 60.00 - 0.92 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 MB40X120 63 MB40 94.0 120.00 46.00 1.60 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 MB50 63 MB50 40.0 66.00 - 1.04 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 MB50X120 63 MB50 94.0 120.00 - 1.05 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 MB63 63 MB63 - 75.00 - 1.15 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 80 MB50 80 MB50 44.0 70.00 - 1.61 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK 80 HSK A 80 MB63 80 MB63 54.0 80.00 - 1.50 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK 80 HSK A 80 MB80 80 MB80 - 86.00 - 2.54 COOLING TUBE HSK A 80 WRENCH COOL TUBE HSK 80 HSK A 100 MB50 100 MB50 43.0 72.00 - 2.58 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 MB50X120 100 MB50 91.0 120.00 60.00 1.05 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 MB63 100 MB63 53.0 82.00 - 2.86 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 MB63X150 100 MB63 121.0 150.00 70.00 4.71 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 MB80 100 MB80 59.0 88.00 - 3.60 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 MB80X180 100 MB80 151.0 180.00 - 6.50 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assemblydoes not exceed the machine spindle's carrying capability. Optional, should be ordered separately 748 ISCAR
