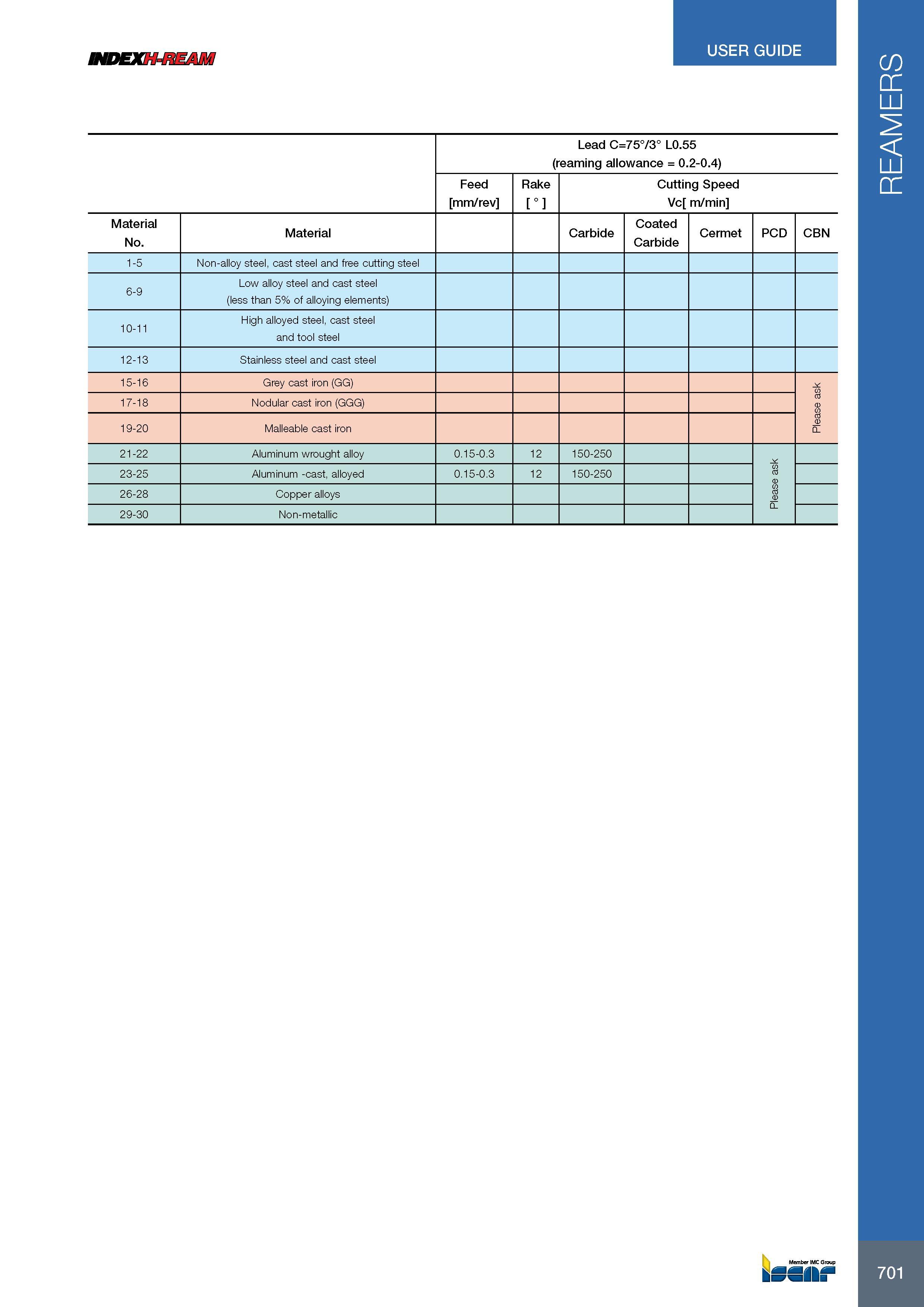

INDEXH-REAM Lead C=75°/3° L0.55 (reaming allowance = 0.2-0.4) Feed mm/rev Rake ° Cutting Speed Vc m/min Material No. Material Carbide Coated Carbide Cermet PCD CBN 1-5 Non-alloy steel, cast steel and free cutting steel 6-9 Low alloy steel and cast steel (less than 5% of alloying elements) 10-11 High alloyed steel, cast steel and tool steel 12-13 Stainless steel and cast steel 15-16 Grey cast iron (GG) Please ask 17-18 Nodular cast iron (GGG) 19-20 Malleable cast iron 21-22 Aluminum wrought alloy 0.15-0.3 12 150-250 Please ask 23-25 Aluminum -cast, alloyed 0.15-0.3 12 150-250 26-28 Copper alloys 29-30 Non-metallic Member IMC Group kSSlIf USER GUIDE REAMERS
