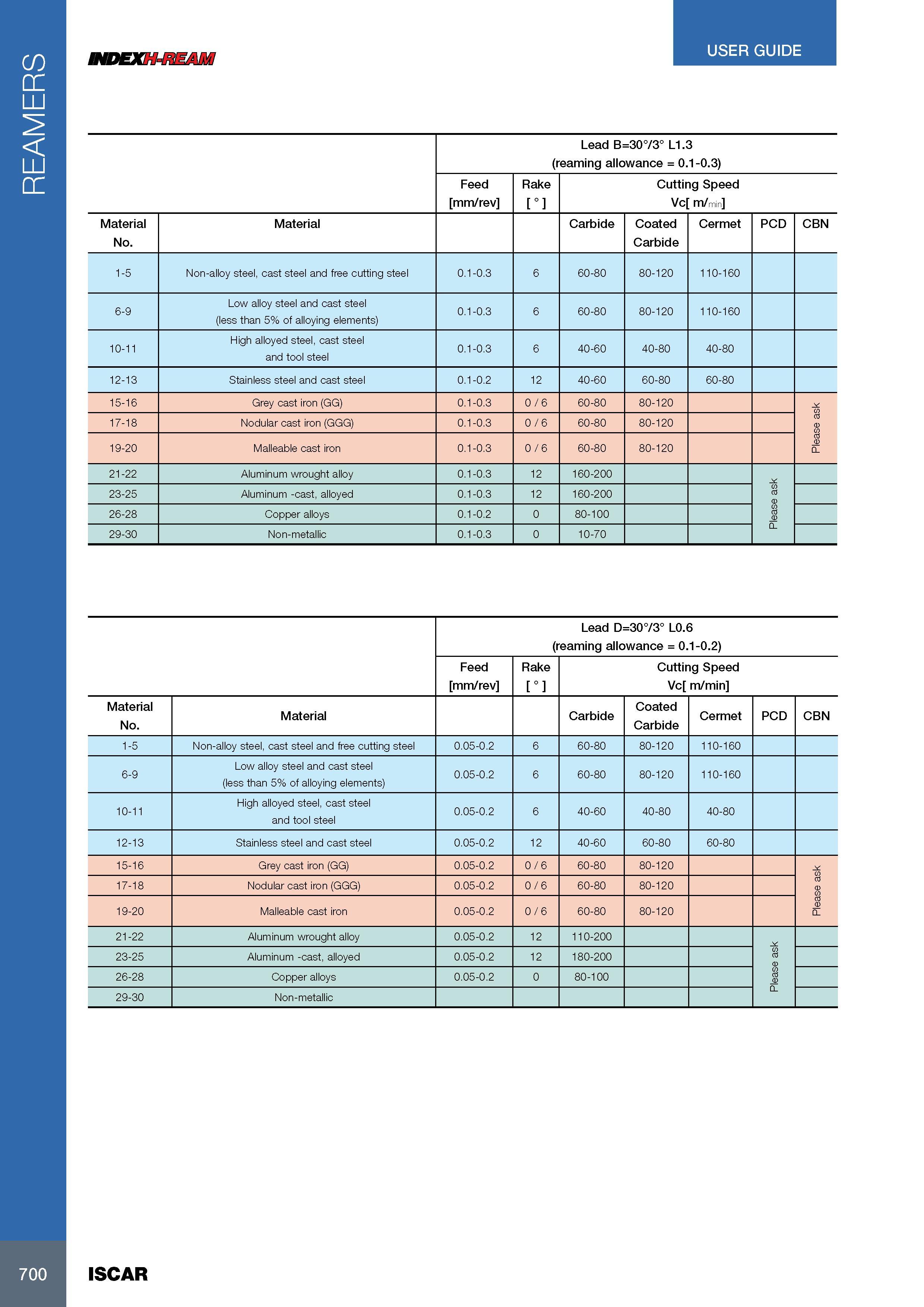

REAMERS NDEXH-REAM Lead B=30°/3° L1.3 (reaming allowance = 0.1-0.3) Feed mm/rev Rake ° Cuttir Vc ig Speed m/min Material No. Material Carbide Coated Carbide Cermet PCD CBN 1-5 Non-alloy steel, cast steel and free cutting steel 0.1-0.3 6 60-80 80-120 110-160 6-9 Low alloy steel and cast steel (less than 5% of alloying elements) 0.1-0.3 6 60-80 80-120 110-160 10-11 High alloyed steel, cast steel and tool steel 0.1-0.3 6 40-60 40-80 40-80 12-13 Stainless steel and cast steel 0.1-0.2 12 40-60 60-80 60-80 15-16 Grey cast iron (GG) 0.1-0.3 0 / 6 60-80 80-120 Please ask 17-18 Nodular cast iron (GGG) 0.1-0.3 0 / 6 60-80 80-120 19-20 Malleable cast iron 0.1-0.3 0 / 6 60-80 80-120 21-22 Aluminum wrought alloy 0.1-0.3 12 160-200 Please ask 23-25 Aluminum -cast, alloyed 0.1-0.3 12 160-200 26-28 Copper alloys 0.1-0.2 0 80-100 29-30 Non-metallic 0.1-0.3 0 10-70 Lead D=30°/3° L0.6 (reaming allowance = 0.1-0.2) Feed mm/rev Rake ° Cutting Speed Vc m/min Material No. Material Carbide Coated Carbide Cermet PCD CBN 1-5 Non-alloy steel, cast steel and free cutting steel 0.05-0.2 6 60-80 80-120 110-160 6-9 Low alloy steel and cast steel (less than 5% of alloying elements) 0.05-0.2 6 60-80 80-120 110-160 10-11 High alloyed steel, cast steel and tool steel 0.05-0.2 6 40-60 40-80 40-80 12-13 Stainless steel and cast steel 0.05-0.2 12 40-60 60-80 60-80 15-16 Grey cast iron (GG) 0.05-0.2 0 / 6 60-80 80-120 Please ask 17-18 Nodular cast iron (GGG) 0.05-0.2 0 / 6 60-80 80-120 19-20 Malleable cast iron 0.05-0.2 0 / 6 60-80 80-120 21-22 Aluminum wrought alloy 0.05-0.2 12 110-200 Please ask 23-25 Aluminum -cast, alloyed 0.05-0.2 12 180-200 26-28 Copper alloys 0.05-0.2 0 80-100 29-30 Non-metallic USER GUIDE 700 ISCAR
