697 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.693

Каталог ISCAR 2017 Ротационный инструмент Стр. 693 0697 ENG Lab2u

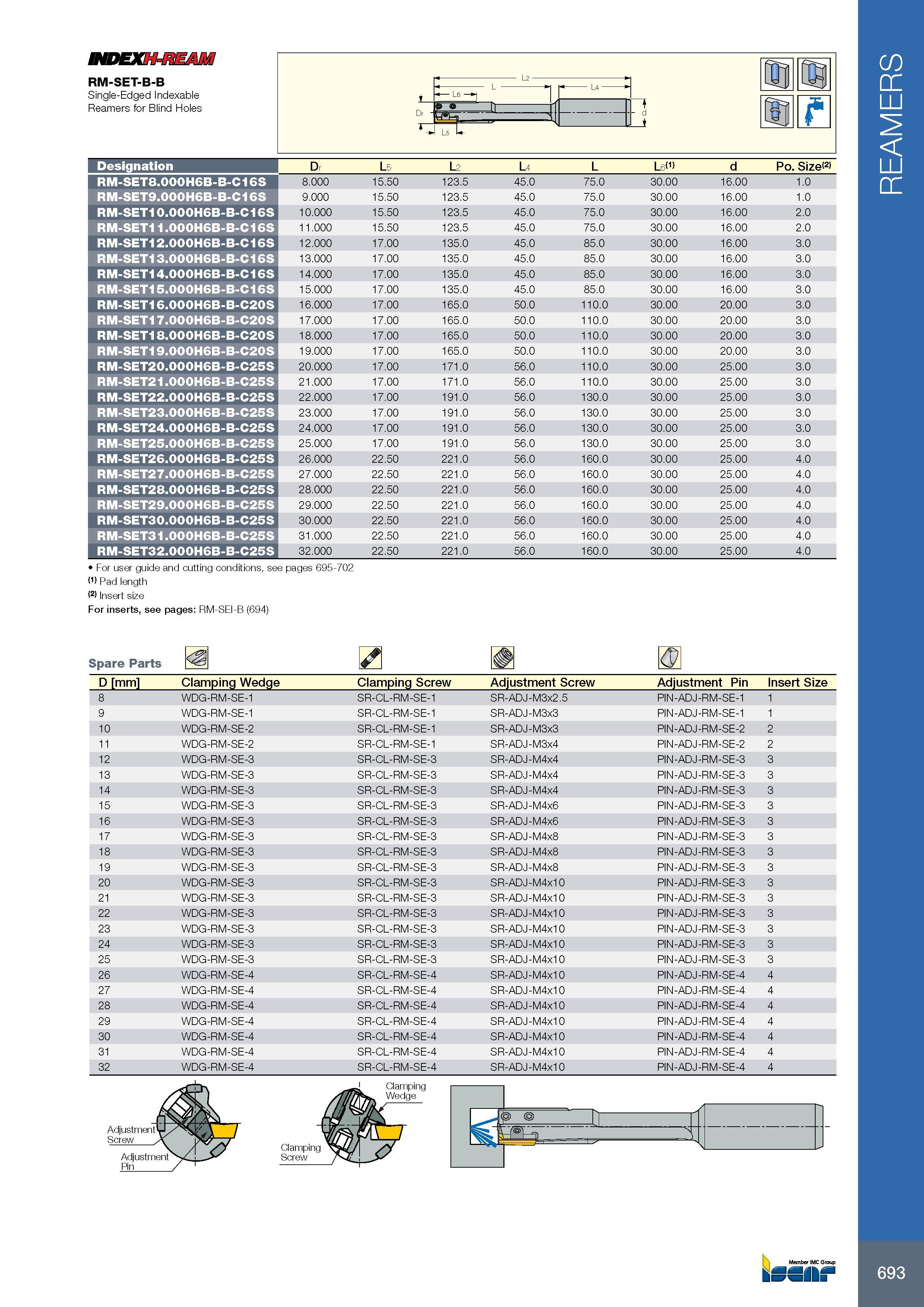

NDEXH-REAM RM-SET-B-B Single-Edged Indexable Reamers for Blind Holes Обозначение Designation RM-SET8.000H6B-B-C16S RM-SET9.000H6B-B-C16S RM-SET10.000H6B-B-C16S RM-SET11.000H6B-B-C16S RM-SET12.000H6B-B-C16S RM-SET13.000H6B-B-C16S RM-SET14.000H6B-B-C16S RM-SET15.000H6B-B-C16S RM-SET16.000H6B-B-C20S RM-SET17.000H6B-B-C20S RM-SET18.000H6B-B-C20S RM-SET19.000H6B-B-C20S RM-SET20.000H6B-B-C25S RM-SET21.000H6B-B-C25S RM-SET22.000H6B-B-C25S RM-SET23.000H6B-B-C25S RM-SET24.000H6B-B-C25S RM-SET25.000H6B-B-C25S RM-SET26.000H6B-B-C25S RM-SET27.000H6B-B-C25S RM-SET28.000H6B-B-C25S RM-SET29.000H6B-B-C25S RM-SET30.000H6B-B-C25S RM-SET31.000H6B-B-C25S RM-SET32.000H6B-B-C25S Dr 8.000 9.000 10.000 11.000 12.000 13.000 14.000 15.000 16.000 17.000 18.000 19.000 20.000 21.000 22.000 23.000 24.000 25.000 26.000 27.000 28.000 29.000 30.000 31.000 32.000 L5 15.50 15.50 15.50 15.50 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 17.00 22.50 22.50 22.50 22.50 22.50 22.50 22.50 L2 L4 Let1) 123.5 123.5 123.5 123.5 135.0 135.0 135.0 135.0 165.0 165.0 165.0 165.0 171.0 171.0 191.0 191.0 191.0 191.0 221.0 221.0 221.0 221.0 221.0 221.0 221.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 50.0 50.0 50.0 50.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 56.0 75.0 75.0 75.0 75.0 85.0 85.0 85.0 85.0 110.0 110.0 110.0 110.0 110.0 110.0 130.0 130.0 130.0 130.0 160.0 160.0 160.0 160.0 160.0 160.0 160.0 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 d 16.00 16.00 16.00 16.00 16.00 16.00 16.00 16.00 20.00 20.00 20.00 20.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 25.00 Po. Size(2) 1.0 1.0 2.0 2.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 For user guide and cutting conditions, see pages 695-702 W Pad length t2) Insert size For inserts, see pages: RM-SEI-B (694) Spare Parts D Tmml Clamping Wedge Clamping Screw Adjustment Screw Adjustment Pin Insert Size 8 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x2.5 PIN-ADJ-RM-SE-1 1 9 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-1 1 10 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-2 2 11 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x4 PIN-ADJ-RM-SE-2 2 12 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 13 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 14 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 15 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3 16 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3 17 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 18 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 19 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 20 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 21 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 22 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 23 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 24 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 25 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 26 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 27 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 28 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 29 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 30 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 31 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 32 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 Clamping Wedge j n - Member IMC Group kSSII t 693 REAMERS
