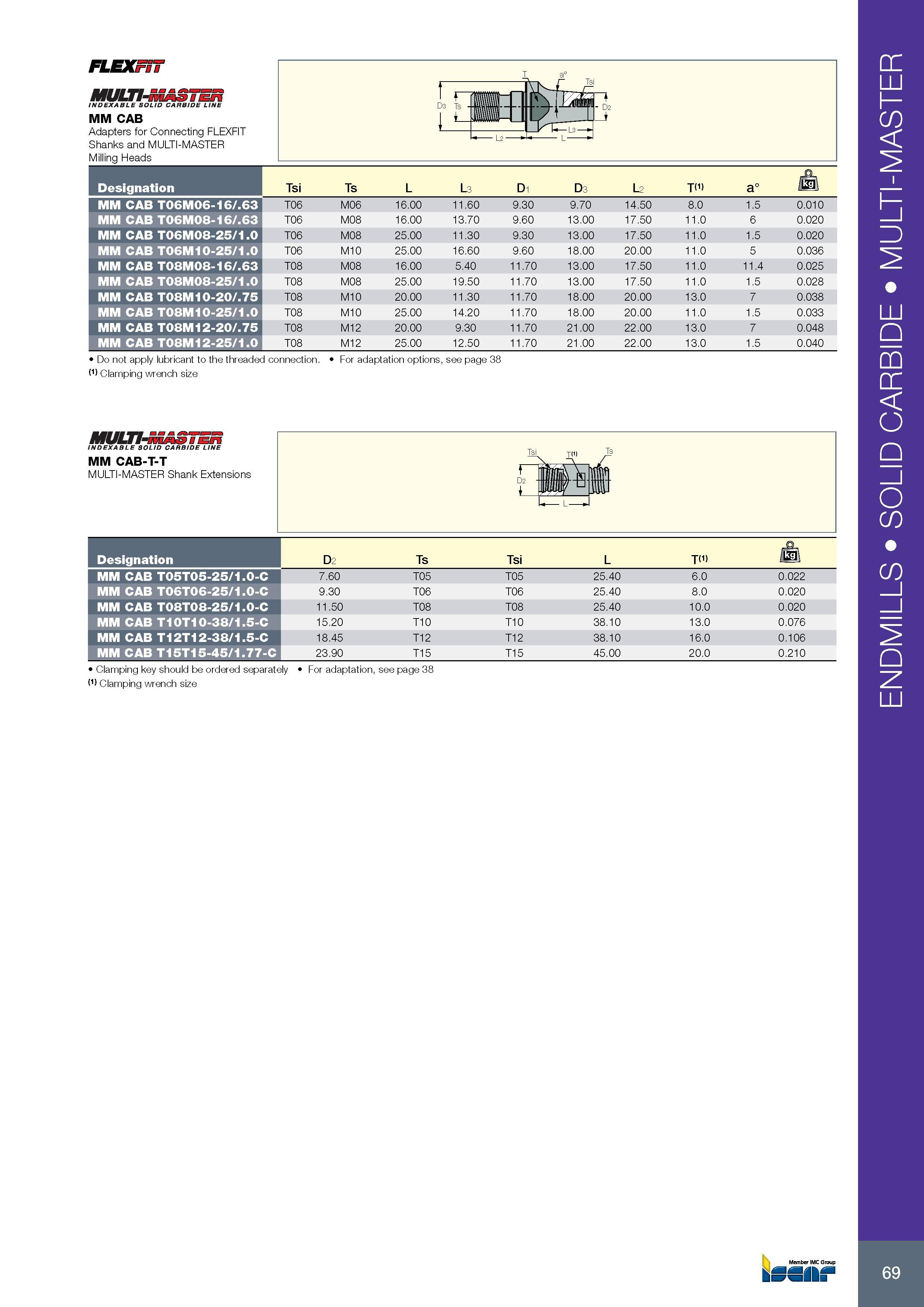

69 FLEXFiT MULTI-i INDEXABLE SOLID CARBIDE LINE MM CAB Adapters for Connecting FLEXFIT Shanks and MULTI-MASTER Milling Heads Обозначение Designation Tsi Ts L L 3 D1 D3 L2 TM) a° fkm MM CAB T06M06-16/.63 T06 M06 16.00 11.60 9.30 9.70 14.50 8.0 1.5 0.010 MM CAB T06M08-16/.63 T06 M08 16.00 13.70 9.60 13.00 17.50 11.0 6 0.020 MM CAB T06M08-25/1.0 T06 M08 25.00 11.30 9.30 13.00 17.50 11.0 1.5 0.020 MM CAB T06M10-25/1.0 T06 M10 25.00 16.60 9.60 18.00 20.00 11.0 5 0.036 MM CAB T08M08-16/.63 T08 M08 16.00 5.40 11.70 13.00 17.50 11.0 11.4 0.025 MM CAB T08M08-25/1.0 T08 M08 25.00 19.50 11.70 13.00 17.50 11.0 1.5 0.028 MM CAB T08M10-20/.75 T08 M10 20.00 11.30 11.70 18.00 20.00 13.0 7 0.038 MM CAB T08M10-25/1.0 T08 M10 25.00 14.20 11.70 18.00 20.00 11.0 1.5 0.033 MM CAB T08M12-20/.75 T08 M12 20.00 9.30 11.70 21.00 22.00 13.0 7 0.048 MM CAB T08M12-25/1.0 T08 M12 25.00 12.50 11.70 21.00 22.00 13.0 1.5 0.040 Do not apply lubricant to the threaded connection. (1) Clamping wrench size For adaptation options, see page 38 MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM CAB-T-T MULTI-MASTER Shank Extensions Обозначение Designation D2 Ts Tsi L TM) pm MM CAB T05T05-25/1.0-C 7.60 T05 T05 25.40 6.0 0.022 MM CAB T06T06-25/1.0-C 9.30 T06 T06 25.40 8.0 0.020 MM CAB T08T08-25/1.0-C 11.50 T08 T08 25.40 10.0 0.020 MM CAB T10T10-38/1.5-C 15.20 T10 T10 38.10 13.0 0.076 MM CAB T12T12-38/1.5-C 18.45 T12 T12 38.10 16.0 0.106 MM CAB T15T15-45/1.77-C 23.90 T15 T15 45.00 20.0 0.210 Clamping key should be ordered separately For adaptation, see page 38 (1) Clamping wrench size ENDMILLS SOLID CARBIDE MULTI-MASTER
