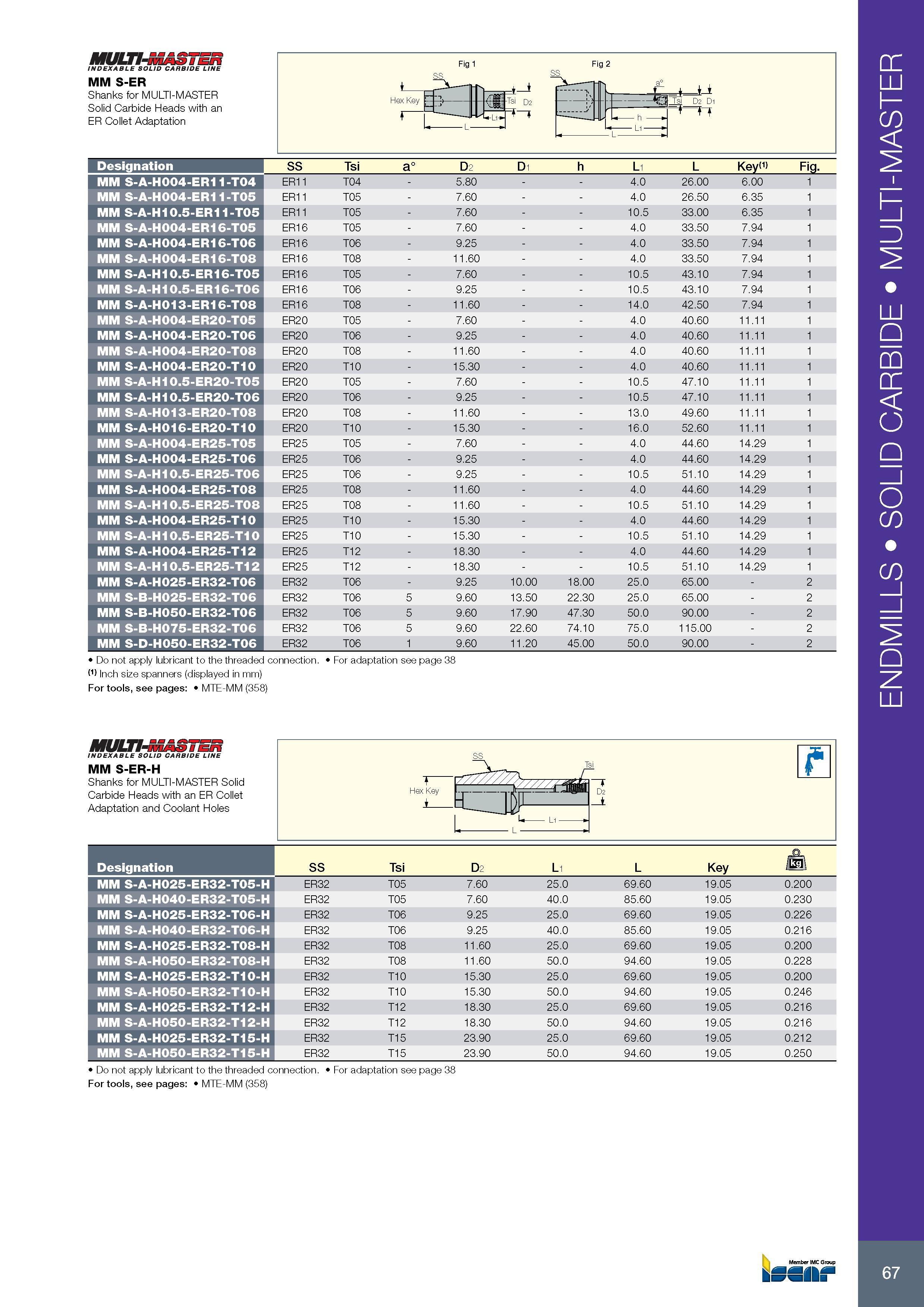

Держатели сменных режущих твердосплавных головок Iscar для фрезерования со стандартным конусом для зажима в цанговых патронах ER MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM S-ER Shanks for MULTI-MASTER Solid Carbide Heads with an ER Collet Adaptation Обозначение Designation SS Tsi a° D2 D1 h L1 L Key 1) Fig. MM S-A-H004-ER11-T04 ER11 T04 - 5.80 4.0 26.00 6.00 1 MM S-A-H004-ER11-T05 ER11 T05 - 7.60 4.0 26.50 6.35 1 MM S-A-H10.5-ER11-T05 ER11 T05 - 7.60 10.5 33.00 6.35 1 MM S-A-H004-ER16-T05 ER16 T05 - 7.60 4.0 33.50 7.94 1 MM S-A-H004-ER16-T06 ER16 T06 - 9.25 4.0 33.50 7.94 1 MM S-A-H004-ER16-T08 ER16 T08 - 11.60 4.0 33.50 7.94 1 MM S-A-H10.5-ER16-T05 ER16 T05 - 7.60 10.5 43.10 7.94 1 MM S-A-H10.5-ER16-T06 ER16 T06 - 9.25 10.5 43.10 7.94 1 MM S-A-H013-ER16-T08 ER16 T08 - 11.60 14.0 42.50 7.94 1 MM S-A-H004-ER20-T05 ER20 T05 - 7.60 4.0 40.60 11.11 1 MM S-A-H004-ER20-T06 ER20 T06 - 9.25 4.0 40.60 11.11 1 MM S-A-H004-ER20-T08 ER20 T08 - 11.60 4.0 40.60 11.11 1 MM S-A-H004-ER20-T10 ER20 T10 - 15.30 4.0 40.60 11.11 1 MM S-A-H10.5-ER20-T05 ER20 T05 - 7.60 10.5 47.10 11.11 1 MM S-A-H10.5-ER20-T06 ER20 T06 - 9.25 10.5 47.10 11.11 1 MM S-A-H013-ER20-T08 ER20 T08 - 11.60 13.0 49.60 11.11 1 MM S-A-H016-ER20-T10 ER20 T10 - 15.30 16.0 52.60 11.11 1 MM S-A-H004-ER25-T05 ER25 T05 - 7.60 4.0 44.60 14.29 1 MM S-A-H004-ER25-T06 ER25 T06 - 9.25 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T06 ER25 T06 - 9.25 10.5 51.10 14.29 1 MM S-A-H004-ER25-T08 ER25 T08 - 11.60 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T08 ER25 T08 - 11.60 10.5 51.10 14.29 1 MM S-A-H004-ER25-T10 ER25 T10 - 15.30 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T10 ER25 T10 - 15.30 10.5 51.10 14.29 1 MM S-A-H004-ER25-T12 ER25 T12 - 18.30 4.0 44.60 14.29 1 MM S-A-H10.5-ER25-T12 ER25 T12 - 18.30 10.5 51.10 14.29 1 MM S-A-H025-ER32-T06 ER32 T06 - 9.25 10.00 18.00 25.0 65.00 - 2 MM S-B-H025-ER32-T06 ER32 T06 5 9.60 13.50 22.30 25.0 65.00 - 2 MM S-B-H050-ER32-T06 ER32 T06 5 9.60 17.90 47.30 50.0 90.00 - 2 MM S-B-H075-ER32-T06 ER32 T06 5 9.60 22.60 74.10 75.0 115.00 - 2 MM S-D-H050-ER32-T06 ER32 T06 1 9.60 11.20 45.00 50.0 90.00 - 2 Do not apply lubricant to the threaded connection. For adaptation see page 38 (1) Inch size spanners (displayed in mm) For tools, see pages: MTE-MM (358) MULTI-i INDEXABLE SOLID CARBIDE LINE MM S-ER-H Shanks for MULTI-MASTER Solid Carbide Heads with an ER Collet Adaptation and Coolant Holes T Hex Key i Обозначение Designation SS Tsi D2 L1 L Key MM S-A-H025-ER32-T05-H ER32 T05 7.60 25.0 69.60 19.05 0.200 MM S-A-H040-ER32-T05-H ER32 T05 7.60 40.0 85.60 19.05 0.230 MM S-A-H025-ER32-T06-H ER32 T06 9.25 25.0 69.60 19.05 0.226 MM S-A-H040-ER32-T06-H ER32 T06 9.25 40.0 85.60 19.05 0.216 MM S-A-H025-ER32-T08-H ER32 T08 11.60 25.0 69.60 19.05 0.200 MM S-A-H050-ER32-T08-H ER32 T08 11.60 50.0 94.60 19.05 0.228 MM S-A-H025-ER32-T10-H ER32 T10 15.30 25.0 69.60 19.05 0.200 MM S-A-H050-ER32-T10-H ER32 T10 15.30 50.0 94.60 19.05 0.246 MM S-A-H025-ER32-T12-H ER32 T12 18.30 25.0 69.60 19.05 0.216 MM S-A-H050-ER32-T12-H ER32 T12 18.30 50.0 94.60 19.05 0.216 MM S-A-H025-ER32-T15-H ER32 T15 23.90 25.0 69.60 19.05 0.212 MM S-A-H050-ER32-T15-H ER32 T15 23.90 50.0 94.60 19.05 0.250 Do not apply lubricant to the threaded connection. For adaptation see page 38 For tools, see pages: MTE-MM (358) SS ENDMILLS SOLID CARBIDE MULTI-MASTER
