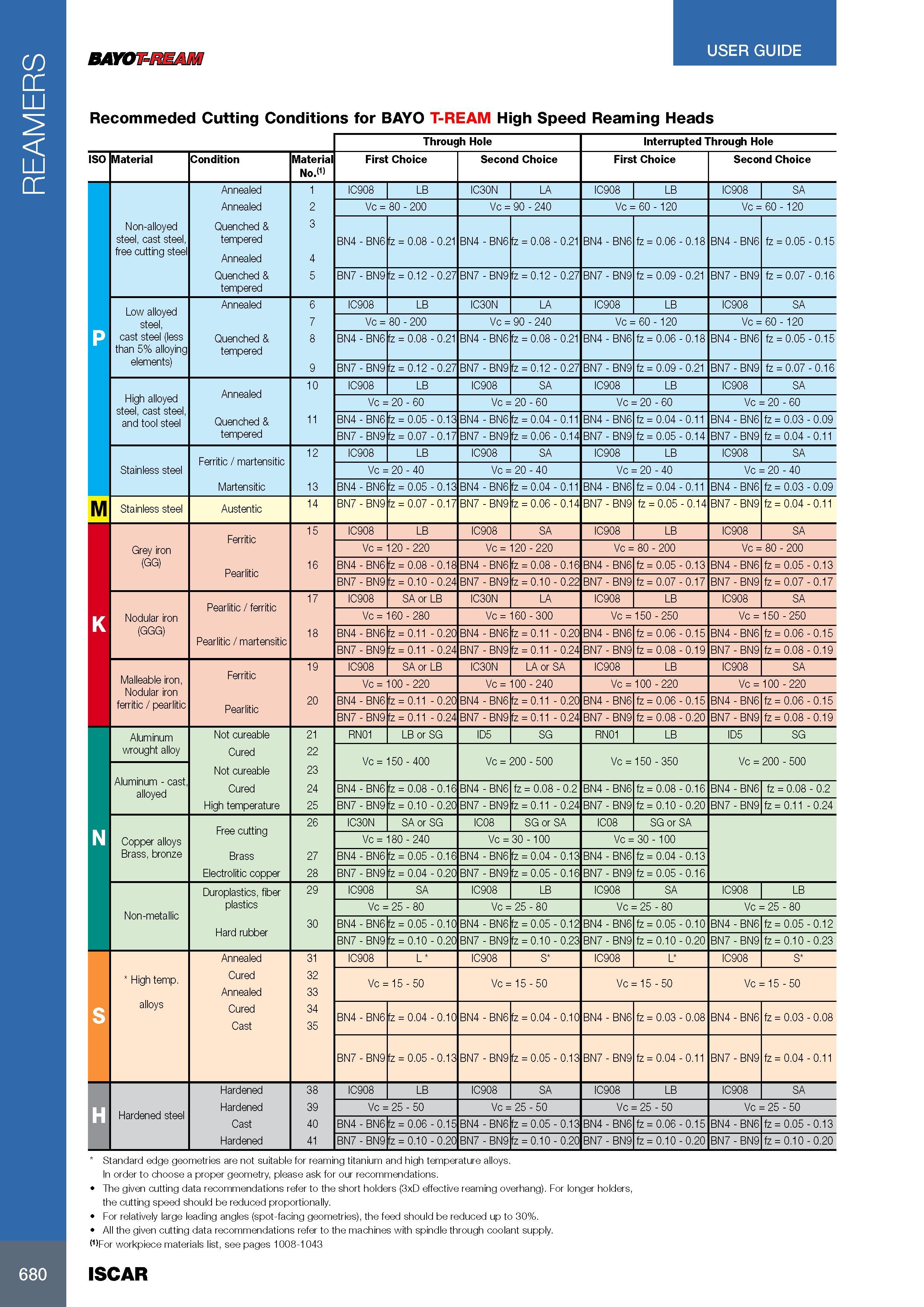

REAMERS USER GUIDE BAYOT-REAM Recommeded Cutting Conditions for BAYO T-REAM High Speed Reaming Heads Through Hole Interrupted Through Hole ISO Material Condition Material No.(1) First Choice Second Choice First Choice Second Choice Annealed 1 IC908 LB IC30N LA IC908 LB IC908 SA Annealed 2 Vc = 80 - 200 Vc = 90 - 240 Vc 60 - 120 Vc = 60 - 120 Non-alloyed steel, cast steel, free cutting steel Quenched & tempered Annealed 3 4 BN4-BN6 fz = 0.08 - 0.21 BN4-BN6 fz = 0.08 - 0.21 BN4-BN6 fz = 0.06 - 0.18 BN4 - BN6 fz = 0.05 - 0.15 Quenched & tempered 5 BN7-BN9 fz = 0.12 - 0.27 BN7-BN9 fz = 0.12 - 0.27 BN7-BN9 fz = 0.09 - 0.21 BN7 - BN9 fz = 0.07 - 0.16 Low alloyed steel, Annealed 6 IC908 LB IC30N LA IC908 LB IC908 SA 7 Vc = 80 - 200 Vc = 90 - 240 Vc 60 - 120 Vc = 60 - 120 P cast steel (less than 5% alloying elements) Quenched & tempered 8 BN4-BN6 fz = 0.08 - 0.21 BN4-BN6 fz = 0.08 - 0.21 BN4-BN6 fz = 0.06 - 0.18 BN4 - BN6 fz = 0.05 - 0.15 9 BN7-BN9 fz = 0.12 - 0.27 BN7-BN9 fz = 0.12 - 0.27 BN7-BN9 fz = 0.09 - 0.21 BN7 - BN9 fz = 0.07 - 0.16 High alloyed steel, cast steel, and tool steel Annealed 10 IC908 LB IC908 SA IC908 LB IC908 SA Vc = 20 - 60 Vc = 20 - 60 Vc 20 - 60 Vc = = 20 - 60 Quenched & 11 BN4-BN6 fz = 0.05 - 0.13 BN4-BN6 fz = 0.04 - 0.11 BN4-BN6 fz = 0.04 - 0.11 BN4 - BN6 fz = 0.03 - 0.09 tempered BN7-BN9 fz = 0.07 - 0.17 BN7-BN9 fz = 0.06 - 0.14 BN7-BN9 fz = 0.05 - 0.14 BN7 - BN9 fz = 0.04 - 0.11 Ferritic / martensitic 12 IC908 LB IC908 SA IC908 LB IC908 SA Stainless steel Vc = 20 - 40 Vc = 20 - 40 Vc 20 - 40 Vc = = 20 - 40 Martensitic 13 BN4-BN6 fz = 0.05 - 0.13 BN4-BN6 fz = 0.04 - 0.11 BN4-BN6 fz = 0.04 - 0.11 BN4 - BN6 fz = 0.03 - 0.09 M Stainless steel Austentic 14 BN7-BN9 fz = 0.07 - 0.17 BN7-BN9 fz = 0.06 - 0.14 BN7-BN9 fz = 0.05 - 0.14 BN7 - BN9 fz = 0.04 - 0.11 Ferritic 15 IC908 LB IC908 SA IC908 LB IC908 SA Grey iron Vc = 120 - 220 Vc = 120 - 220 Vc = 80 - 200 Vc = 80 - 200 (GG) Pearlitic 16 BN4-BN6 fz = 0.08 - 0.18 BN4-BN6 fz = 0.08 - 0.16 BN4-BN6 fz = 0.05 - 0.13 BN4 - BN6 fz = 0.05 - 0.13 BN7-BN9 fz = 0.10 - 0.24 BN7-BN9 fz = 0.10 - 0.22 BN7-BN9 fz = 0.07 - 0.17 BN7 - BN9 fz = 0.07 - 0.17 Pearlitic / ferritic 17 IC908 SA or LB IC30N LA IC908 LB IC908 SA K Nodular iron Vc = 160 - 280 Vc = 160 - 300 Vc = 150 - 250 Vc = 150 - 250 (GGG) Pearlitic / martensitic 18 BN4-BN6 fz = 0.11 - 0.20 BN4-BN6 fz = 0.11 - 0.20 BN4-BN6 fz = 0.06 - 0.15 BN4 - BN6 fz = 0.06 - 0.15 BN7-BN9 fz = 0.11 - 0.24 BN7-BN9 fz = 0.11 - 0.24 BN7-BN9 fz = 0.08 - 0.19 BN7 - BN9 fz = 0.08 - 0.19 Malleable iron, Nodular iron ferritic / pearlitic Ferritic 19 IC908 SA or LB IC30N LA or SA IC908 LB IC908 SA Vc = 100 - 220 Vc = 100 - 240 Vc = 100 - 220 Vc = 100 - 220 Pearlitic 20 BN4-BN6 fz = 0.11 - 0.20 BN4-BN6 fz = 0.11 - 0.20 BN4-BN6 fz = 0.06 - 0.15 BN4 - BN6 fz = 0.06 - 0.15 BN7-BN9 fz = 0.11 - 0.24 BN7-BN9 fz = 0.11 - 0.24 BN7-BN9 fz = 0.08 - 0.20 BN7 - BN9 fz = 0.08 - 0.19 Aluminum Not cureable 21 RN01 LB or SG ID5 SG RN01 LB ID5 SG wrought alloy Cured 22 Vc = 150 - 400 Vc = 200 - 500 Vc = 150 - 350 Vc = 200 - 500 Aluminum - cast, alloyed Not cureable 23 Cured 24 BN4-BN6 fz = 0.08 - 0.16 BN4-BN6 fz = 0.08 - 0.2 BN4-BN6 fz = 0.08 - 0.16 BN4 - BN6 fz = 0.08 - 0.2 High temperature 25 BN7-BN9 fz = 0.10 - 0.20 BN7-BN9 fz = 0.11 - 0.24 BN7-BN9 fz = 0.10 - 0.20 BN7 - BN9 fz = 0.11 - 0.24 Free cutting 26 IC30N SA or SG IC08 SG or SA IC08 SG or SA N Copper alloys Vc = 180 - 240 Vc = 30 - 100 Vc = 30 - 100 Brass, bronze Brass 27 BN4-BN6 fz = 0.05 - 0.16 BN4-BN6 fz = 0.04 - 0.13 BN4-BN6 fz = 0.04 - 0.13 Electrolitic copper 28 BN7-BN9 fz = 0.04 - 0.20 BN7-BN9 fz = 0.05 - 0.16 BN7-BN9 fz = 0.05 - 0.16 Duroplastics, fiber 29 IC908 SA IC908 LB IC908 SA IC908 LB Non-metallic plastics Vc = 25 - 80 Vc = 25 - 80 Vc 25 - 80 Vc = = 25 - 80 Hard rubber 30 BN4-BN6 fz = 0.05 - 0.10 BN4-BN6 fz = 0.05 - 0.12 BN4-BN6 fz = 0.05 - 0.10 BN4 - BN6 fz = 0.05 - 0.12 BN7-BN9 fz = 0.10 - 0.20 BN7-BN9 fz = 0.10 - 0.23 BN7-BN9 fz = 0.10 - 0.20 BN7 - BN9 fz = 0.10 - 0.23 Annealed 31 IC908 L IC908 S IC908 L IC908 S High temp. Cured Annealed 32 33 Vc = 15 - 50 Vc = 15 - 50 Vc 15 - 50 Vc = = 15 - 50 S alloys Cured Cast 34 35 BN4-BN6 fz = 0.04 - 0.10 BN4-BN6 fz = 0.04 - 0.10 BN4-BN6 fz = 0.03 - 0.08 BN4 - BN6 fz = 0.03 - 0.08 BN7-BN9 fz = 0.05 - 0.13 BN7-BN9 fz = 0.05 - 0.13 BN7-BN9 fz = 0.04 - 0.11 BN7 - BN9 fz = 0.04 - 0.11 Hardened 38 IC908 LB IC908 SA IC908 LB IC908 SA Hardened 39 Vc = : 25 - 50 Vc = : 25 - 50 Vc = = 25 - 50 Vc = = 25 - 50 Hardened steel Cast 40 BN4-BN6 fz = 0.06 - 0.15 BN4-BN6 fz = 0.05 - 0.13 BN4-BN6 fz = 0.06 - 0.15 BN4 - BN6 fz = 0.05 - 0.13 Hardened 41 BN7-BN9 fz = 0.10 - 0.20 BN7-BN9 fz = 0.10 - 0.20 BN7-BN9 fz = 0.10 - 0.20 BN7 - BN9 fz = 0.10 - 0.20 Standard edge geometries are not suitable for reaming titanium and high temperature alloys. In order to choose a proper geometry, please ask for our recommendations. The given cutting data recommendations refer to the short holders (3xD effective reaming overhang). For longer holders, the cutting speed should be reduced proportionally. For relatively large leading angles (spot-facing geometries), the feed should be reduced up to 30%. All the given cutting data recommendations refer to the machines with spindle through coolant supply. (1)For workpiece materials list, see pages 1008-1043 680 ISCAR
