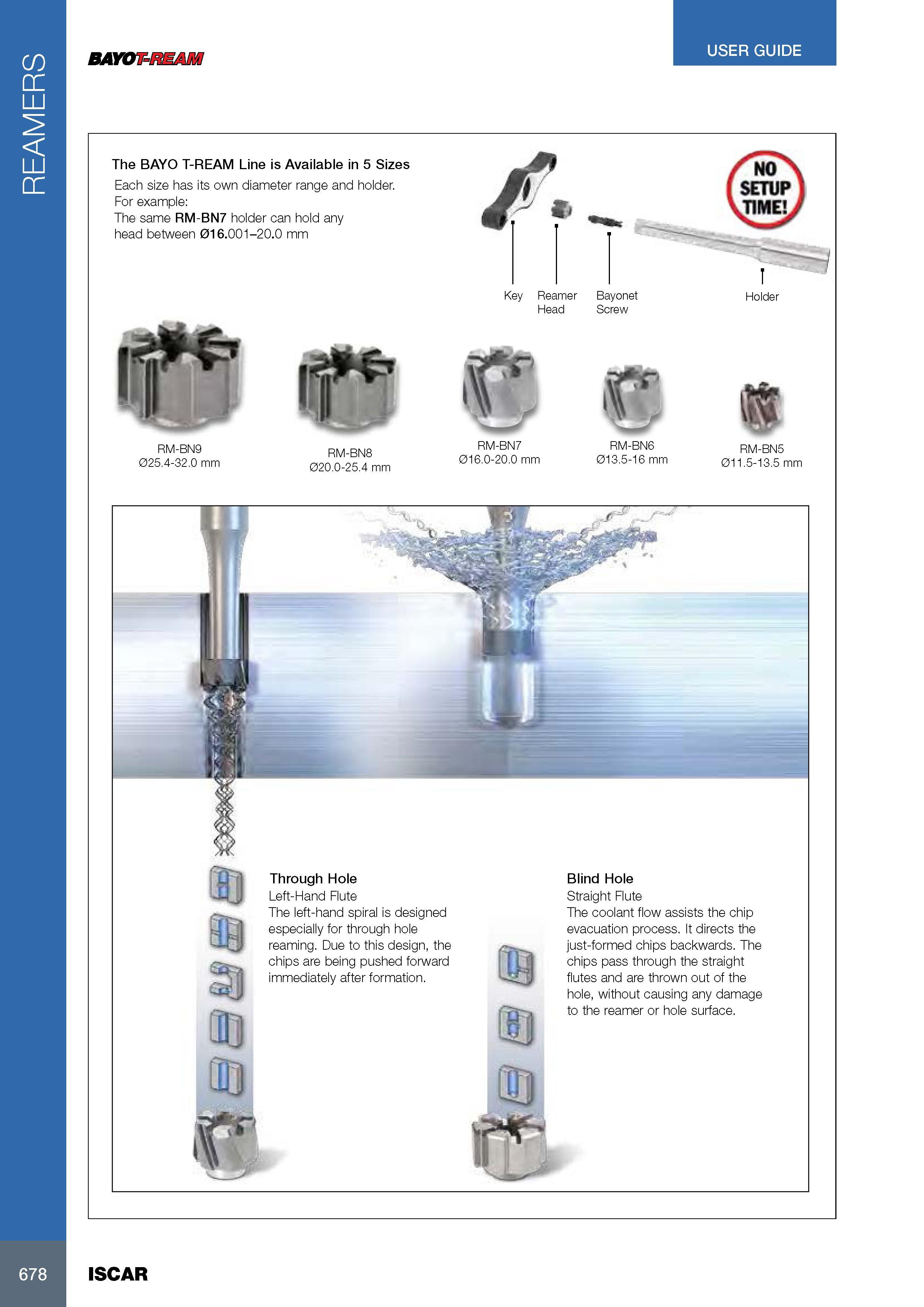

REAMERS 678 BAYOT-REAM USER GUIDE Through Hole Left-Hand Flute The left-hand spiral is designed especially for through hole reaming. Due to this design, the chips are being pushed forward immediately after formation. Blind Hole Straight Flute The coolant flow assists the chip evacuation process. It directs the just-formed chips backwards. The chips pass through the straight flutes and are thrown out of the hole, without causing any damage to the reamer or hole surface. NO SETUP TIME Bayonet Holder Screw RM-BN6 RM-BN5 013.5-16 mm 011.5-13.5 mm The BAYO T-REAM Line is Available in 5 Sizes Each size has its own diameter range and holder. For example: The same RM-BN7 holder can hold any head between 016.001-20.0 mm Key Reamer Head RM-BN7 016.0-20.0 mm ISCAR
