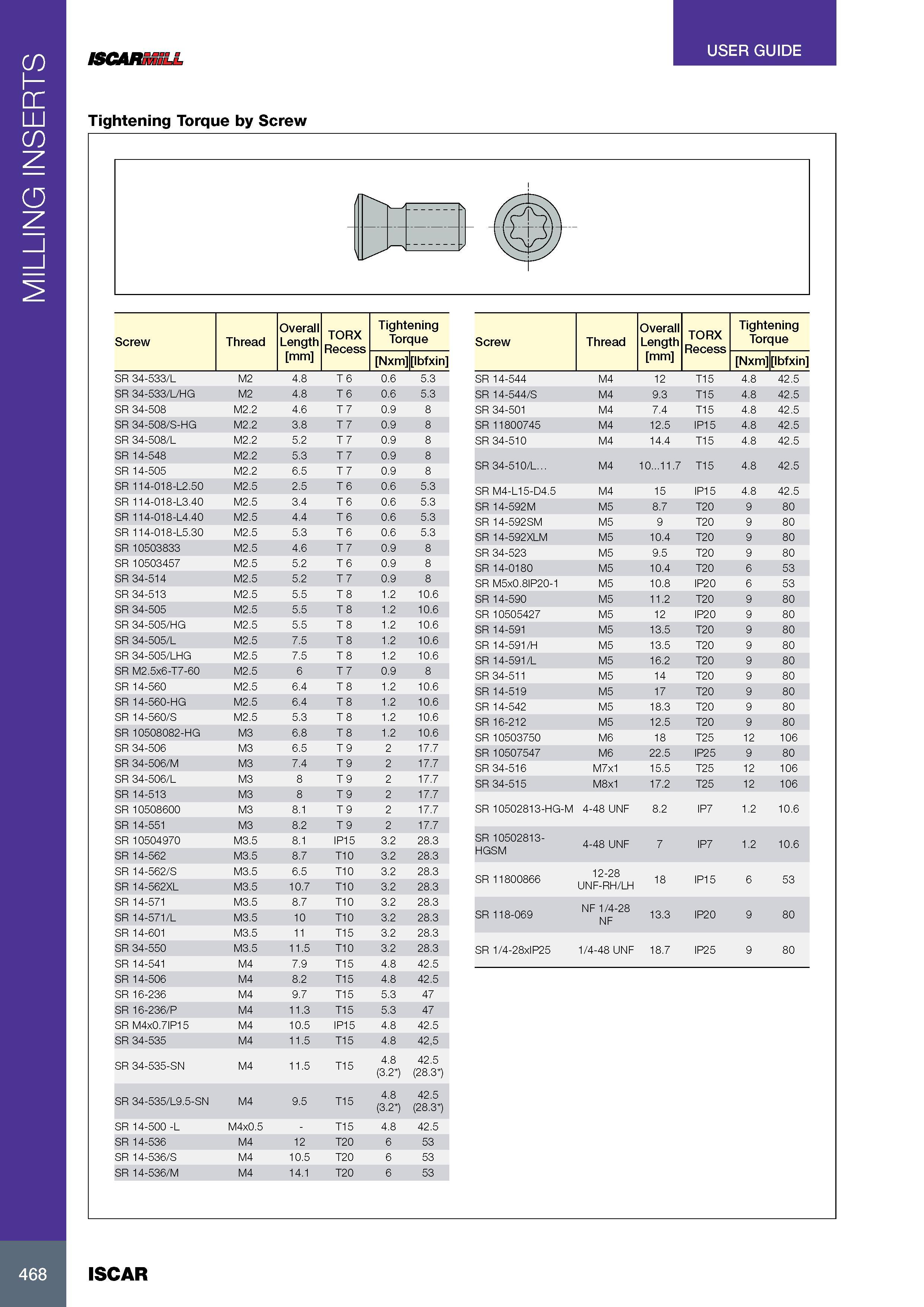

MILLING INSERTS USER GUIDE ISCARMILL Tightening Torque by Screw Screw Thread Overall Length TORX Recess Tightening Torque mm Nxm lbfxin SR 34-533/L M2 4.8 T 6 0.6 5.3 SR 34-533/L/HG M2 4.8 T 6 0.6 5.3 SR 34-508 M2.2 4.6 T 7 0.9 8 SR 34-508/S-HG M2.2 3.8 T 7 0.9 8 SR 34-508/L M2.2 5.2 T 7 0.9 8 SR 14-548 M2.2 5.3 T 7 0.9 8 SR 14-505 M2.2 6.5 T 7 0.9 8 SR 114-018-L2.50 M2.5 2.5 T 6 0.6 5.3 SR 114-018-L3.40 M2.5 3.4 T 6 0.6 5.3 SR 114-018-L4.40 M2.5 4.4 T 6 0.6 5.3 SR 114-018-L5.30 M2.5 5.3 T 6 0.6 5.3 SR 10503833 M2.5 4.6 T 7 0.9 8 SR 10503457 M2.5 5.2 T 6 0.9 8 SR 34-514 M2.5 5.2 T 7 0.9 8 SR 34-513 M2.5 5.5 T 8 1.2 10.6 SR 34-505 M2.5 5.5 T 8 1.2 10.6 SR 34-505/HG M2.5 5.5 T 8 1.2 10.6 SR 34-505/L M2.5 7.5 T 8 1.2 10.6 SR 34-505/LHG M2.5 7.5 T 8 1.2 10.6 SR M2.5x6-T7-60 M2.5 6 T 7 0.9 8 SR 14-560 M2.5 6.4 T 8 1.2 10.6 SR 14-560-HG M2.5 6.4 T 8 1.2 10.6 SR 14-560/S M2.5 5.3 T 8 1.2 10.6 SR 10508082-HG M3 6.8 T 8 1.2 10.6 SR 34-506 M3 6.5 T 9 2 17.7 SR 34-506/M M3 7.4 T 9 2 17.7 SR 34-506/L M3 8 T 9 2 17.7 SR 14-513 M3 8 T 9 2 17.7 SR 10508600 M3 8.1 T 9 2 17.7 SR 14-551 M3 8.2 T 9 2 17.7 SR 10504970 M3.5 8.1 IP15 3.2 28.3 SR 14-562 M3.5 8.7 T10 3.2 28.3 SR 14-562/S M3.5 6.5 T10 3.2 28.3 SR 14-562XL M3.5 10.7 T10 3.2 28.3 SR 14-571 M3.5 8.7 T10 3.2 28.3 SR 14-571/L M3.5 10 T10 3.2 28.3 SR 14-601 M3.5 11 T15 3.2 28.3 SR 34-550 M3.5 11.5 T10 3.2 28.3 SR 14-541 M4 7.9 T15 4.8 42.5 SR 14-506 M4 8.2 T15 4.8 42.5 SR 16-236 M4 9.7 T15 5.3 47 SR 16-236/P M4 11.3 T15 5.3 47 SR M4x0.7IP15 M4 10.5 IP15 4.8 42.5 SR 34-535 M4 11.5 T15 4.8 42,5 SR 34-535-SN M4 11.5 T15 4.8 (3.2 ) 42.5 (28.3 ) SR 34-535/L9.5-SN M4 9.5 T15 4.8 (3.2 ) 42.5 (28.3 ) SR 14-500 -L M4x0.5 - T15 4.8 42.5 SR 14-536 M4 12 T20 6 53 SR 14-536/S M4 10.5 T20 6 53 SR 14-536/M M4 14.1 T20 6 53 Screw Thread Overall Length TORX Recess Tightening Torque mm Nxm lbfxin SR 14-544 M4 12 T15 4.8 42.5 SR 14-544/S M4 9.3 T15 4.8 42.5 SR 34-501 M4 7.4 T15 4.8 42.5 SR 11800745 M4 12.5 IP15 4.8 42.5 SR 34-510 M4 14.4 T15 4.8 42.5 SR 34-510/1 M4 10...11.7 T15 4.8 42.5 SR M4-L15-D4.5 M4 15 IP15 4.8 42.5 SR 14-592M M5 8.7 T20 9 80 SR 14-592SM M5 9 T20 9 80 SR 14-592XLM M5 10.4 T20 9 80 SR 34-523 M5 9.5 T20 9 80 SR 14-0180 M5 10.4 T20 6 53 SR M5x0.8IP20-1 M5 10.8 IP20 6 53 SR 14-590 M5 11.2 T20 9 80 SR 10505427 M5 12 IP20 9 80 SR 14-591 M5 13.5 T20 9 80 SR 14-591/H M5 13.5 T20 9 80 SR 14-591/L M5 16.2 T20 9 80 SR 34-511 M5 14 T20 9 80 SR 14-519 M5 17 T20 9 80 SR 14-542 M5 18.3 T20 9 80 SR 16-212 M5 12.5 T20 9 80 SR 10503750 M6 18 T25 12 106 SR 10507547 M6 22.5 IP25 9 80 SR 34-516 M7x1 15.5 T25 12 106 SR 34-515 M8x1 17.2 T25 12 106 SR 10502813-HG-M 4-48 UNF 8.2 IP7 1.2 10.6 SR 10502813-HGSM 4-48 UNF 7 IP7 1.2 10.6 SR 11800866 12-28 UNF-RH/LH 18 IP15 6 53 SR 118-069 NF 1/4-28 NF 13.3 IP20 9 80 SR 1/4-28xIP25 1/4-48 UNF 18.7 IP25 9 80 468 ISCAR
