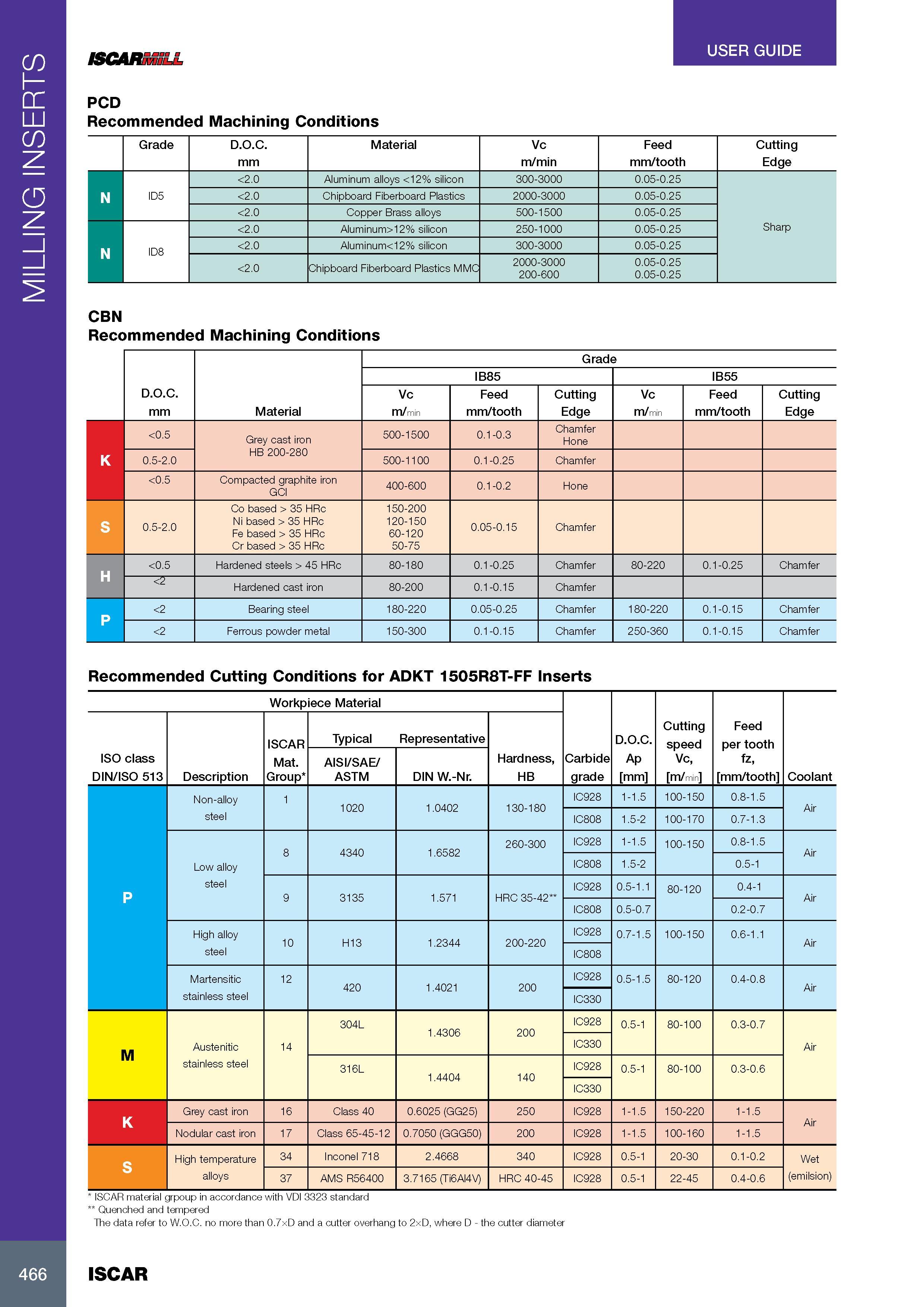

MILLING INSERTS USER GUIDE ISCARMILL PCD Recommended Machining Conditions Grade D.O.C. Material Vc Feed Cutting mm m/min mm/tooth Edge <2.0 Aluminum alloys <12% silicon 300-3000 0.05-0.25 N ID5 <2.0 Chipboard Fiberboard Plastics 2000-3000 0.05-0.25 <2.0 Copper Brass alloys 500-1500 0.05-0.25 <2.0 Aluminum>12% silicon 250-1000 0.05-0.25 Sharp N N ID8 <2.0 Aluminum<12% silicon 300-3000 0.05-0.25 <2.0 Chipboard Fiberboard Plastics MMC 2000-3000 200-600 0.05-0.25 0.05-0.25 CBN Recommended Machining Conditions Grade IB85 IB55 D.O.C. mm Material Vc m/min Feed mm/tooth Cutting Edge Vc m/min Feed mm/tooth Cutting Edge <0.5 Grey cast iron 500-1500 0.1-0.3 Chamfer Hone 0.5-2.0 HB 200-280 500-1100 0.1-0.25 Chamfer <0.5 Compacted graphite iron GCI 400-600 0.1-0.2 Hone 0.5-2.0 Co based > 35 HRc Ni based > 35 HRc Fe based > 35 HRc Cr based > 35 HRc 150-200 120-150 60-120 50-75 0.05-0.15 Chamfer <0.5 Hardened steels > 45 HRc 80-180 0.1-0.25 Chamfer 80-220 0.1-0.25 Chamfer <2 Hardened cast iron 80-200 0.1-0.15 Chamfer <2 Bearing steel 180-220 0.05-0.25 Chamfer 180-220 0.1-0.15 Chamfer <2 Ferrous powder metal 150-300 0.1-0.15 Chamfer 250-360 0.1-0.15 Chamfer Recommended Cutting Conditions for ADKT 1505R8T-FF Inserts Workpiece Material Carbide grade D.O.C. Ap mm Cutting speed Vc, m/min Feed per tooth fz, mm/tooth Coolant ISO class DIN/ISO 513 Description ISCAR Mat. Group Typical Representative Hardness, HB AISI/SAE/ ASTM DIN W.-Nr. p Non-alloy steel 1 1020 1.0402 130-180 IC928 1-1.5 100-150 0.8-1.5 Air IC808 1.5-2 100-170 0.7-1.3 Low alloy steel 8 4340 1.6582 260-300 IC928 1-1.5 100-150 0.8-1.5 Air IC808 1.5-2 0.5-1 9 3135 1.571 HRC 35-42 IC928 0.5-1.1 80-120 0.4-1 Air IC808 0.5-0.7 0.2-0.7 High alloy steel 10 H13 1.2344 200-220 IC928 0.7-1.5 100-150 0.6-1.1 Air IC808 Martensitic stainless steel 12 420 1.4021 200 IC928 0.5-1.5 80-120 0.4-0.8 Air IC330 M Austenitic stainless steel 14 304L 1.4306 200 IC928 0.5-1 80-100 0.3-0.7 Air IC330 316L 1.4404 140 IC928 0.5-1 80-100 0.3-0.6 IC330 K Grey cast iron 16 Class 40 0.6025 (GG25) 250 IC928 1-1.5 150-220 1-1.5 Air Nodular cast iron 17 Class 65-45-12 0.7050 (GGG50) 200 IC928 1-1.5 100-160 1-1.5 S High temperature alloys 34 Inconel 718 2.4668 340 IC928 0.5-1 20-30 0.1-0.2 Wet (emilsion) 37 AMS R56400 3.7165 (Ti6Al4V) HRC 40-45 IC928 0.5-1 22-45 0.4-0.6 ISCAR material grpoup in accordance Quenched and tempered The data refer to W.O.C. no more than with VDI 3323 standard 0.7xD and a cutter overhang to 2xD, where D - the cutter diameter K S 466 ISCAR
