1007 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.1003

Каталог ISCAR 2017 Ротационный инструмент Стр. 1003 1007 ENG Lab2u

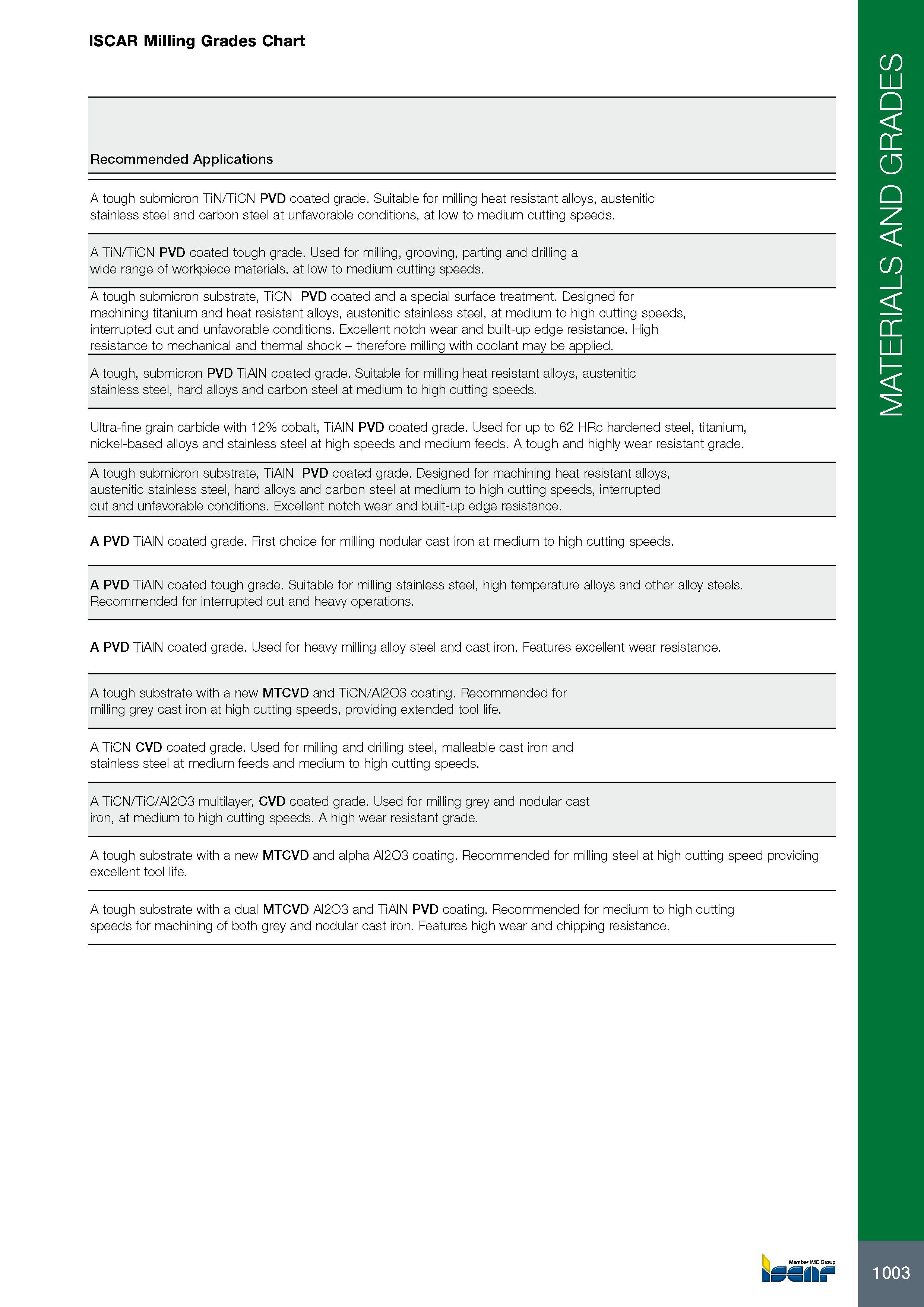

ISCAR Milling Grades Chart Recommended Applications A tough submicron TiN/TiCN PVD coated grade. Suitable for milling heat resistant alloys, austenitic stainless steel and carbon steel at unfavorable conditions, at low to medium cutting speeds. A TiN/TiCN PVD coated tough grade. Used for milling, grooving, parting and drilling a wide range of workpiece materials, at low to medium cutting speeds. A tough submicron substrate, TiCN PVD coated and a special surface treatment. Designed for machining titanium and heat resistant alloys, austenitic stainless steel, at medium to high cutting speeds, interrupted cut and unfavorable conditions. Excellent notch wear and built-up edge resistance. High resistance to mechanical and thermal shock - therefore milling with coolant may be applied. A tough, submicron PVD TiAlN coated grade. Suitable for milling heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds. Ultra-fine grain carbide with 12% cobalt, TiAlN PVD coated grade. Used for up to 62 HRc hardened steel, titanium, nickel-based alloys and stainless steel at high speeds and medium feeds. A tough and highly wear resistant grade. A tough submicron substrate, TiAlN PVD coated grade. Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavorable conditions. Excellent notch wear and built-up edge resistance. A PVD TiAlN coated grade. First choice for milling nodular cast iron at medium to high cutting speeds. A PVD TiAlN coated tough grade. Suitable for milling stainless steel, high temperature alloys and other alloy steels. Recommended for interrupted cut and heavy operations. A PVD TiAlN coated grade. Used for heavy milling alloy steel and cast iron. Features excellent wear resistance. A tough substrate with a new MTCVD and TiCN/Al2O3 coating. Recommended for milling grey cast iron at high cutting speeds, providing extended tool life. A TiCN CVD coated grade. Used for milling and drilling steel, malleable cast iron and stainless steel at medium feeds and medium to high cutting speeds. A TiCN/TiC/Al2O3 multilayer, CVD coated grade. Used for milling grey and nodular cast iron, at medium to high cutting speeds. A high wear resistant grade. A tough substrate with a new MTCVD and alpha Al2O3 coating. Recommended for milling steel at high cutting speed providing excellent tool life. A tough substrate with a dual MTCVD Al2O3 and TiAlN PVD coating. Recommended for medium to high cutting speeds for machining of both grey and nodular cast iron. Features high wear and chipping resistance. 1003 MATERIALS AND GRADES
