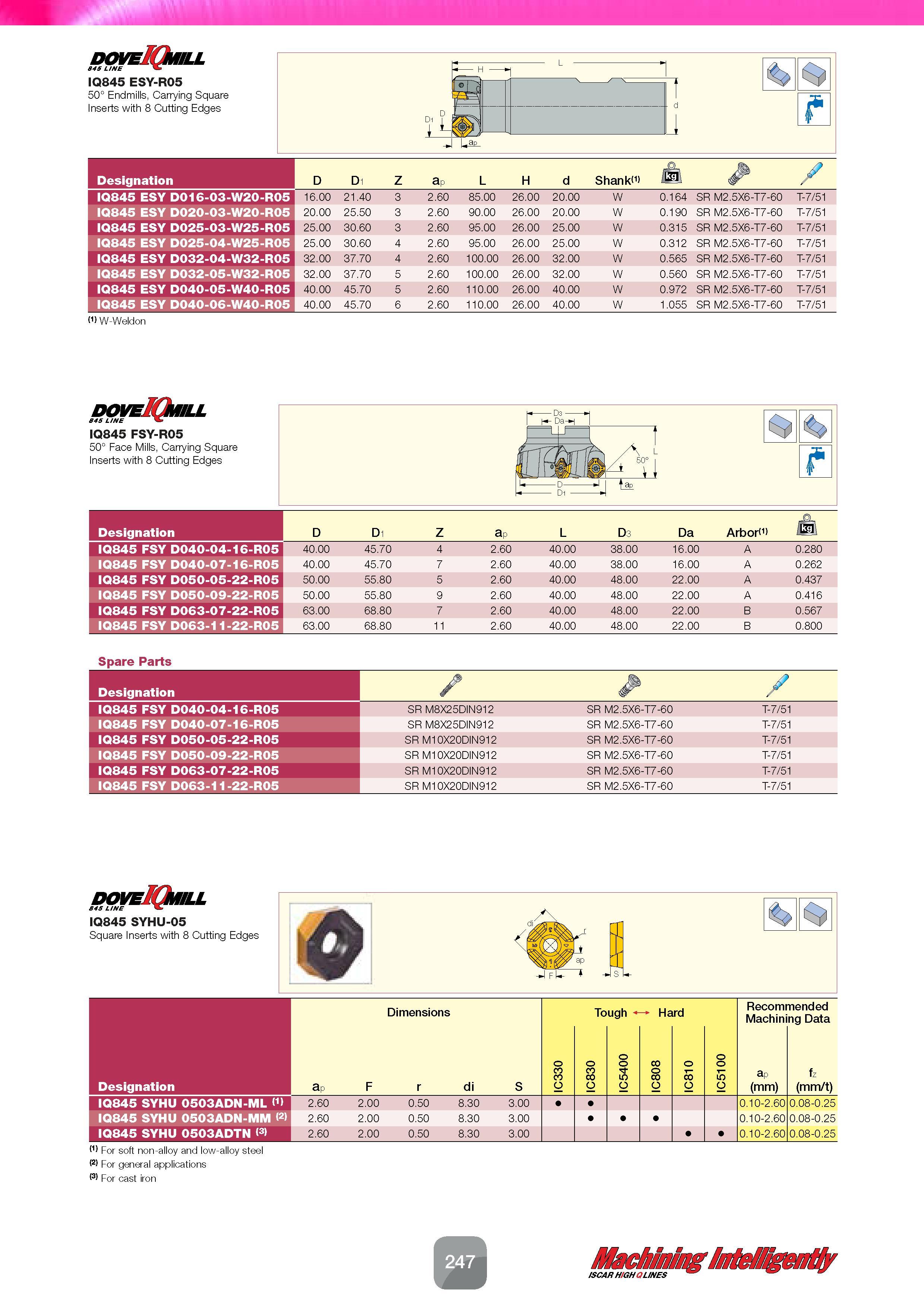

Designation D Di Z ap L H d Shanki1) /kg\ y IQ845 ESY D016-03-W20-R05 16.00 21.40 3 2.60 85.00 26.00 20.00 W 0.164 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D020-03-W20-R05 20.00 25.50 3 2.60 90.00 26.00 20.00 W 0.190 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D025-03-W25-R05 25.00 30.60 3 2.60 95.00 26.00 25.00 W 0.315 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D025-04-W25-R05 25.00 30.60 4 2.60 95.00 26.00 25.00 W 0.312 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D032-04-W32-R05 32.00 37.70 4 2.60 100.00 26.00 32.00 W 0.565 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D032-05-W32-R05 32.00 37.70 5 2.60 100.00 26.00 32.00 W 0.560 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D040-05-W40-R05 40.00 45.70 5 2.60 110.00 26.00 40.00 W 0.972 SR M2.5X6-T7-60 T-7/51 IQ845 ESY D040-06-W40-R05 40.00 45.70 6 2.60 110.00 26.00 40.00 W 1.055 SR M2.5X6-T7-60 T-7/51 W-Weldon doveBQmll 845 LINE IQ845 FSY-R05 50° Face Mills, Carrying Square Inserts with 8 Cutting Edges Designation D D1 Z ap L D3 Da Arbori1) /jkg\ IQ845 FSY D040-04-16-R05 40.00 45.70 4 2.60 40.00 38.00 16.00 A 0.280 IQ845 FSY D040-07-16-R05 40.00 45.70 7 2.60 40.00 38.00 16.00 A 0.262 IQ845 FSY D050-05-22-R05 50.00 55.80 5 2.60 40.00 48.00 22.00 A 0.437 IQ845 FSY D050-09-22-R05 50.00 55.80 9 2.60 40.00 48.00 22.00 A 0.416 IQ845 FSY D063-07-22-R05 63.00 68.80 7 2.60 40.00 48.00 22.00 B 0.567 IQ845 FSY D063-11-22-R05 63.00 68.80 11 2.60 40.00 48.00 22.00 B 0.800 Spare Parts Designation IQ845 FSY D040-04-16-R05 SR M8X25DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 FSY D040-07-16-R05 SR M8X25DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 FSY D050-05-22-R05 SR M10X20DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 FSY D050-09-22-R05 SR M10X20DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 FSY D063-07-22-R05 SR M10X20DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 FSY D063-11-22-R05 SR M10X20DIN912 SR M2.5X6-T7-60 T-7/51 IQ845 SYHU-05 Square Inserts with 8 Cutting Edges J F U- Dimensions Recommended Machining Data Designation ap F r di S IC330 IC830 IC IC808 IC810 1 IC ap (mm) fz (mm/t) IQ845 SYHU 0503ADN-ML (1) 2.60 2.00 0.50 8.30 3.00 0.10-2.60 0.08-0.25 IQ845 SYHU 0503ADN-MM (2) 2.60 2.00 0.50 8.30 3.00 0.10-2.60 0.08-0.25 IQ845 SYHU 0503ADTN (3) 2.60 2.00 0.50 8.30 3.00 0.10-2.60 0.08-0.25 (1) For soft non-alloy and low-alloy steel (2) For general applications (3) For cast iron S
