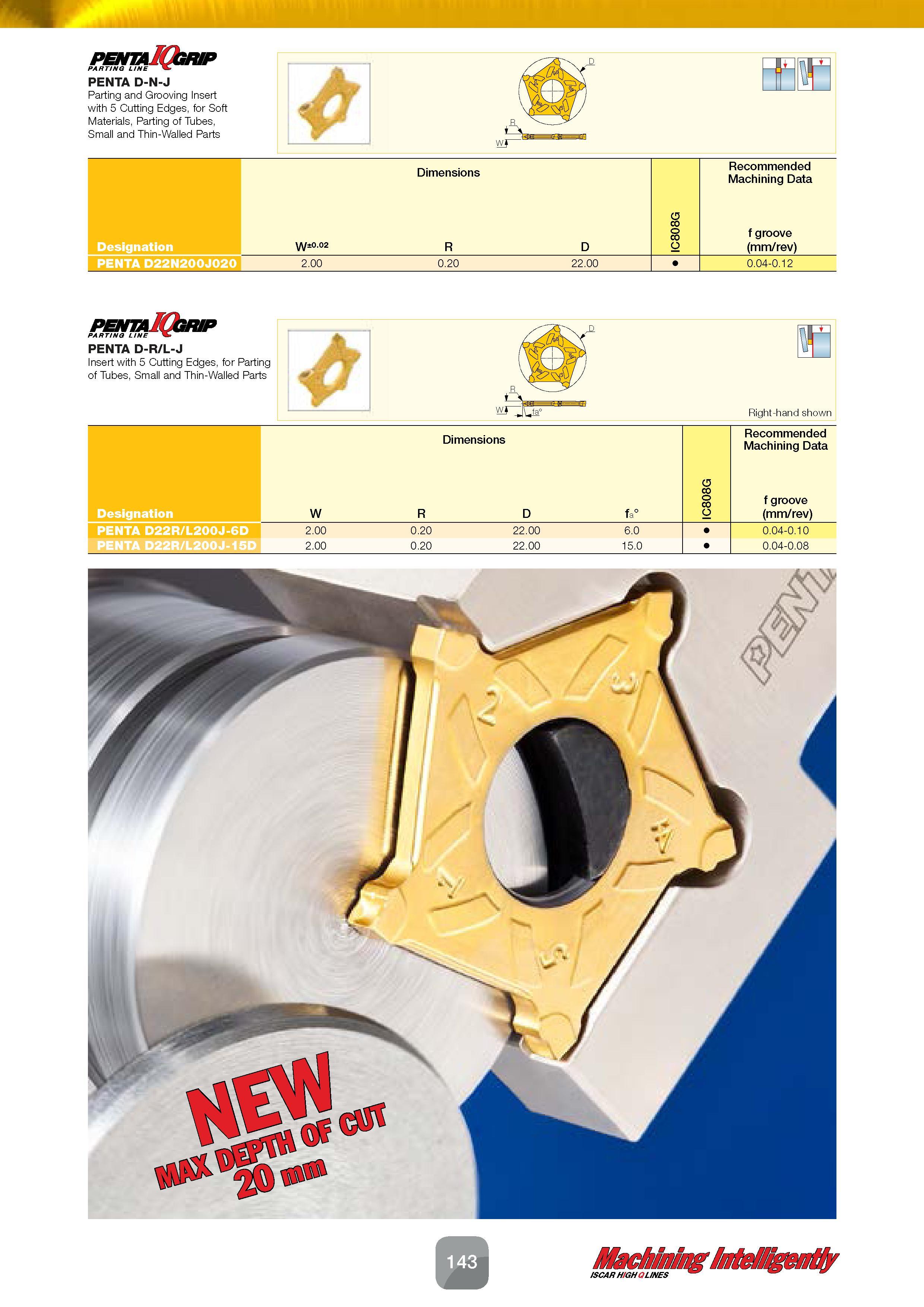

pentaIQsrip PARTING LINE PENTA D-N-J Parting and Grooving Insert with 5 Cutting Edges, for Soft Materials, Parting of Tubes, Small and Thin-Walled Parts H Dimensions W±002 D 2.00 0.20 22.00 G 8 0 8 C Recommended Machining Data f groove (mm/rev) 0.04-0.12 R Designation PENTA D22N200J020 pentaIQsrip PARTING LINE PENTA D-R/L-J Insert with 5 Cutting Edges, for Parting of Tubes, Small and Thin-Walled Parts Dimensions Recommended Machining Data Designation W R D fa° IC808G f groove (mm/rev) PENTA D22R/L200J-6D 2.00 0.20 22.00 6.0 0.04-0.10 PENTA D22R/L200J-15D 2.00 0.20 22.00 15.0 0.04-0.08
