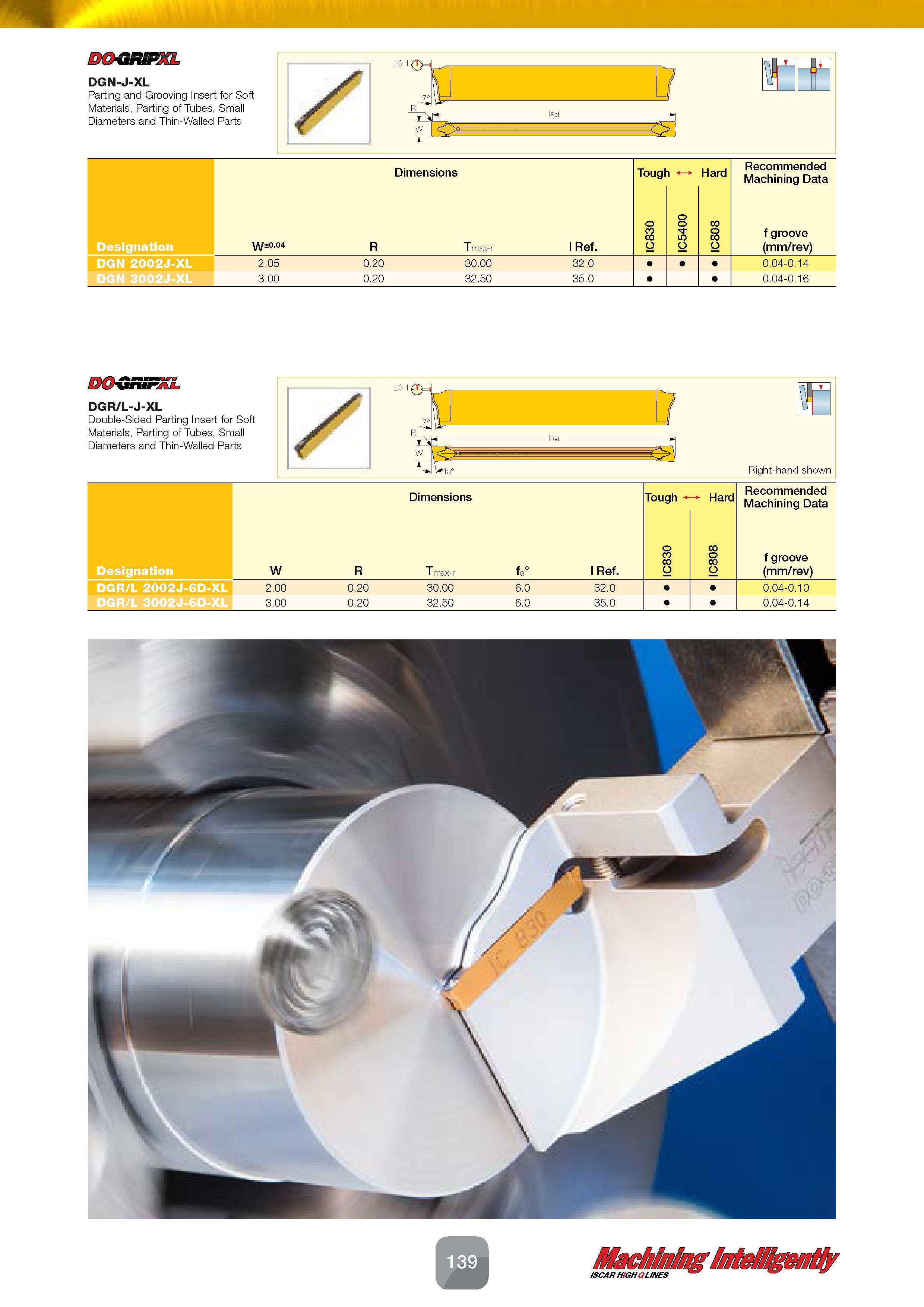

D&GniFXL DGN-J-XL Parting and Grooving Insert for Soft Materials, Parting of Tubes, Small Diameters and Thin-Walled Parts Dimensions Recommended Machining Data Designation W±0.04 R T max-r l Ref. IC830 IC5400 IC808 f groove (mm/rev) DGN 2002J-XL 2.05 0.20 30.00 32.0 0.04-0.14 DGN 3002J-XL 3.00 0.20 32.50 35.0 0.04-0.16 DOGffiffXL DGR/L-J-XL Double-Sided Parting Insert for Soft Materials, Parting of Tubes, Small Diameters and Thin-Walled Parts Dimensions Recommended Machining Data Designation W R Tmax-r fa° l Ref. IC830 IC808 f groove (mm/rev) DGR/L 2002J-6D-XL 2.00 0.20 30.00 6.0 32.0 0.04-0.10 DGR/L 3002J-6D-XL 3.00 0.20 32.50 6.0 35.0 0.04-0.14 /SCAR HGH LINES
