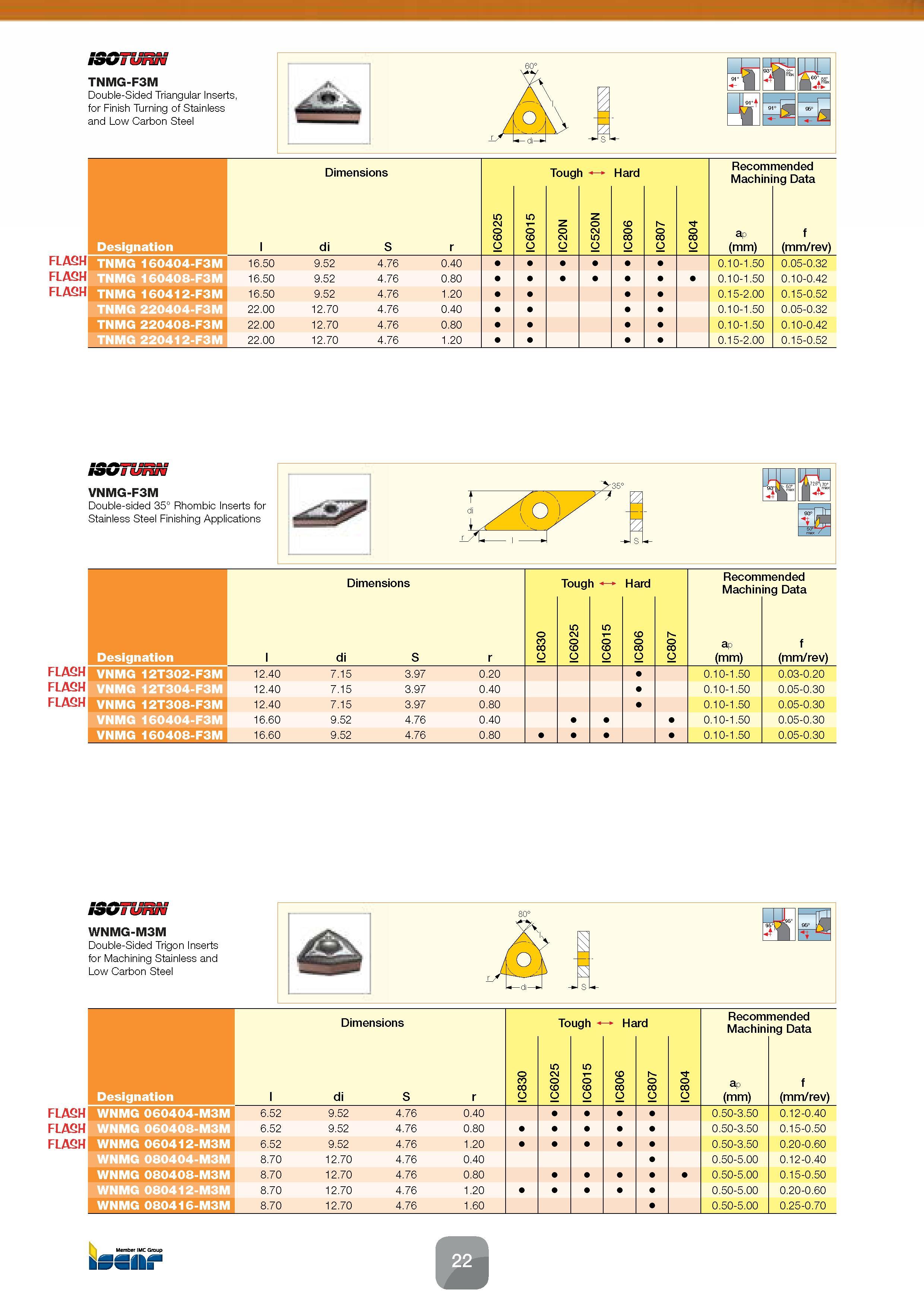

Double-Sided Triangular Inserts TNMG-F3M for Finish Turning of Stainless and Low Carbon Steel A hi F1 Dimensions Recommended Machining Data Desig

Double-Sided Triangular Inserts TNMG-F3M for Finish Turning of Stainless and Low Carbon Steel A hi F1 Dimensions Recommended Machining Data Designation l di S r IC6025 IC6015 IC20N IC520N IC806 IC807 IC804 ap (mm) f (mm/rev) TNMG 160404-F3M 16.50 9.52 4.76 0.40 0.10-1.50 0.05-0.32 TNMG 160408-F3M 16.50 9.52 4.76 0.80 0.10-1.50 0.10-0.42 TNMG 160412-F3M 16.50 9.52 4.76 1.20 0.15-2.00 0.15-0.52 TNMG 220404-F3M 22.00 12.70 4.76 0.40 0.10-1.50 0.05-0.32 TNMG 220408-F3M 22.00 12.70 4.76 0.80 0.10-1.50 0.10-0.42 TNMG 220412-F3M 22.00 12.70 4.76 1.20 0.15-2.00 0.15-0.52 FLASH VNMG-F3M Double-sided 35° Rhombic Inserts for Stainless Steel Finishing Applications Dimensions Recommended Machining Data Designation l di S r IC830 IC6025 IC6015 IC806 IC807 ap (mm) f (mm/rev) VNMG 12T302-F3M 12.40 7.15 3.97 0.20 0.10-1.50 0.03-0.20 VNMG 12T304-F3M 12.40 7.15 3.97 0.40 0.10-1.50 0.05-0.30 VNMG 12T308-F3M 12.40 7.15 3.97 0.80 0.10-1.50 0.05-0.30 VNMG 160404-F3M 16.60 9.52 4.76 0.40 0.10-1.50 0.05-0.30 VNMG 160408-F3M 16.60 9.52 4.76 0.80 0.10-1.50 0.05-0.30 FLASH WNMG-M3M Double-Sided Trigon Inserts for Machining Stainless and Low Carbon Steel Dimensions Recommended Machining Data Designation l di S r IC830 IC6025 IC6015 IC806 0 8 IC IC804 ap (mm) f (mm/rev) WNMG 060404-M3M 6.52 9.52 4.76 0.40 0.50-3.50 0.12-0.40 WNMG 060408-M3M 6.52 9.52 4.76 0.80 0.50-3.50 0.15-0.50 WNMG 060412-M3M 6.52 9.52 4.76 1.20 0.50-3.50 0.20-0.60 WNMG 080404-M3M 8.70 12.70 4.76 0.40 0.50-5.00 0.12-0.40 WNMG 080408-M3M 8.70 12.70 4.76 0.80 0.50-5.00 0.15-0.50 WNMG 080412-M3M 8.70 12.70 4.76 1.20 0.50-5.00 0.20-0.60 WNMG 080416-M3M 8.70 12.70 4.76 1.60 0.50-5.00 0.25-0.70 FLASH Member IMC Group
