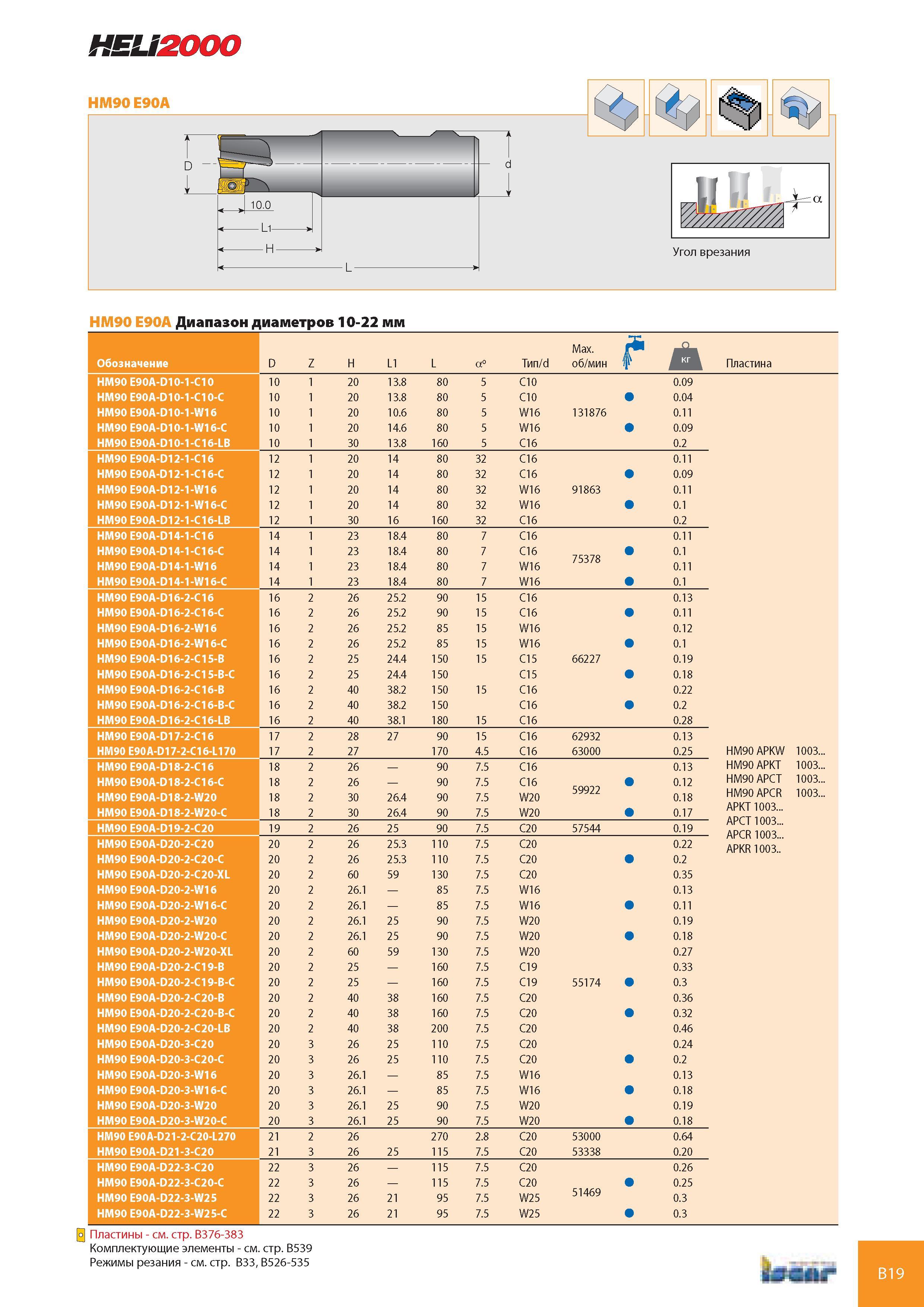

60 Каталог ISCAR 2008 Металлорежущий вращающийся инструмент и станочная оснастка Стр.B19

Каталог ISCAR 2008 Вращающийся инструмент Стр. B19 0060 Lab2u

HELI2000 HM90 E90A 10.0 L1 -H -d Угол врезания d L HM90 E90A Диапазон диаметров 10-22 мм Обозначение D Z H L1 L а° Тип/d Max. об/мин м Пластина HM90 E90A-D10-1-C10 10 1 20 13.8 80 5 C10 0.09 HM90 E90A-D10-1-C10-C 10 1 20 13.8 80 5 C10 0.04 HM90 E90A-D10-1-W16 10 1 20 10.6 80 5 W16 131876 0.11 HM90 E90A-D10-1-W16-C 10 1 20 14.6 80 5 W16 0.09 HM90 E90A-D10-1-C16-LB 10 1 30 13.8 160 5 C16 0.2 HM90 E90A-D12-1-C16 12 1 20 14 80 32 C16 0.11 HM90 E90A-D12-1-C16-C 12 1 20 14 80 32 C16 0.09 HM90 E90A-D12-1-W16 12 1 20 14 80 32 W16 91863 0.11 HM90 E90A-D12-1-W16-C 12 1 20 14 80 32 W16 0.1 HM90 E90A-D12-1-C16-LB 12 1 30 16 160 32 C16 0.2 HM90 E90A-D14-1-C16 14 1 23 18.4 80 7 C16 0.11 HM90 E90A-D14-1-C16-C 14 1 23 18.4 80 7 C16 0.1 HM90 E90A-D14-1-W16 14 1 23 18.4 80 7 W16 75378 0.11 HM90 E90A-D14-1-W16-C 14 1 23 18.4 80 7 W16 0.1 HM90 E90A-D16-2-C16 16 2 26 25.2 90 15 C16 0.13 HM90 E90A-D16-2-C16-C 16 2 26 25.2 90 15 C16 0.11 HM90 E90A-D16-2-W16 16 2 26 25.2 85 15 W16 0.12 HM90 E90A-D16-2-W16-C 16 2 26 25.2 85 15 W16 0.1 HM90 E90A-D16-2-C15-B 16 2 25 24.4 150 15 C15 66227 0.19 HM90 E90A-D16-2-C15-B-C 16 2 25 24.4 150 C15 0.18 HM90 E90A-D16-2-C16-B 16 2 40 38.2 150 15 C16 0.22 HM90 E90A-D16-2-C16-B-C 16 2 40 38.2 150 C16 0.2 HM90 E90A-D16-2-C16-LB 16 2 40 38.1 180 15 C16 0.28 HM90 E90A-D17-2-C16 17 2 28 27 90 15 C16 62932 0.13 HM90 E90A-D17-2-C16-L170 17 2 27 170 4.5 C16 63000 0.25 HM90 APKW 1003... HM90 E90A-D18-2-C16 18 2 26 90 7.5 C16 0.13 HM90 APKT 1003... HM90 E90A-D18-2-C16-C 18 2 26 90 7.5 C16 0.12 HM90 APCT 1003... HM90 E90A-D18-2-W20 18 2 30 26.4 90 7.5 W20 59922 0.18 HM90 APCR 1003... HM90 E90A-D18-2-W20-C 18 2 30 26.4 90 7.5 W20 0.17 APKT 1003... П/ Г 1 АЛО HM90 E90A-D19-2-C20 19 2 26 25 90 7.5 C20 57544 0.19 APCI I003... APCR 1003... HM90 E90A-D20-2-C20 20 2 26 25.3 110 7.5 C20 0.22 /ЛГЧ-Г\ IUv/Э... APKR 1003.. HM90 E90A-D20-2-C20-C 20 2 26 25.3 110 7.5 C20 0.2 HM90 E90A-D20-2-C20-XL 20 2 60 59 130 7.5 C20 0.35 HM90 E90A-D20-2-W16 20 2 26.1 85 7.5 W16 0.13 HM90 E90A-D20-2-W16-C 20 2 26.1 85 7.5 W16 0.11 HM90 E90A-D20-2-W20 20 2 26.1 25 90 7.5 W20 0.19 HM90 E90A-D20-2-W20-C 20 2 26.1 25 90 7.5 W20 0.18 HM90 E90A-D20-2-W20-XL 20 2 60 59 130 7.5 W20 0.27 HM90 E90A-D20-2-C19-B 20 2 25 160 7.5 C19 0.33 HM90 E90A-D20-2-C19-B-C 20 2 25 160 7.5 C19 55174 0.3 HM90 E90A-D20-2-C20-B 20 2 40 38 160 7.5 C20 0.36 HM90 E90A-D20-2-C20-B-C 20 2 40 38 160 7.5 C20 0.32 HM90 E90A-D20-2-C20-LB 20 2 40 38 200 7.5 C20 0.46 HM90 E90A-D20-3-C20 20 3 26 25 110 7.5 C20 0.24 HM90 E90A-D20-3-C20-C 20 3 26 25 110 7.5 C20 0.2 HM90 E90A-D20-3-W16 20 3 26.1 85 7.5 W16 0.13 HM90 E90A-D20-3-W16-C 20 3 26.1 85 7.5 W16 0.18 HM90 E90A-D20-3-W20 20 3 26.1 25 90 7.5 W20 0.19 HM90 E90A-D20-3-W20-C 20 3 26.1 25 90 7.5 W20 0.18 HM90 E90A-D21-2-C20-L270 21 2 26 270 2.8 C20 53000 0.64 HM90 E90A-D21-3-C20 21 3 26 25 115 7.5 C20 53338 0.20 HM90 E90A-D22-3-C20 22 3 26 115 7.5 C20 0.26 HM90 E90A-D22-3-C20-C 22 3 26 115 7.5 C20 0.25 HM90 E90A-D22-3-W25 22 3 26 21 95 7.5 W25 51469 0.3 HM90 E90A-D22-3-W25-C 22 3 26 21 95 7.5 W25 0.3 Пластины - см. стр. B376-383 Комплектующие элементы - см. стр. B539 Режимы резания - см. стр. B33, B526-535 B19
