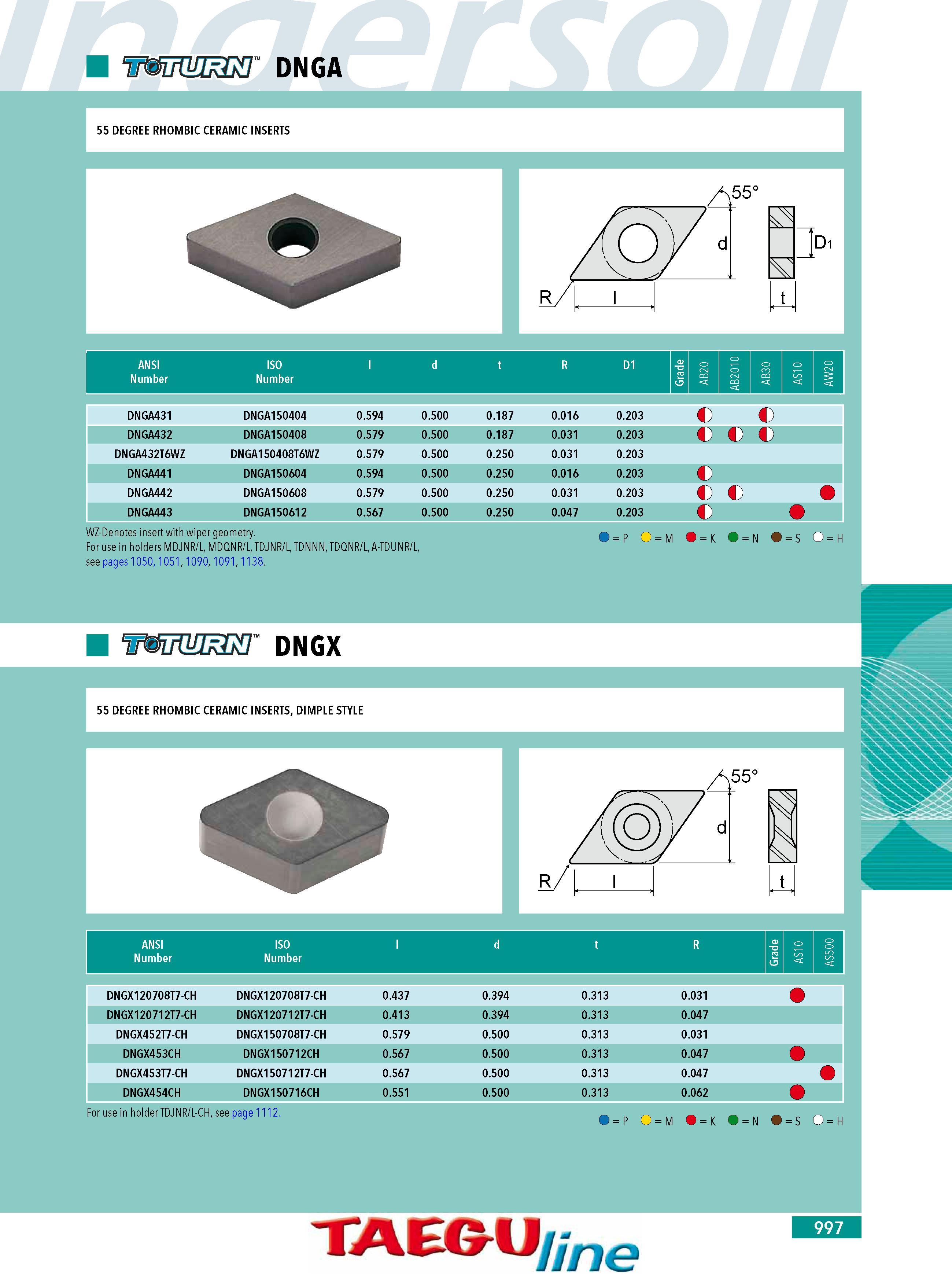

DNGA 55 DEGREE RHOMBIC CERAMIC INSERTS H t D ANSI Number ISO Number DNGA431 DNGA150404 0.594 0.500 0.187 0.016 0.203 C DNGA432 DNGA150408 0.579 0.500 0.187 0.031 0.203 c DNGA432T6WZ DNGA150408T6WZ 0.579 0.500 0.250 0.031 0.203 DNGA441 DNGA150604 0.594 0.500 0.250 0.016 0.203 DNGA442 DNGA150608 0.579 0.500 0.250 0.031 0.203 DNGA443 DNGA150612 0.567 0.500 0.250 0.047 0.203 WZ-Denotes insert with wiper geometry. For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L O P O M O K o N O S O H see pages 1050 1051 1090 1091 1138. vwmnia' dngx 55 DEGREE RHOMBIC CERAMIC INSERTS DIMPLE STYLE ANSI ISO d t R V a c 05 0 UO A Number Number DNGX120708T7-CH DNGX120708T7-CH 0.437 0.394 0.313 0.031 DNGX120712T7-CH DNGX120712T7-CH 0.413 0.394 0.313 0.047 DNGX452T7-CH DNGX150708T7-CH 0.579 0.500 0.313 0.031 DNGX453CH DNGX150712CH 0.567 0.500 0.313 0.047 DNGX453T7-CH DNGX150712T7-CH 0.567 0.500 0.313 0.047 DNGX454CH DNGX150716CH 0.551 0.500 0.313 0.062 For use in holder TDJNR L-CH see page 1112. O P K M S O H TAEOU ne d R D1
