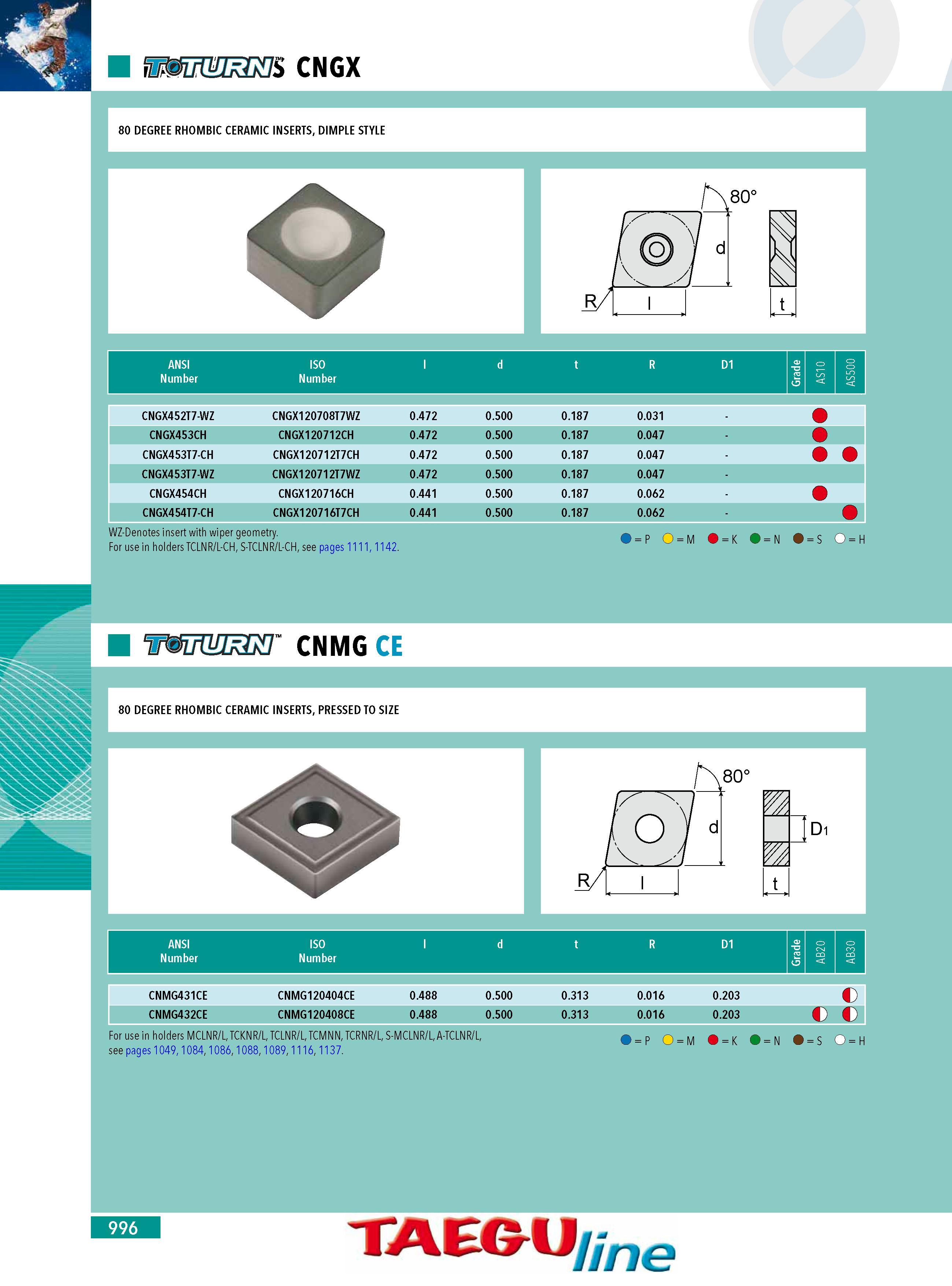

80 DEGREE RHOMBIC CERAMIC INSERTS DIMPLE STYLE ANSI ISO l d t R D1 e o Gr 0 uo A AS500 Number Number CNGX452T7-WZ CNGX120708T7WZ 0.472 0.500 0.187 0.031 - CNGX453CH CNGX120712CH 0.472 0.500 0.187 0.047 - CNGX453T7-CH CNGX120712T7CH 0.472 0.500 0.187 0.047 - CNGX453T7-WZ CNGX120712T7WZ 0.472 0.500 0.187 0.047 - CNGX454CH CNGX120716CH 0.441 0.500 0.187 0.062 - CNGX454T7-CH CNGX120716T7CH 0.441 0.500 0.187 0.062 - WZ-Denotes insert with wiper geometry. p p. M K N S p H For use in holders TCLNR L-CH S-TCLNR L-CH see pages 1111 1142. P M K N S H CNMG431CE CNMG120404CE 0.488 0.500 0.313 0.016 0.203 CNMG432CE CNMG120408CE 0.488 0.500 0.313 0.016 0.203 i) i) For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L p q M K N S O H see pages 1049 1084 1086 1088 1089 1116 1137. 996 TAEGU line
