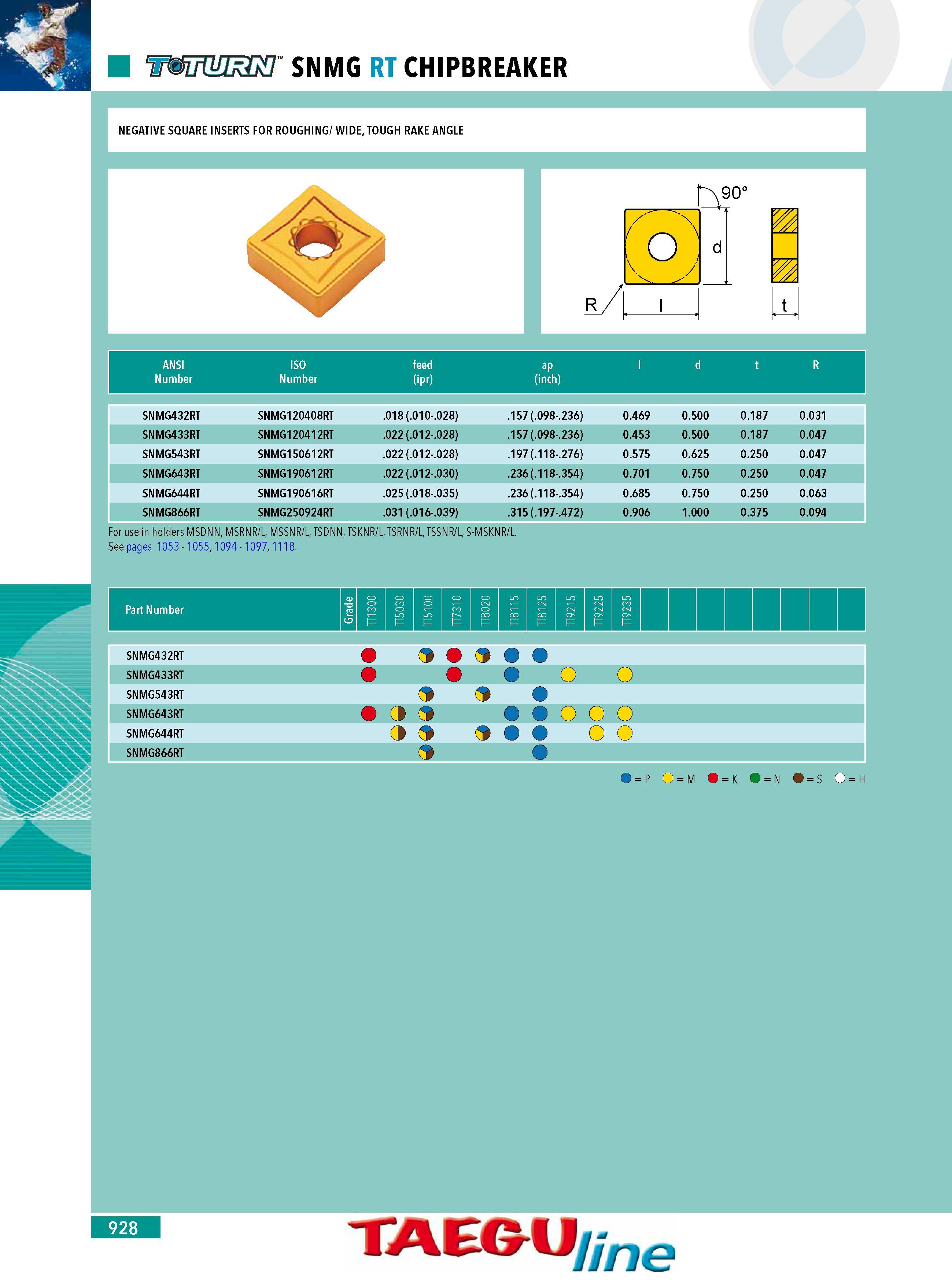

SNMG RT CHIPBREAKER NEGATIVE SQUARE INSERTS FOR ROUGHING WIDE TOUGH RAKE ANGLE ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG432RT SNMG120408RT .018 (.010-.028) .157 (.098-.236) 0.469 0.500 0.187 0.031 SNMG433RT SNMG120412RT .022 (.012-.028) .157 (.098-.236) 0.453 0.500 0.187 0.047 SNMG543RT SNMG150612RT .022 (.012-.028) .197 (.118-.276) 0.575 0.625 0.250 0.047 SNMG643RT SNMG190612RT .022 (.012-.030) .236 (.118-.354) 0.701 0.750 0.250 0.047 SNMG644RT SNMG190616RT .025 (.018-.035) .236 (.118-.354) 0.685 0.750 0.250 0.063 SNMG866RT SNMG250924RT .031 (.016-.039) .315 (.197-.472) 0.906 1.000 0.375 0.094 For use in holders MSDNN MSRNR L MSSNR L TSDNN TSKNR L TSRNR L TSSNR L S-MSKNR L. See pages 1053 - 1055 1094 - 1097 1118. 928 TAEGU line
