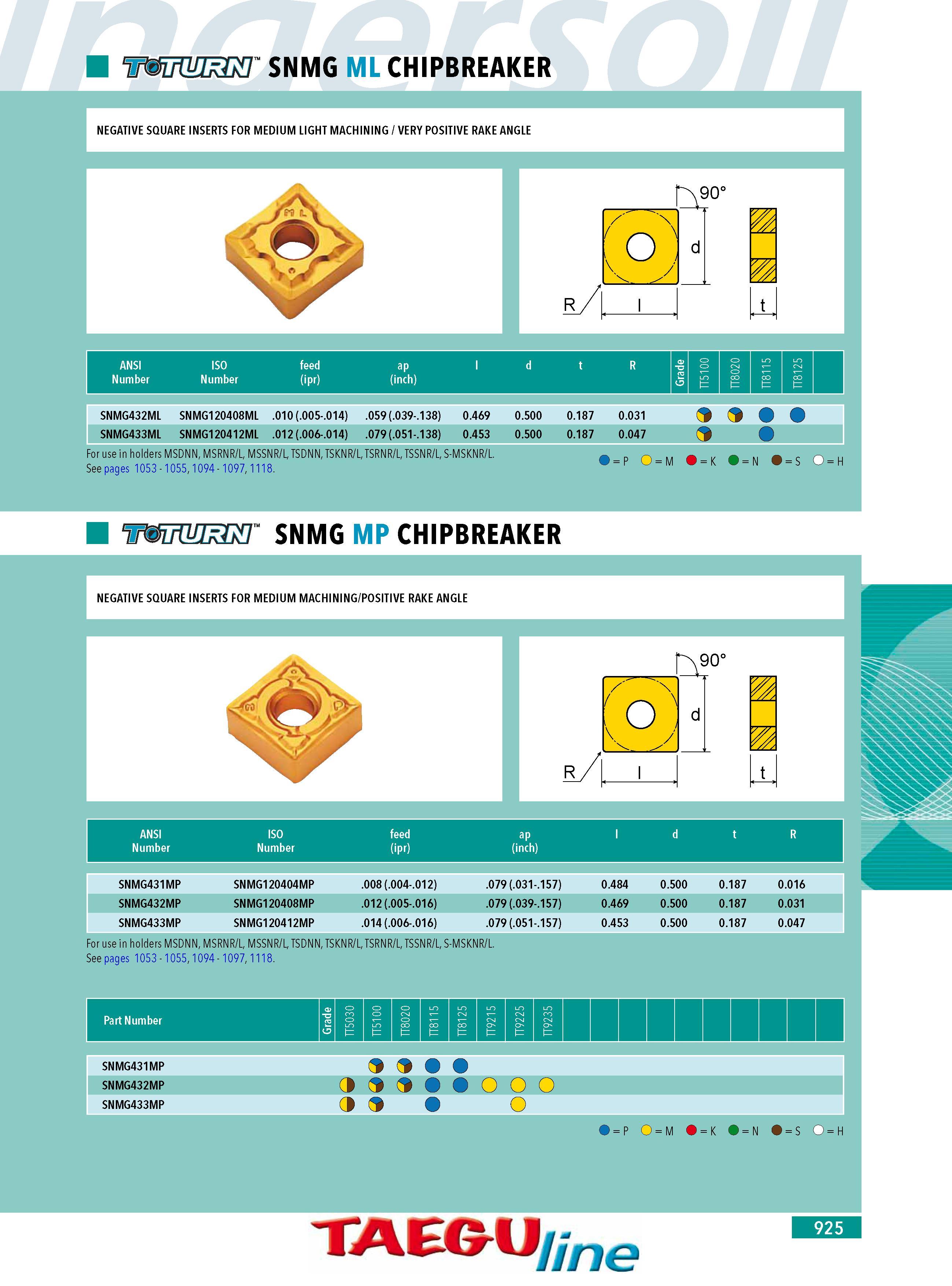

923 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.925

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 925 0923 Lab2u

snmg ml chipbreaker NEGATIVE SQUARE INSERTS FOR MEDIUM LIGHT MACHINING VERY POSITIVE RAKE ANGLE ANSI Number ISO Number SNMG432ML SNMG120408ML .010 (.005-.014) .059 (.039-.138) 0.469 0.500 0.187 0.031 3 0 0 SNMG433ML SNMG120412ML .012 (.006-.014) .079 (.051-.138) 0.453 0.500 0.187 0.047 9 feed (ipr) d R t ap (inch) For use in holders MSDNN MSRNR L MSSNR L TSDNN TSKNR L TSRNR L TSSNR L S-MSKNR L. See pages 1053 - 1055 1094 - 1097 1118. ) P O M O K N ) S O H cuWm EO' SNMG MP CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM MACHINING POSITIVE RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) SNMG431MP SNMG120404MP .008 (.004-.012) .079 (.031-.157) 0.484 0.500 0.187 0.016 SNMG432MP SNMG120408MP .012 (.005-.016) .079 (.039-.157) 0.469 0.500 0.187 0.031 SNMG433MP SNMG120412MP .014 (.006-.016) .079 (.051-.157) 0.453 0.500 0.187 0.047 For use in holders MSDNN MSRNR L MSSNR L TSDNN TSKNR L TSRNR L TSSNR L S-MSKNR L. See pages 1053 - 1055 1094 - 1097 1118. t e 0 0 0 5 5 5 5 5 s coo c- co r 5 5 8 8 8 9 9 9 G TT5 TT5 TT8 TT8 TT8 TT9 TT9 TT9 SNMG431MP 9 O SNMG432MP 3 9 o SNMG433MP 3 9 P O M O K O N O S O H TAEMJ ne -
