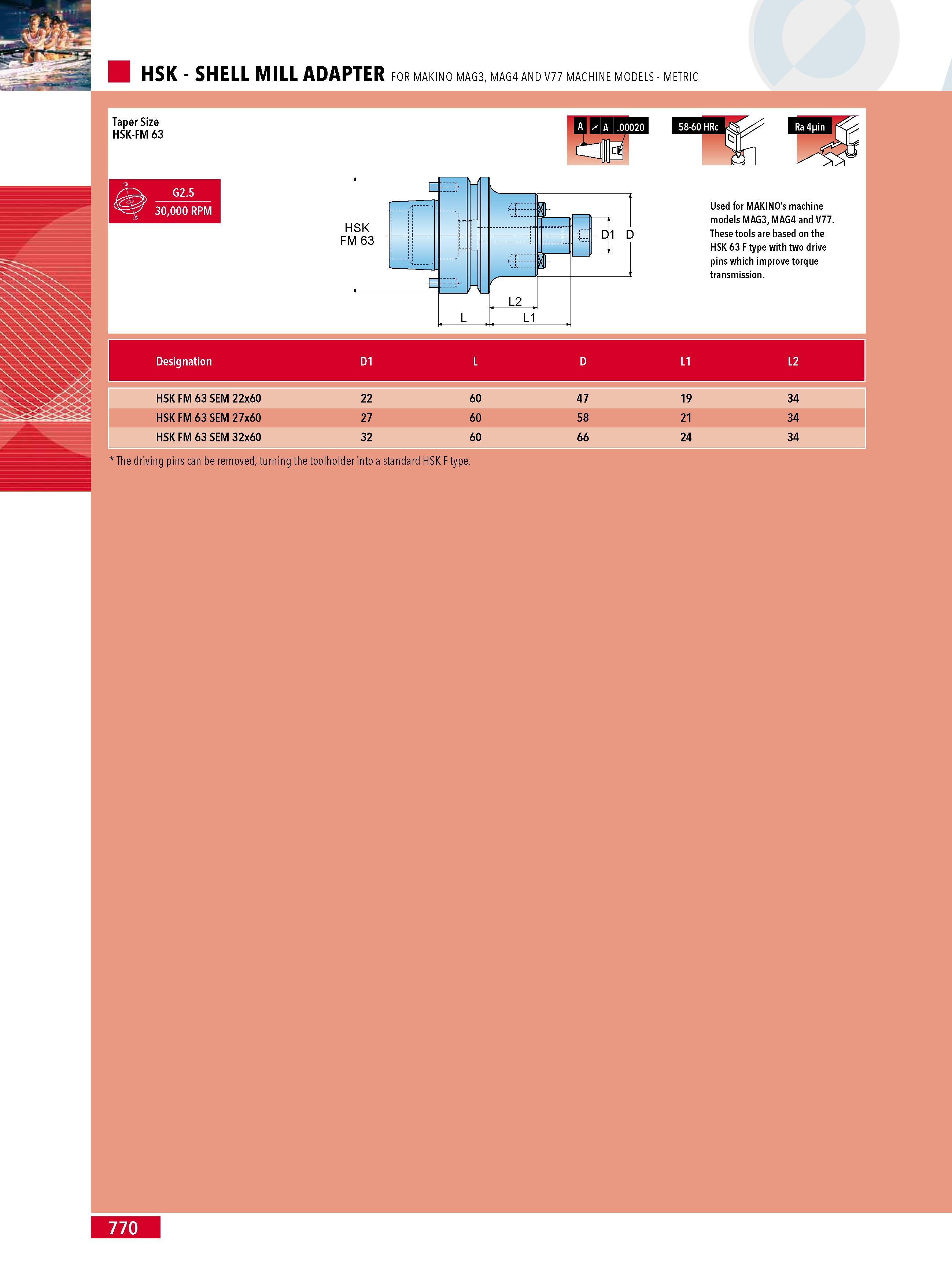

HSK - SHELL MILL ADAPTER FOR MAKINO MAG3 MAG4 AND V77 MACHINE MODELS - METRIC Taper Size HSK-FM 63 30000 RPM HSK FM 63 L2 L1 T D1 D Used for MAKINO's machine models MAG3 MAG4 and V77. These tools are based on the HSK 63 F type with two drive pins which improve torque transmission. HSK FM 63 SEM 22x60 HSK FM 63 SEM 27x60 HSK FM 63 SEM 32x60 22 27 32 60 60 60 47 58 66 19 21 24 34 34 34 The driving pins can be removed turning the toolholder into a standard HSK F type. L 770
